Technical data

4.2.1.2 5AP92D.1906-I00

4.2.1.2.1 General information
• Single-touch (analog, resistive), with fully laminated panel overlay (shatter protection)
• IP69K protection (front), IP66 protection (back)
• Front and housing made of stainless steel (hygienic design, no dirt-collecting edge)
• B&R panel overlay design, edge protection for the panel overlay
• Prepared for mounting on Rittal CP-S stainless steel swing arm system (flange not included in delivery)
• Rear USB interface with cover and anti-loss strap

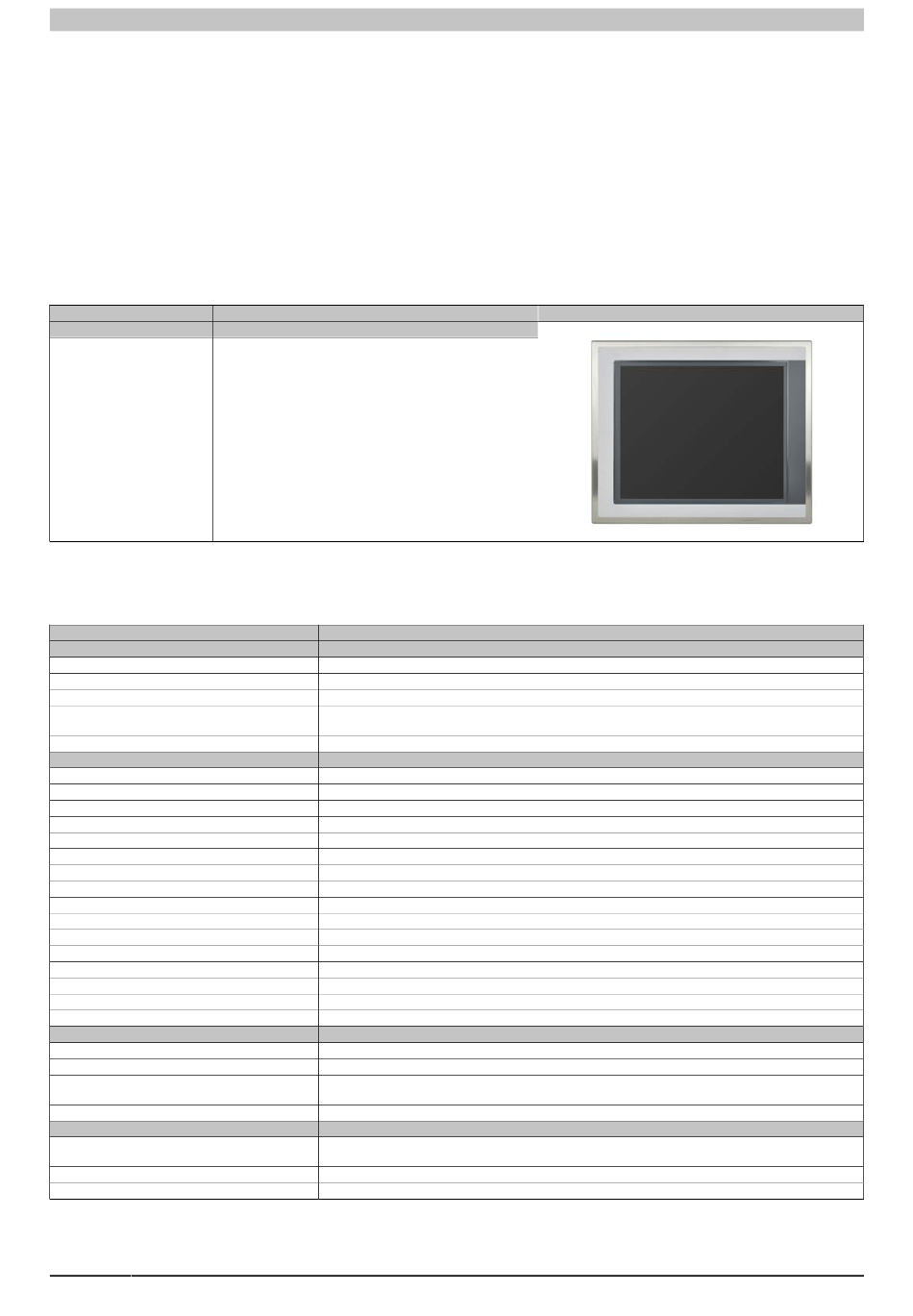

4.2.1.2.2 Order data
Model number Short description
Panels
5AP92D.1906-I00 - Automation Panel 19" SXGA TFT - Single-touch (analog, re-
sistive) - 1280 x 1024 pixels - Protection: IP69K (front), IP66
(back) - Front/Housing made of stainless steel (hygienic design)
- Prepared for mounting on Rittal CP-S stainless steel swing arm
system (flange not included in delivery) - USB port on back
4.2.1.2.3 Technical data
Model number
General information
B&R ID code
Certifications
CE
UL
EAC
Display
Type
Diagonal
Colors
Resolution
Contrast
Viewing angles
Horizontal
Vertical
Backlight
Type
Brightness
Half-brightness time
1)
Touch screen
Technology
Controller
Transmittance
Operating conditions
Pollution degree per EN 61131-2
Suitable for hygienic applications
Degree of protection per EN 60529
Degree of protection per UL 50
Mechanical properties
Note
Housing
Material
70
Table 9: 5AP92D.1906-I00 - Order data
The housing is designed for installation on a Rittal CP-
S stainless steel flange (CP6664.500 or CP6664.000)
Table 10: 5AP92D.1906-I00 - Technical data
5AP92D.1906-I00
0xF2A6
Yes
cULus E115267
Industrial control equipment
Yes
TFT color
19"
16.7 million
SXGA, 1280 x 1024 pixels
1500:1
Direction R / Direction L = 85°
Direction U / Direction D = 85°
LED
Typ. 35 to 350 cd/m²
70,000 h
Analog, resistive
B&R, serial, 12-bit
Up to 78%
Pollution degree 2
Yes
Back: IP66 (only with flange installed)
Front: IP69k
2)
Front: Type 4X indoor use only
Stainless steel 1.4301, smoothed
Automation Panel 9xD - Hygienic design User's manual V 1.80
Figure
