6.4 Display brightness control

In SDL, SDL3 or SDL4 operation, the brightness of the display can be configured using the B&R Control Center
on the connected B&R industrial PC, for example. In DVI operation, the brightness can only be controlled using
the two brightness controls provided on the SDL/DVI receiver.

6.4.1 Adjusting in SDL / SDL3 / SDL4 mode

1. Open Control Center in the Control Panel.
2. Select the Display tab.
3. Select the Automation Panel from the list.
4. Set the desired brightness using the slider.
Information:
The changed settings are displayed online but only applied by the system (and used after the next
restart) if the Control Center is exited with OK.
The configured brightness is independent of the value configured in BIOS Setup, i.e. the value set
in BIOS is used until Windows boots. The value set in BIOS is only applied the first time the Control
Center is launched.

6.4.2 Adjusting in DVI operation

1. Use the two brightness controls on the SDL/DVI receiver to set the brightness (for additional information, see
"SDL/DVI receiver (5DLSDL.1001-00)" on page
Automation Panel 9xD - Hygienic design User's manual V 1.80

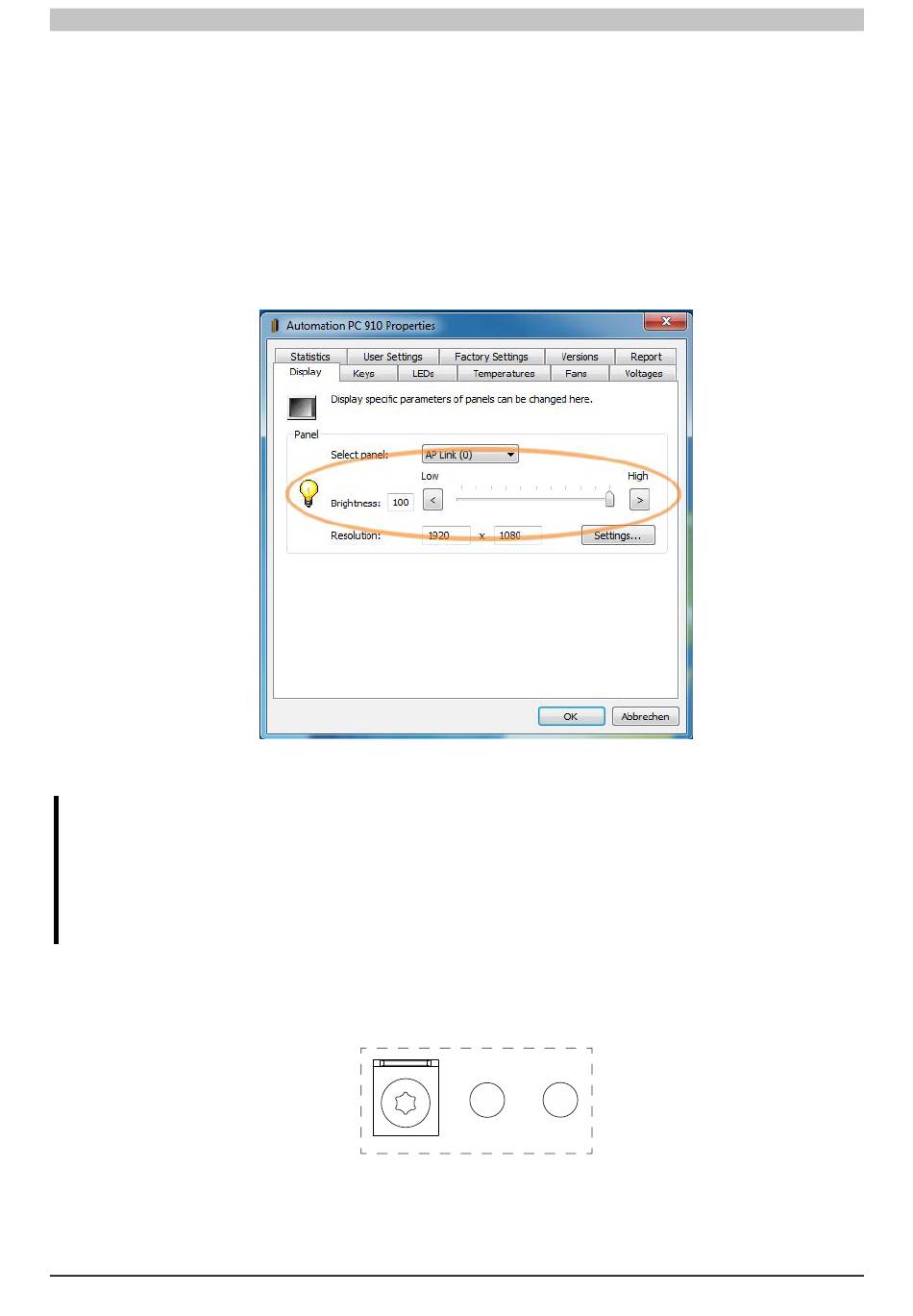

Figure 19: Adjusting the display brightness
