Technical data

4.2.2 Link modules

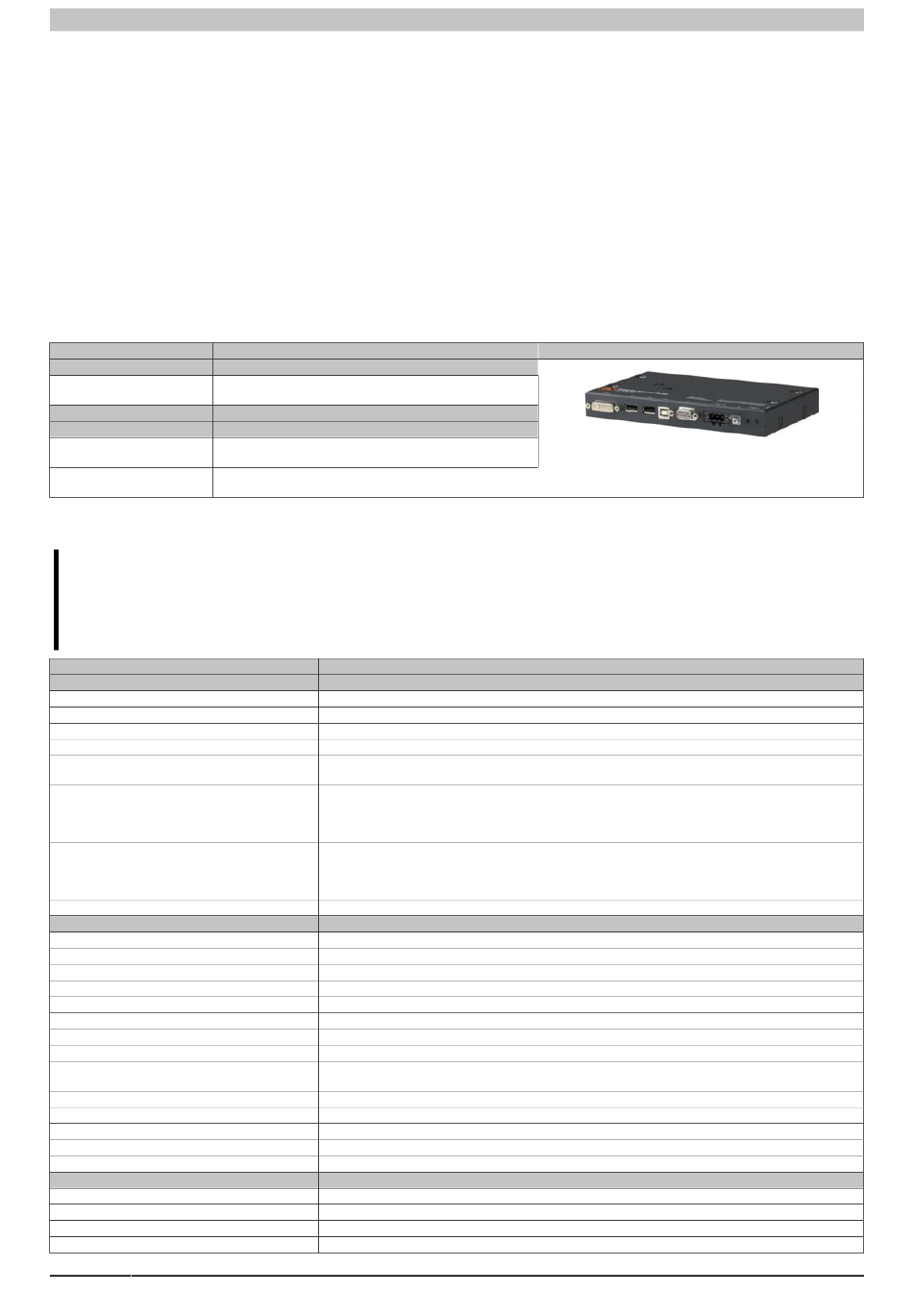

4.2.2.1 5DLSDL.1001-00

4.2.2.1.1 General information
• Link module for Automation Panel 9x3/1000/5000
• 1x SDL/DVI Panel In interface
• 2x USB 2.0 type A
• 1x USB In (USB type B)
• 1x RS232 interface
• Display brightness buttons
4.2.2.1.2 Order data
Model number Short description
Link modules
5DLSDL.1001-00 Automation Panel link module - SDL/DVI receiver - For Automa-
tion Panel 923/933/1000 - For Automation Panel 5000
Required accessories
Accessories
0TB103.9 Connector 24 VDC - 3-pin, female - Screw clamp terminal block
3.31 mm²
0TB103.91 Connector 24 VDC - 3-pin, female - Cage clamp terminal block
3.31 mm²
4.2.2.1.3 Technical data
Information:
The following specified characteristic data, features and limit values are only valid for these individual
components and may differ from those of the complete system. The data specified for the complete
system applies to the complete system in which this individual component is used, for example.
Model number
General information
B&R ID code
Brightness buttons
Certifications
CE
UL
HazLoc
DNV GL
3)
EAC
Interfaces
COM
Type
Variant
UART
Max. baud rate
USB
Quantity
Type
Variant
Transfer rate
Current-carrying capacity
Panel In
Variant
Type
Electrical properties
Nominal voltage
Nominal current
Overvoltage category per EN 61131-2
Galvanic isolation
84
5DLSDL.1001-00
0xE1A4
Yes
Yes
cULus E115267
Industrial control equipment
cULus HazLoc E180196
Industrial control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T4
Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: A (0.7 g)
EMC: B (bridge and open deck)
Product family certification
RS232, modem supported, not galvanically isolated
DSUB, 9-pin, female
16550-compatible, 16-byte FIFO buffer
115 kbit/s
3 (2x Type A; 1x Type B)
USB 2.0
2x type A
1x type B
Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
Total max. 1 A
DVI-D
SDL/DVI
24 VDC ±25%, SELV
Max. 3 A
Yes
Automation Panel 9xD - Hygienic design User's manual V 1.80
Figure
1)
2)
4)
5)
6)
7)
II
