4.1.6.2 AP93D - Features

Automation Panels 5AP93D.185B-B62
• Rear USB interface
4.1.6.2.1 USB interface
Panels are equipped with a rear USB 2.0 interface. This is equipped with a protective cover.
Caution!
IP66 protection can only be achieved if the USB protective cover is properly installed.
Warning!
USB peripheral devices can be connected to the USB interfaces. Due to the variety of USB devices
available on the market, B&R cannot guarantee their functionality. The functionality of USB devices
available from B&R is ensured.
Caution!
Due to the general PC specification, this interface must be handled with the utmost care with regard
to EMC, cable routing, etc.
The USB interface is available to the user for service purposes.
Information:
The USB interface on the panel takes up the USB2 interface on the link module. If the USB cable is
unplugged, the USB interface is disabled.
Depending on the transfer method (SDL or DVI operation), there are limitations regarding the transfer rate for
interfaces USB1 and USB2. For possible transfer methods, see section
Transfer method
SDL operation mode 1
SDL operation mode 2
Single-touch DVI operation
Multi-touch DVI operation
SDL3 operation
SDL4 operation
Automation Panel 9xD - Hygienic design User's manual V 1.80
and 5AP93D.240C-B62

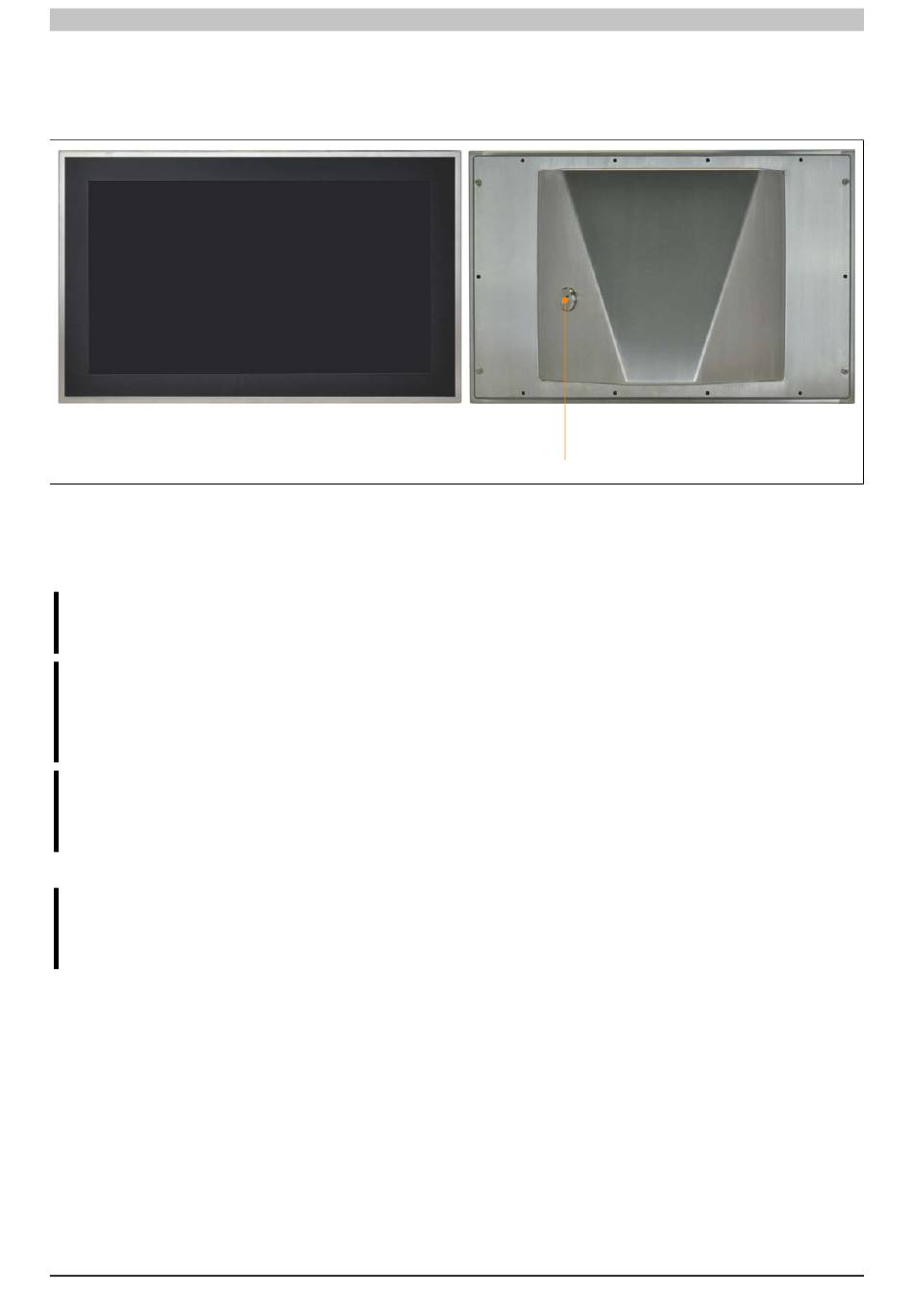

Figure 6: Front and rear view without operating elements (AP93D)
USB type Max. cable length
USB 1.1 40 m
USB 2.0 5 m
USB 2.0 5 m
USB 2.0 5 m
USB 2.0 100 m
USB 2.0 100 m
are equipped with the following interfaces:
1)
Connection options.
Technical data
