B&R Automation Panel 9 D Series User Manual page 81

4.2.1.6.4 Dimensions
Information:
2D and 3D diagrams (DXF and STEP formats) can be downloaded from the B&R website
automation.com).
Automation Panel 9xD - Hygienic design User's manual V 1.80
5.5
(4x)
507.2
411.6
64
128
380
321.49
253.9
80.6

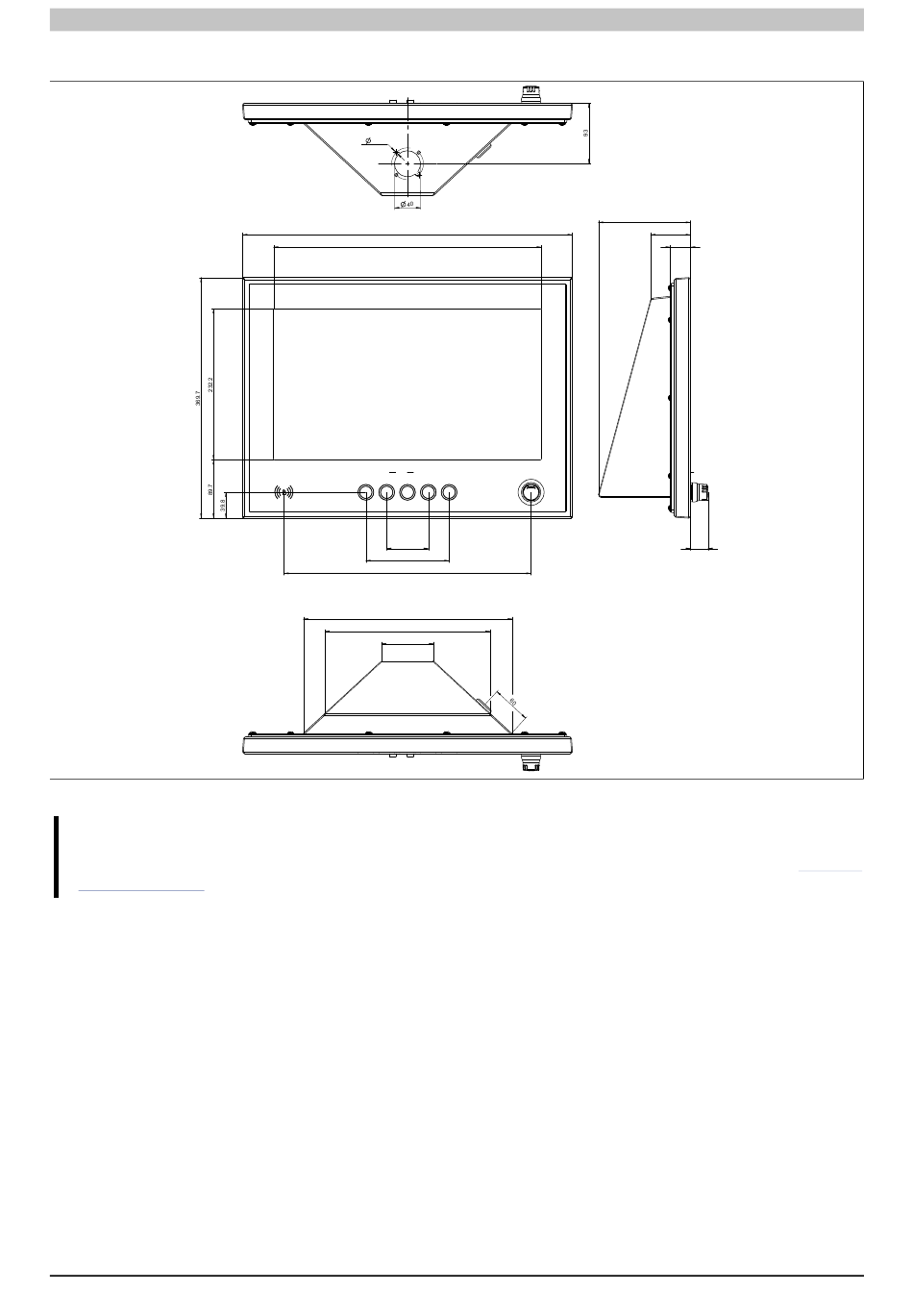

Figure 15: 5AP99D.185B-B62 - Dimensions
Technical data
141.6
61.53
31
26.75
(www.br-
81
