4.1.5.1.7 LED status indicators
Assignment
1) S5: Soft-off
S4: Hibernate (suspend-to-disk)
Automation Panel 9xD - Hygienic design User's manual V 1.80

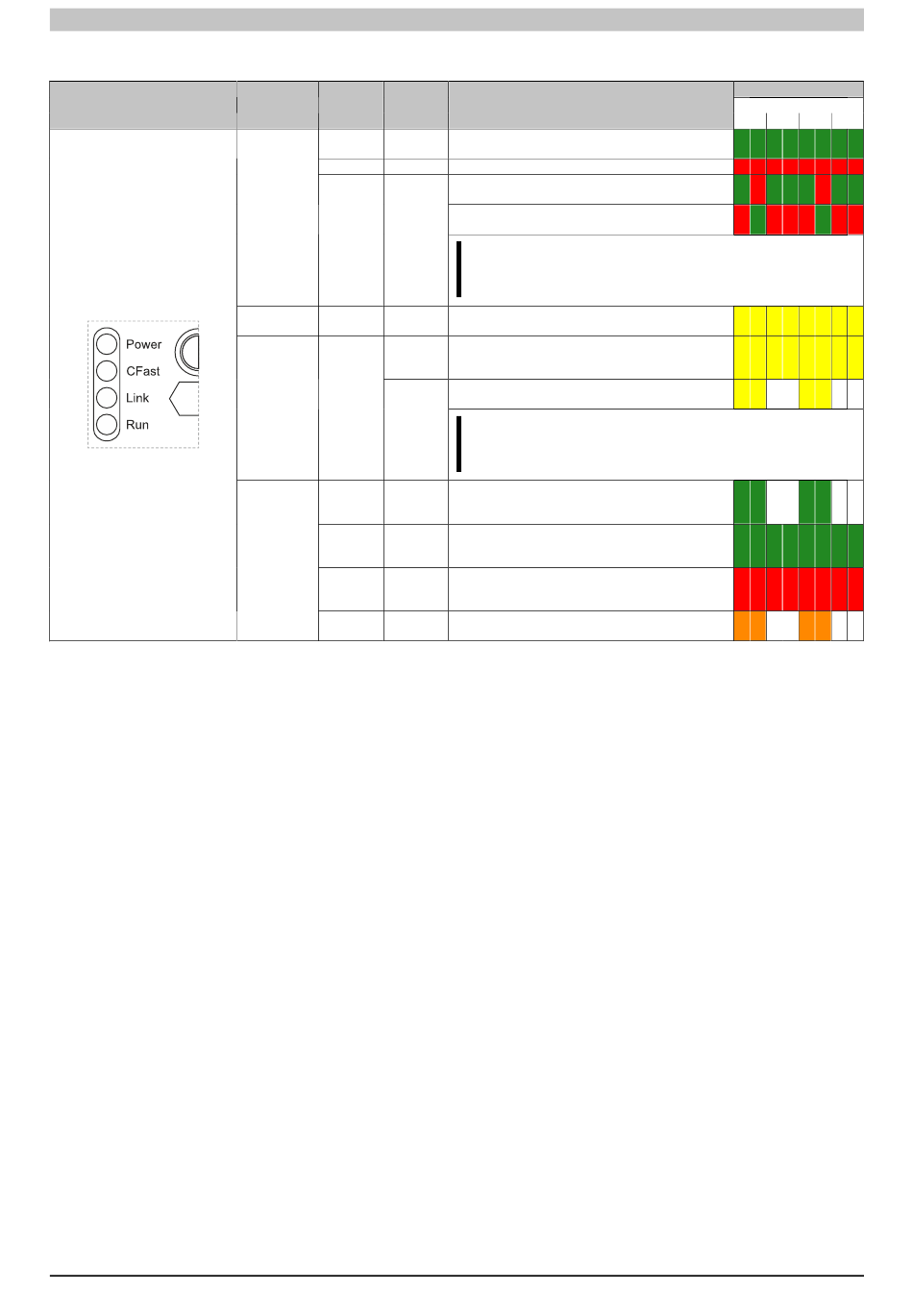

LED Color Status
Power Green On
Red On
Red-Green Blinking
Yellow On
Link
Yellow On
Blinking
Run Green Blinking
Green On
Red On
Orange Blinking
Explanation
Power supply OK
The system is in power saving mode (standby).
Faulty or incomplete BIOS, MTCX or I/O FPGA update,
power supply OK
Faulty or incomplete BIOS, MTCX or I/O FPGA up-
date, power saving mode (standby)
Information:
An update must be performed again.
Indicates CFast access
Indicates an active SDL connection on the panel con-
nector.
An active SDL connection was interrupted due to pow-
er loss of the panel.
Information:
Check the power supply or power connection of the connected panel.
Automation Runtime is starting up.
Controlled by Automation Runtime (ARemb and AR-
win).
Application running
Controlled by Automation Runtime (ARemb and AR-
win).
Application in SERVICE mode
Controlled by Automation Runtime (ARemb and AR-
win).
A license violation has occurred.
