4.1.1.1.2 SDL operation with USB cable (mode 2)
With this connection option, communication between the Automation Panel and B&R industrial PC takes place via
an SDL cable that is connected to interface "Panel In" and a USB type A/B cable that is connected to interface
"USB In".
Display data as well as information from the resistive touch screen keys, matrix keys, LEDs and service/diagnostic
data is transferred via the SDL cable. The touch screen data from the multi-touch screen is transferred via the
USB type A/B cable. The Automation Panel can be installed up to 5 m (USB specification) away from the B&R
industrial PC. USB 2.0 can be transferred over this distance via the USB type A/B cable. External adapter modules
are not required.
The brightness of the display can be set via the B&R Control Center, for example.
Availability of the interfaces on the Automation Panel with SDL/DVI receiver:
✓
Panel In
✓
USB1, USB2 USB 2.0
Maximum cable length: 5 m
Requirements
• Automation Panel with SDL/DVI receiver
• B&R industrial PC with SDL interface
• SDL cable, USB type A/B cable
Automation Panel 9xD - Hygienic design User's manual V 1.80

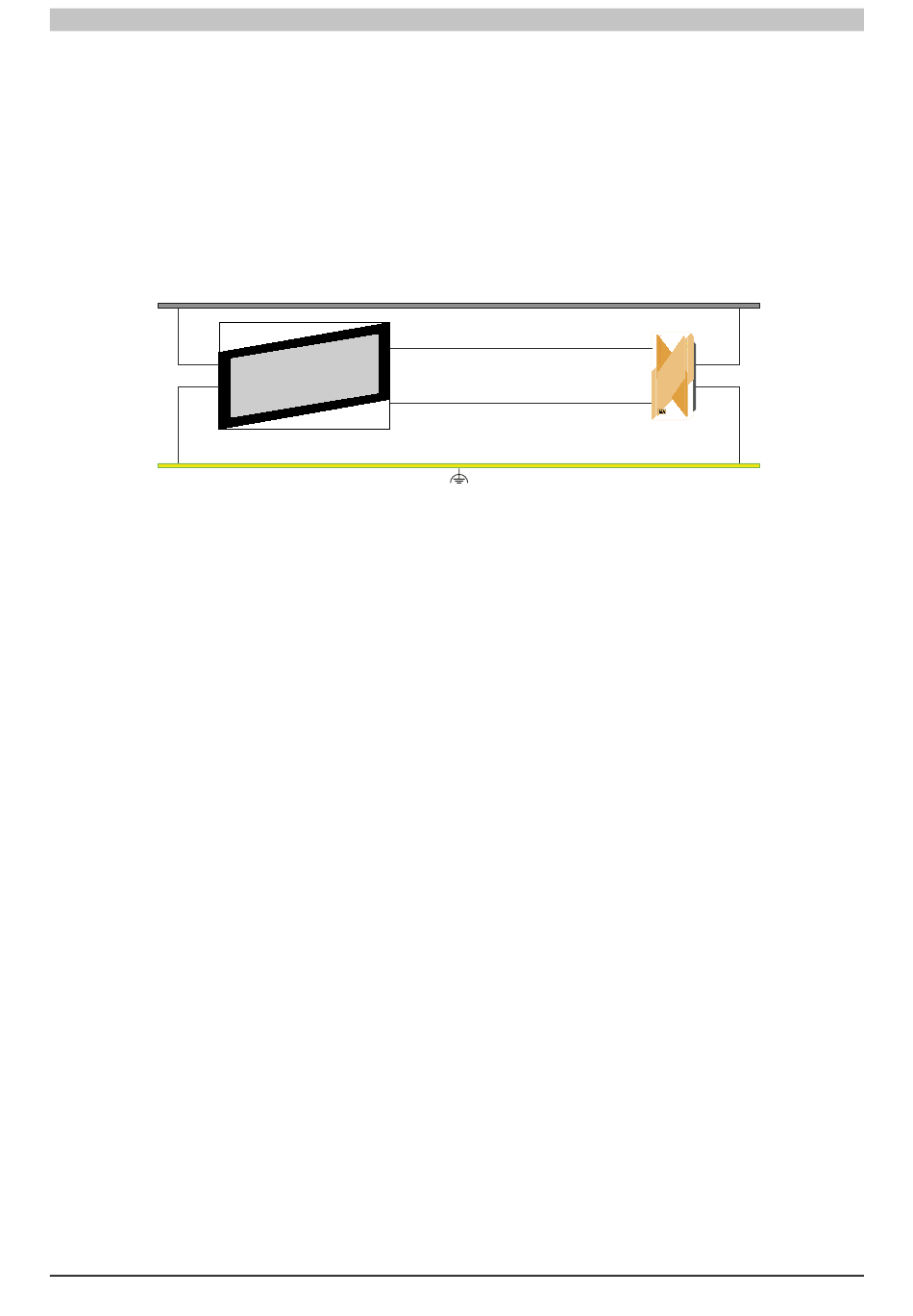

Power supply (SELV/PELV)
Automation Panel
with SDL/DVI receiver
✓
USB In USB 2.0
COM interface for touch x
screen
SDL cable
USB type A/B cable
B&R industrial PC
✓
Power supply
✓
Grounding
