Technical data

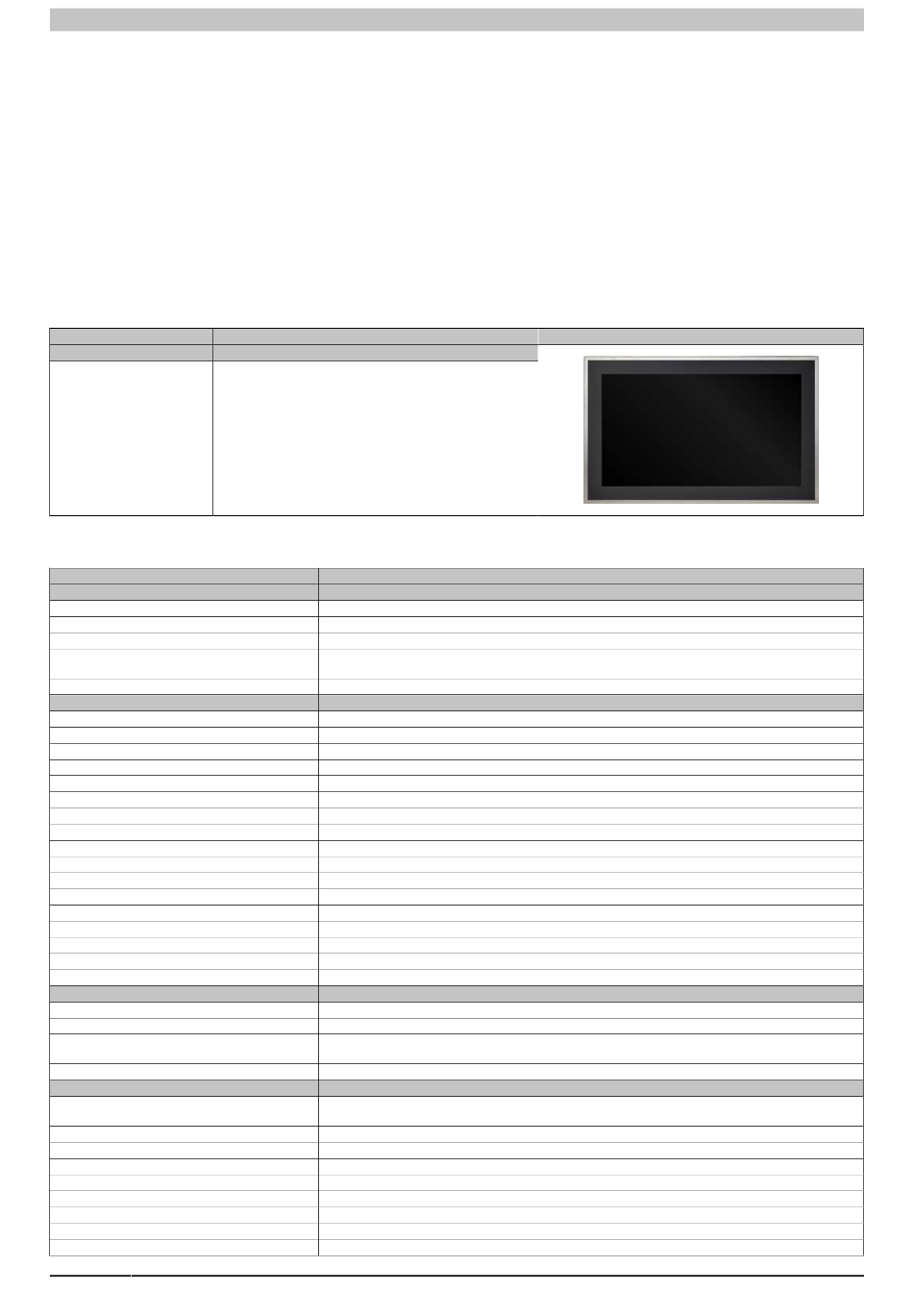

4.2.1.4 5AP93D.240C-B62

4.2.1.4.1 General information
• Multi-touch (projected capacitive); with fully-laminated panel overlay (shatter protection)
• IP69K protection (front), IP66 protection (back)
• Front and housing made of stainless steel (hygienic design, no dirt-collecting edge)
• B&R panel overlay design, edge protection for the panel overlay
• Prepared for mounting on Rittal CP-S stainless steel swing arm system (flange not included in delivery)
• Flange output possible on top or bottom
• Rear USB interface with cover and anti-loss strap
4.2.1.4.2 Order data
Model number Short description
Panels
5AP93D.240C-B62 - Automation Panel 24.0" Full HD TFT - Multi-touch (projected
capacitive) - 1920 x 1080 pixels (16:9) - Protection: IP69K (front),
IP66 (back) - Front/Housing made of stainless steel (hygienic
design) - Prepared for mounting on Rittal CP-S stainless steel
swing arm system (flange not included in delivery) - Flange pos-
sible on top or bottom - USB port on back
4.2.1.4.3 Technical data
Model number
General information
B&R ID code
Certifications
CE
UL
EAC
Display
Type
Diagonal
Colors
Resolution
Contrast
Viewing angles
Horizontal
Vertical
Backlight
Type
Brightness
Half-brightness time
1)
Touch screen
Type
Technology
Controller
Transmittance
Operating conditions
Pollution degree per EN 61131-2
Suitable for hygienic applications
Degree of protection per EN 60529
Degree of protection per UL 50
Mechanical properties
Note
Housing
Material
Front
Frame
Panel overlay
Material
Design
Gasket
74
5AP93D.240C-B62
$E8C3
Yes
cULus E115267
Industrial control equipment
Yes
TFT color
24.0"
16.7 million
FHD, 1920 x 1080 pixels
5000:1
Direction R / Direction L = 89°
Direction U / Direction D = 89°
LED
300 cd/m²
50,000 h
3M
Projected capacitive touch (PCT) (with shatter protection)
3M
>90%
Pollution degree 2
Yes
Back: IP66 (only with flange installed)
Front: IP69K
Front: Type 4X indoor use only
The housing is designed for installation on a Rittal CP-
S stainless steel flange (CP6664.500 or CP6664.000)
Stainless steel 1.4301, smoothed
Stainless steel 1.4301, smoothed
Polyester
B&R design
Silicone profile gasket between front and cover
Automation Panel 9xD - Hygienic design User's manual V 1.80
