Technical data

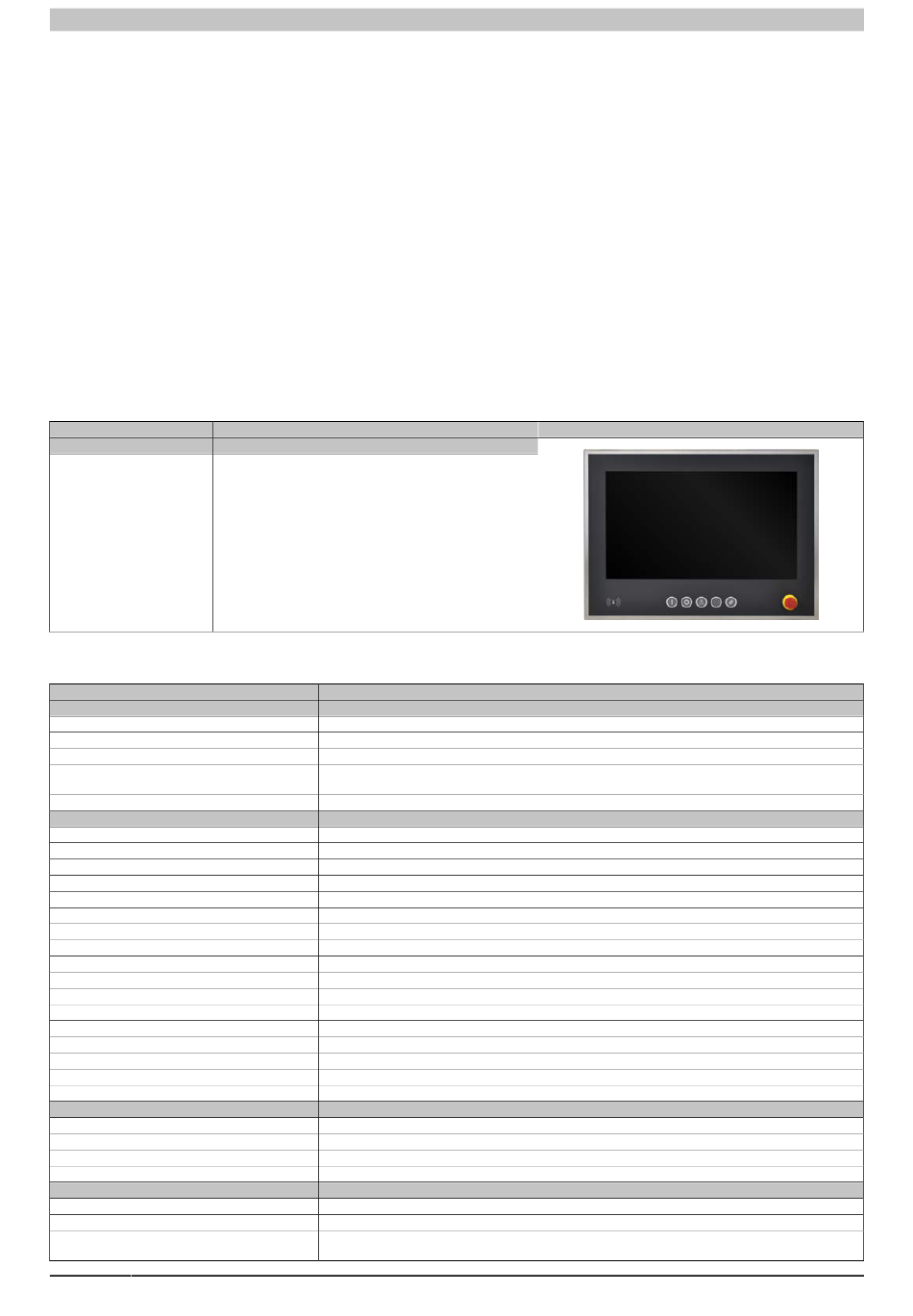

4.2.1.7 5AP99D.215C-B62

4.2.1.7.1 General information
• Multi-touch (projected capacitive); with fully-laminated panel overlay (shatter protection)
• Protection: IP69K (front), IP66 (back)
• Front/Housing made of stainless steel (hygienic design, no dirt-collecting edge)
• B&R panel overlay design, edge protection for the panel overlay
• Emergency stop, hygienic design
• 13.56 MHz read/write transponder unit, MIFARE Classic
• 2 prepared cutouts for optional operating elements (ø 22.5 mm)
• 5 B&R illuminated ring keys, 4-color (4x yellow, green, red, white and 1x yellow, green, red, blue)
• Prepared for mounting on Rittal CP-S stainless steel swing arm system (flange not included in delivery)
• Flange output possible on top or bottom
• Rear USB interface with cover and anti-loss strap
4.2.1.7.2 Order data
Model number Short description
Panels
5AP99D.215C-B62 - Automation Panel 21.5" Full HD TFT - Multi-touch (projected
capacitive) - 1920 x 1080 pixels (16:9) - Protection: IP69K (front),
IP66 (back) - Front/Housing made of stainless steel (hygienic
design) - Emergency stop, hygienic design - 5 B&R illuminated
ring keys, 4-color (4x yellow, green, red, white and 1x yellow,
green, red, blue) - Prepared for mounting on Rittal CP-S stain-
less steel swing arm system (flange not included in delivery) -
Flange possible on top or bottom - USB port on back - RFID
read/write unit
4.2.1.7.3 Technical data
Model number
General information
B&R ID code
Certifications
CE
UL
EAC
Display
Type
Diagonal
Colors
Resolution
Contrast
Viewing angles
Horizontal
Vertical
Backlight
Type
Brightness
Half-brightness time
1)
Touch screen
Type
Technology
Controller
Transmittance
Interfaces
RFID read/write transponder unit
Type
Frequency
Read/Write range in air
Keys
Illuminated ring keys
Illuminated ring keys
Color
82
5AP99D.215C-B62
$E8C6
Yes
cULus E115267
Industrial control equipment
Yes
TFT color
21.46"
16.7 million
FHD, 1920 x 1080 pixels
1000:1
Direction R / Direction L = 178°
Direction U / Direction D = 178°
LED
250 cd/m²
30,000 h
Projected capacitive touch (PCT) (with shatter protection)
>90%
For I-Code SLI transponder, amplitude modulation and MIFARE Classic
13.56 MHz
Approx. 1 to 3 cm
5x B&R illuminated ring keys
4x red, green, yellow, white
1x red, green, yellow, blue
Automation Panel 9xD - Hygienic design User's manual V 1.80
Figure
3M
3M
