– USING THE MACHINE –

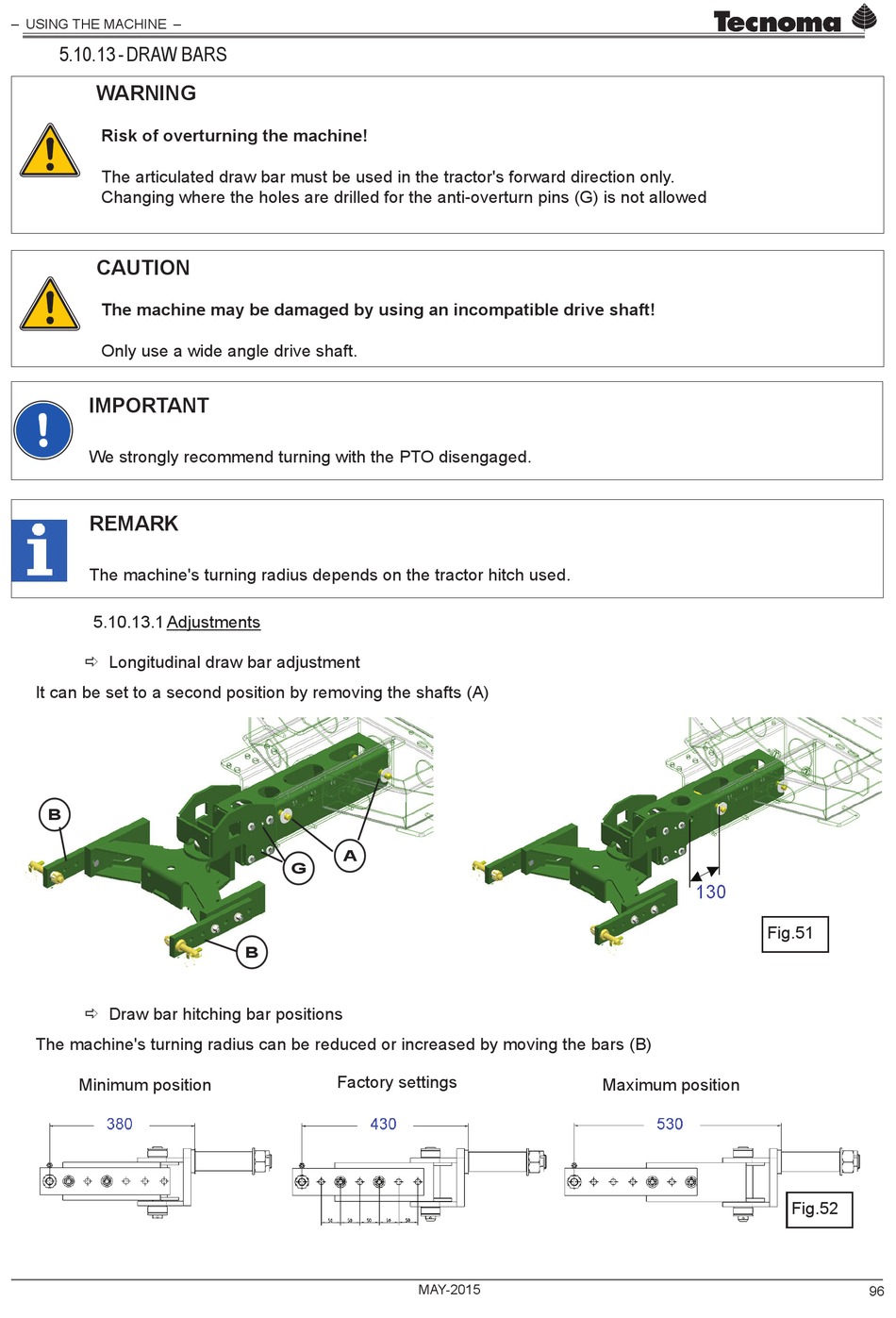

5.10.13 - DRAW BARS

WARNING
Risk of overturning the machine!
The articulated draw bar must be used in the tractor's forward direction only.
Changing where the holes are drilled for the anti-overturn pins (G) is not allowed
CAUTION
The machine may be damaged by using an incompatible drive shaft!
Only use a wide angle drive shaft.
IMPORTANT
We strongly recommend turning with the PTO disengaged.
REMARK
The machine's turning radius depends on the tractor hitch used.
5.10.13.1 Adjustments
Ö Longitudinal draw bar adjustment
It can be set to a second position by removing the shafts (A)
B
Ö Draw bar hitching bar positions
The machine's turning radius can be reduced or increased by moving the bars (B)
Minimum position
A
G
B
Factory settings
MAy-2015
Fig.51
Maximum position
Fig.52
96
