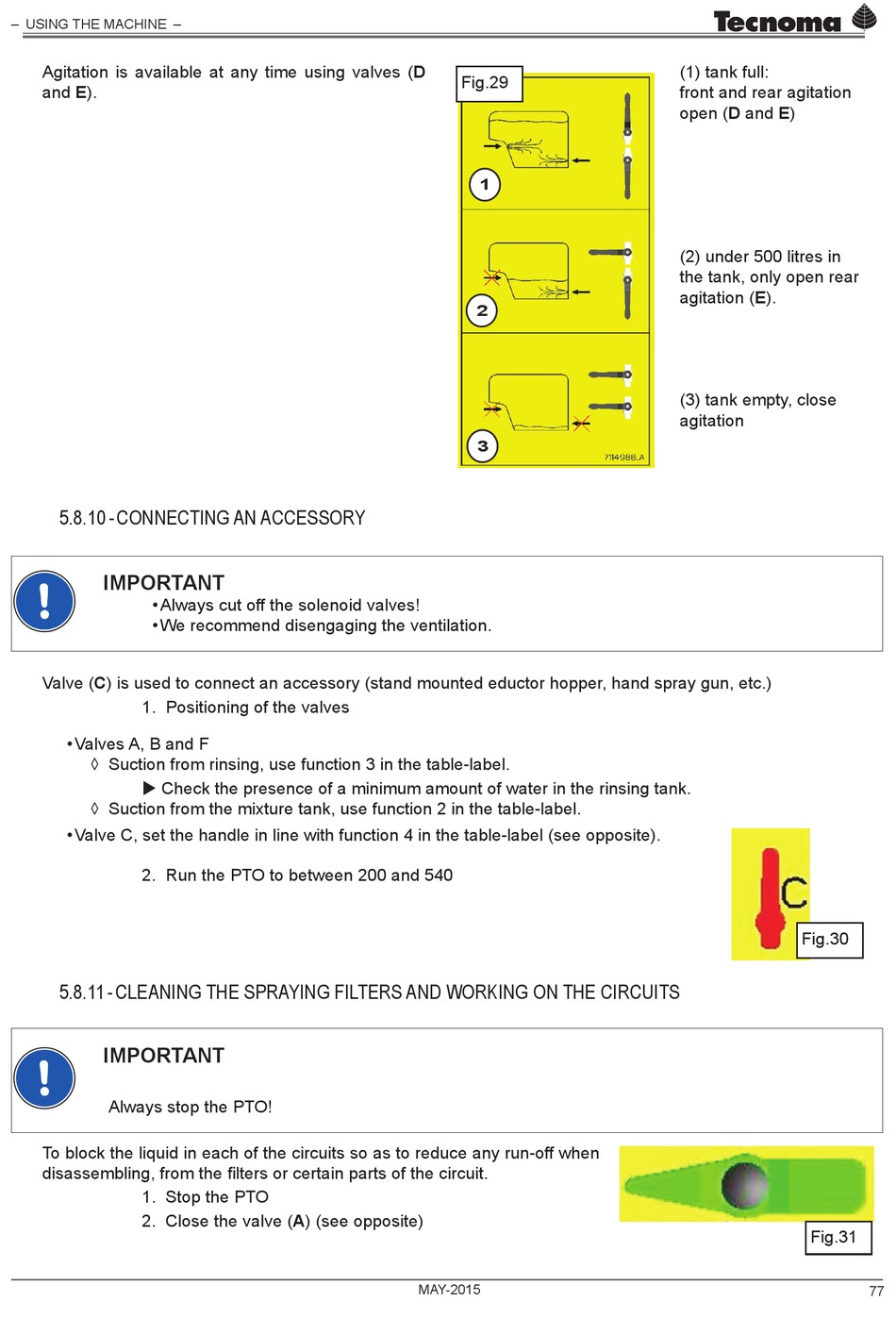

– USING THE MACHINE –
Agitation is available at any time using valves (D
and E).

5.8.10 - CONNECTING AN ACCESSORY

IMPORTANT
• Always cut off the solenoid valves!
• We recommend disengaging the ventilation.
Valve (C) is used to connect an accessory (stand mounted eductor hopper, hand spray gun, etc.)
1. Positioning of the valves
• Valves A, B and F
◊ Suction from rinsing, use function 3 in the table-label.
 Check the presence of a minimum amount of water in the rinsing tank.
◊ Suction from the mixture tank, use function 2 in the table-label.
• Valve C, set the handle in line with function 4 in the table-label (see opposite).
2. Run the PTO to between 200 and 540

5.8.11 - CLEANING THE SPRAYING FILTERS AND WORKING ON THE CIRCUITS

IMPORTANT
Always stop the PTO!
To block the liquid in each of the circuits so as to reduce any run-off when
disassembling, from the filters or certain parts of the circuit.
1. Stop the PTO
2. Close the valve (A) (see opposite)
Fig.29
1
2
3
MAy-2015
(1) tank full:
front and rear agitation
open (D and E)
(2) under 500 litres in
the tank, only open rear
agitation (E).
(3) tank empty, close
agitation
Fig.30
Fig.31
