– USING THE MACHINE –

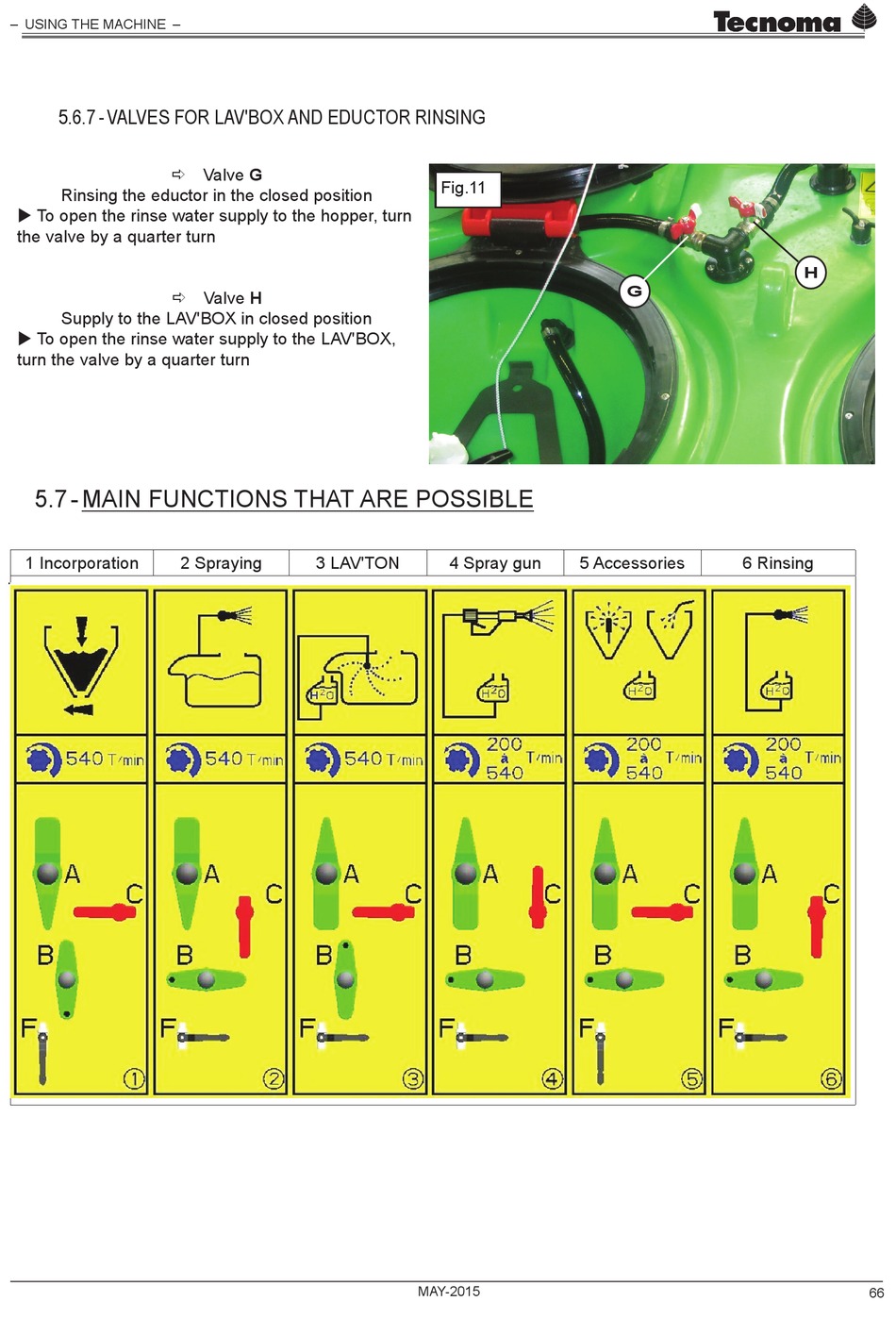

5.6.7 - VALVES FOR LAV'BOX AND EDUCTOR RINSING

Ö Valve G
Rinsing the eductor in the closed position
 To open the rinse water supply to the hopper, turn
the valve by a quarter turn
Ö Valve H
Supply to the LAV'BOX in closed position
 To open the rinse water supply to the LAV'BOX,
turn the valve by a quarter turn

5.7 - MAIN FUNCTIONS THAT ARE POSSIBLE

1 Incorporation
2 Spraying
3 LAV'TON
Fig.11
4 Spray gun
5 Accessories
MAy-2015
G
6 Rinsing
H
66
