– USING THE MACHINE –

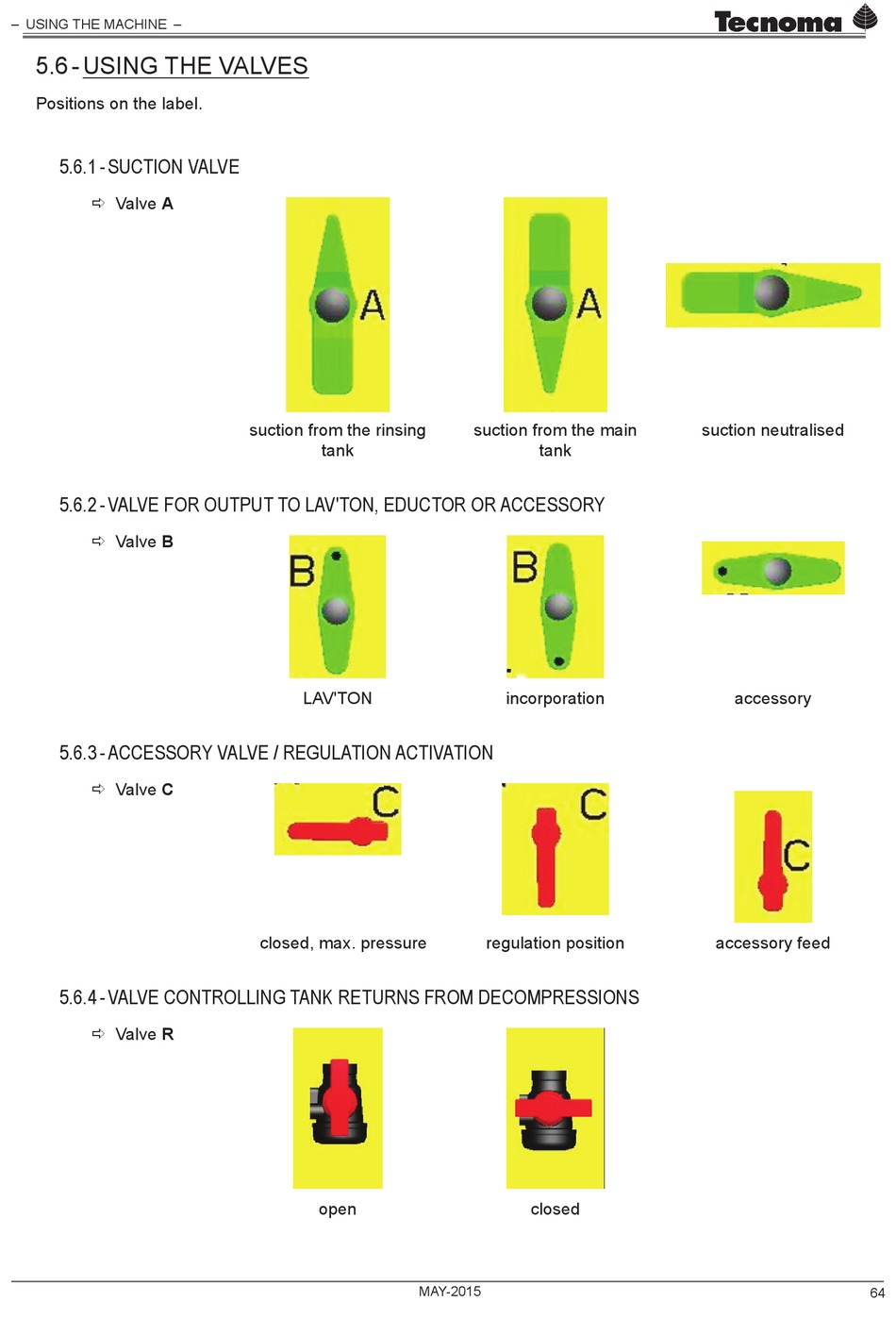

5.6 - USING THE VALVES
Positions on the label.
5.6.1 - SUCTION VALVE
Ö Valve A
5.6.2 - VALVE FOR OUTPUT TO LAV'TON, EDUCTOR OR ACCESSORY
Ö Valve B
5.6.3 - ACCESSORY VALVE / REGULATION ACTIVATION
Ö Valve C
5.6.4 - VALVE CONTROLLING TANK RETURNS FROM DECOMPRESSIONS
Ö Valve R
suction from the rinsing
tank
LAV'TON
closed, max. pressure
open
suction from the main
tank
incorporation
regulation position
closed
MAy-2015
suction neutralised
accessory
accessory feed
