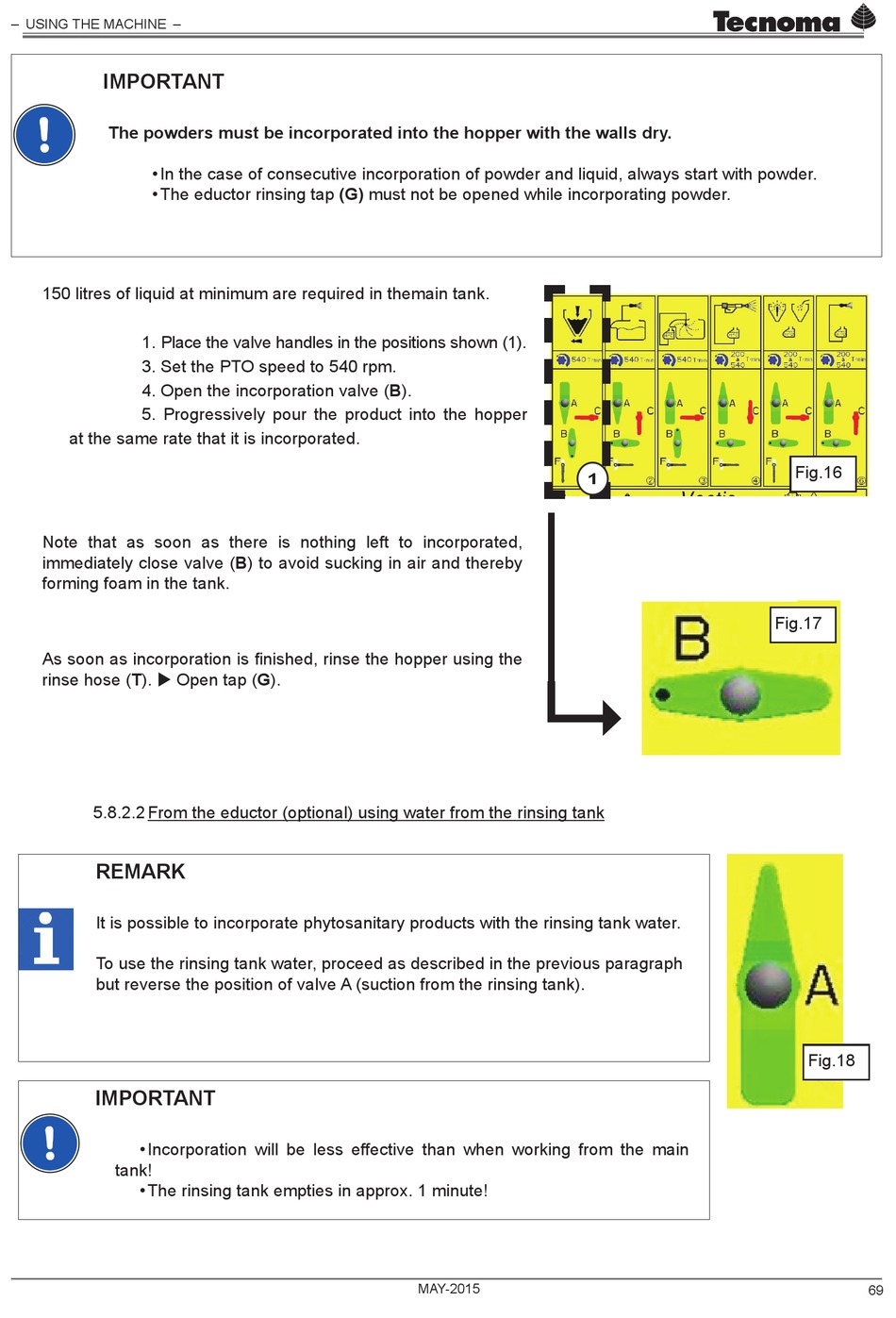

– USING THE MACHINE –
IMPORTANT
The powders must be incorporated into the hopper with the walls dry.
• In the case of consecutive incorporation of powder and liquid, always start with powder.
• The eductor rinsing tap (G) must not be opened while incorporating powder.
150 litres of liquid at minimum are required in themain tank.
1. Place the valve handles in the positions shown (1).
3. Set the PTO speed to 540 rpm.
4. Open the incorporation valve (B).
5. Progressively pour the product into the hopper
at the same rate that it is incorporated.
Note that as soon as there is nothing left to incorporated,
immediately close valve (B) to avoid sucking in air and thereby
forming foam in the tank.
As soon as incorporation is finished, rinse the hopper using the
rinse hose (T).  Open tap (G).
5.8.2.2 From the eductor (optional) using water from the rinsing tank
REMARK
It is possible to incorporate phytosanitary products with the rinsing tank water.
To use the rinsing tank water, proceed as described in the previous paragraph
but reverse the position of valve A (suction from the rinsing tank).
IMPORTANT
• Incorporation will be less effective than when working from the main
tank!
• The rinsing tank empties in approx. 1 minute!

MAy-2015
1
Fig.16
Fig.17
Fig.18
