Rinsing Tank; Hand Wash Tank (15 Litres) - Tecnoma VECTIS 800e Adjustments, Use And Maintenance

– USING THE MACHINE –

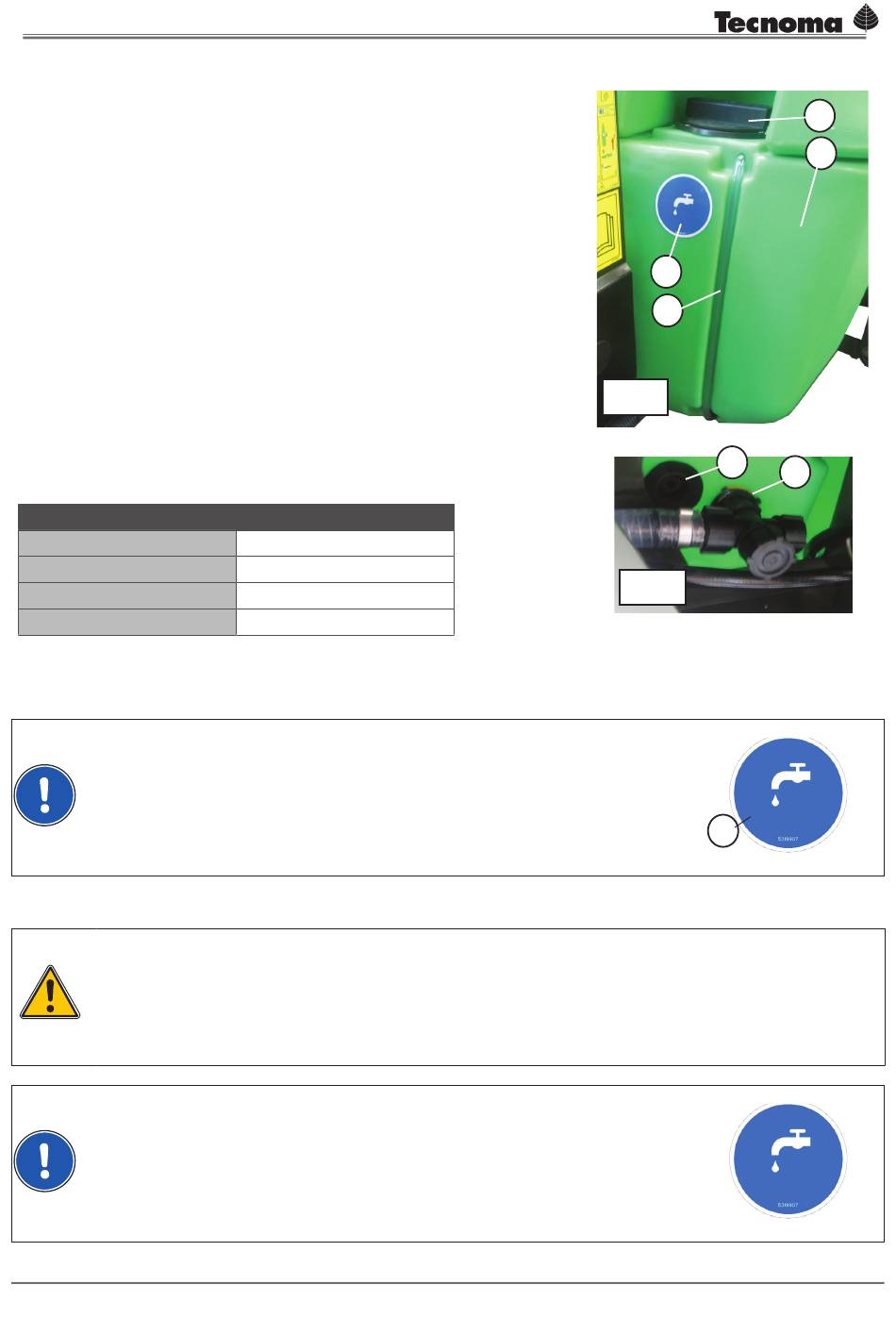

5.10.2 - RINSING TANK

The clean water available in the rinsing tank especially permits
• fully rinsing the sprayer in the field.
• cleaning the suction circuit and the spraying pipes when the tank
is full
To use the rinsing tank, refer to the paragraph
"DESCRIPTION OF THE FUNCTIONS" in this chapter.
The rinsing tank (1) has:
(2) a frontal gauge
(3) a filling hole
(4) a drain plug
(5) a suction connector
Filling capacity (with water)
Machines
800 narrow
1000 narrow
1000 wide
1200 litres
The overflow capacity is at minimum +5% of the nominal capacity
(+ 5% in compliance with standard ISO/FDIS 4254-6)
IMPORTANT
Only fill the rinsing tank with clean water!
Label 5319936 (4)

5.10.3 - HAND WASH TANK (15 LITRES)

WARNING
Risk of intoxication due to impure water!
Do not use water from the hand wash tank as drinking water!
The materials used are not designed for foodstuffs.
IMPORTANT
Only fill the rinsing tank with clean water!
Rinsing tank
80 litres
80 litres
120 litres
120 litres
MAy-2015
4
2
Fig.44
4
Fig.45
4
3
1
5
