Presentation Of Assemblies - Tecnoma VECTIS 800e Adjustments, Use And Maintenance

– DECRIPTION OF THE MACHINE –

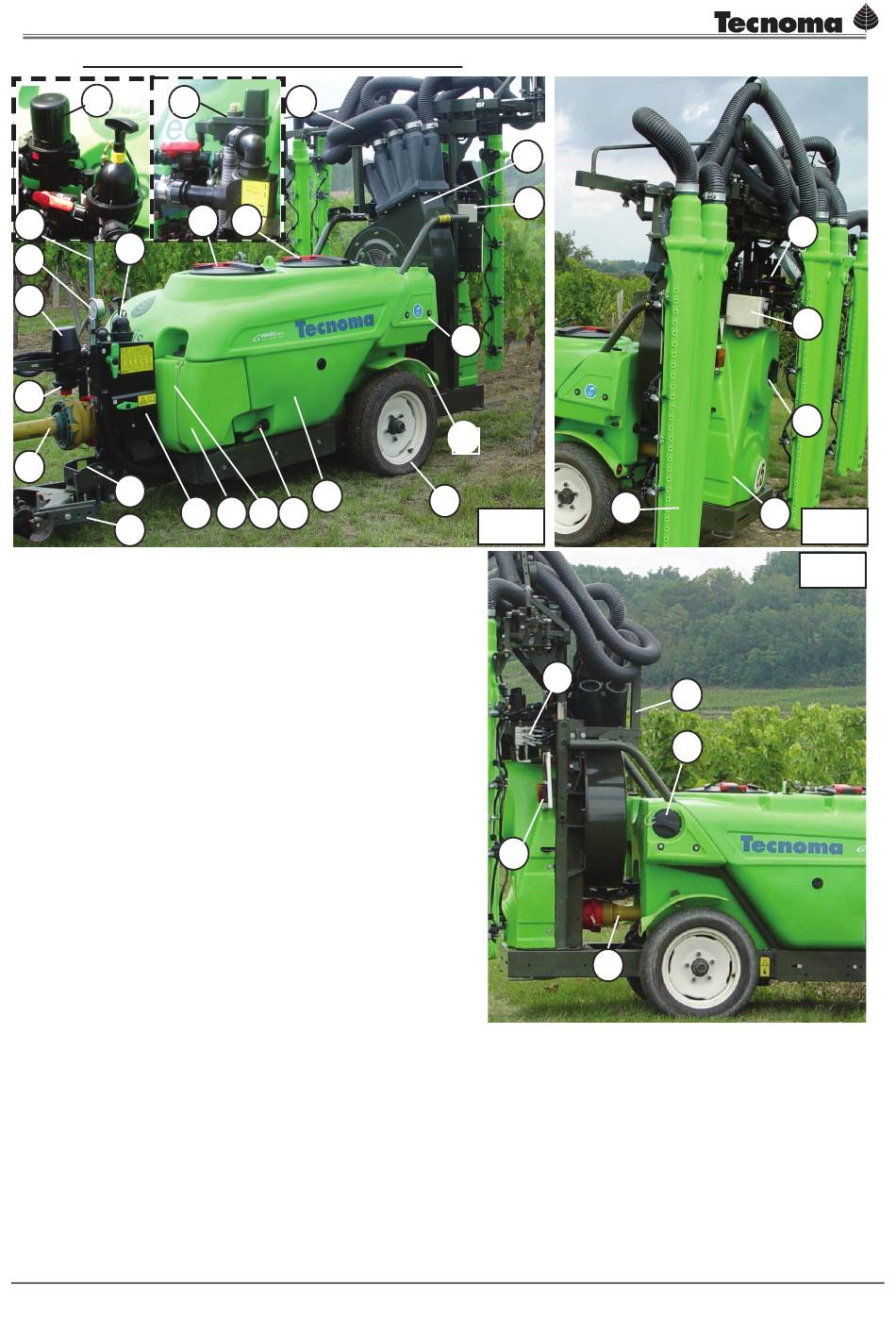

4.5 - PRESENTATION OF ASSEMBLIES

31
32
7
4
6
5
8
3
1
2
(1) Location of the removable stand
(2) Articulated boom
(3) Transmission shaft
(4) Regulair
(5) Regular electrical compressor (option)
(6) Pressure gauge
(7) Main tank tube gauge
(8) Suction filter
(9) Main tank
(10) Work station for function controls
(11) Rinsing tank
(12) Rinsing tank tube gauge
(13) Front left hydraulic agitator
(14) Hand wash tank
(15) Wheel and tyre on adjustable axle in position
(16) Mud guard (option)
(17) Access cover to mixer and LAV'BOX (options)
(19) Electrical connection box
(21) Vent
(23) intermediate shaft
(25) Valve assembly
(27) VITIVARIO PRECIJET boom
(29) High beam lights
(31) AUTONET motor-controlled valve (option)
27
17 18
9
10 11 12 13
21
19
14
16
15
Fig.11
25
29
(18) Main tank top opening cover
(20) Distribution
(22) shield
(24) Access to declutching device
(26) Storage
(28) PRECIJET
(30) Stored removable stand (working mode)
(32) VITITRONIC control valve (option)
MAy-2015
28
22
30
26
23
20
19
24
Fig.10
Fig.12
36
