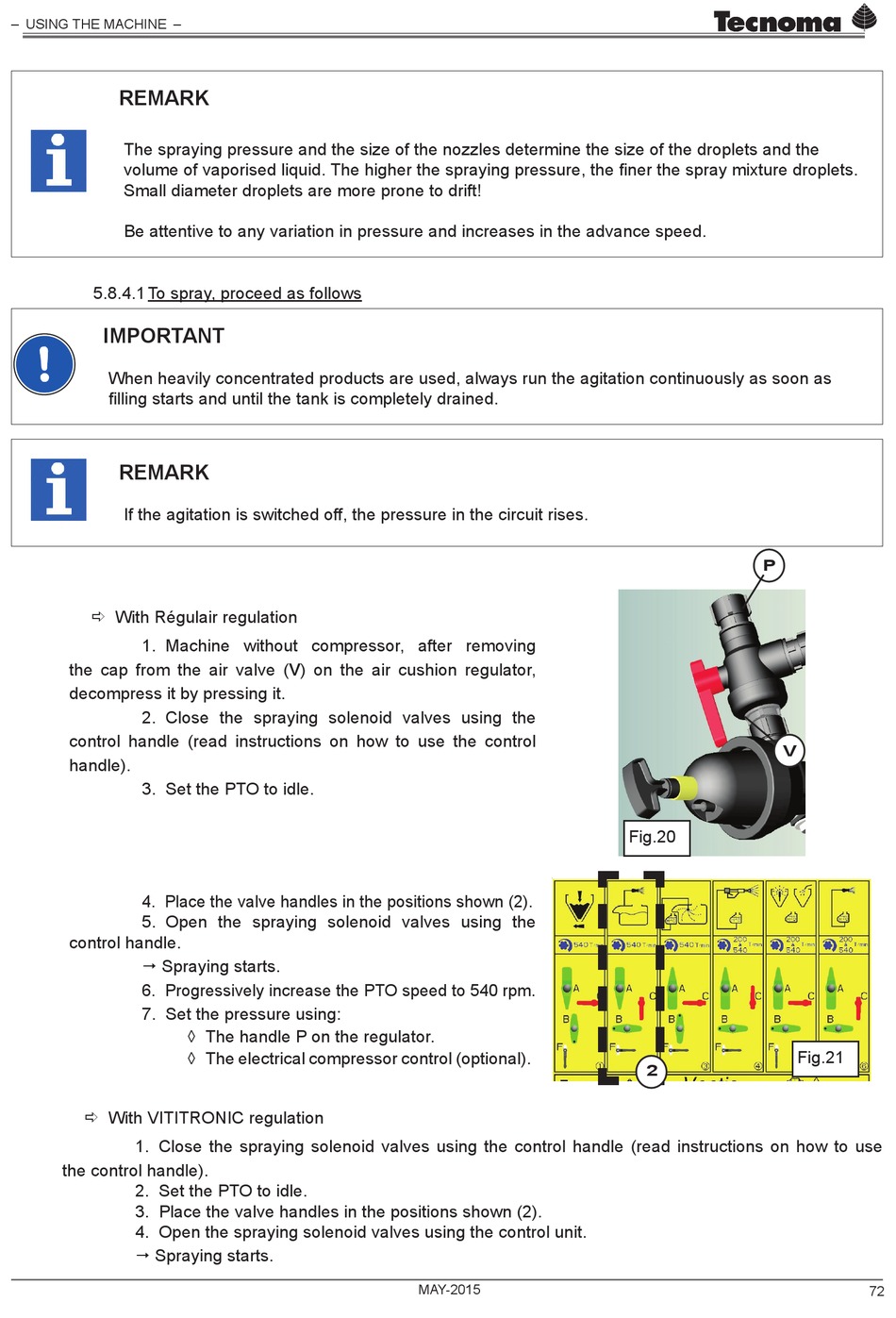

Tecnoma VECTIS 800e Adjustments, Use And Maintenance page 72

– USING THE MACHINE –
REMARK
The spraying pressure and the size of the nozzles determine the size of the droplets and the
volume of vaporised liquid. The higher the spraying pressure, the finer the spray mixture droplets.
Small diameter droplets are more prone to drift!
Be attentive to any variation in pressure and increases in the advance speed.
5.8.4.1 To spray, proceed as follows
IMPORTANT
When heavily concentrated products are used, always run the agitation continuously as soon as
filling starts and until the tank is completely drained.
REMARK
If the agitation is switched off, the pressure in the circuit rises.
Ö With Régulair regulation
1. Machine without compressor, after removing
the cap from the air valve (V) on the air cushion regulator,
decompress it by pressing it.
2. Close the spraying solenoid valves using the
control handle (read instructions on how to use the control
handle).
3. Set the PTO to idle.
4. Place the valve handles in the positions shown (2).
5. Open the spraying solenoid valves using the
control handle.
 Spraying starts.
6. Progressively increase the PTO speed to 540 rpm.
7. Set the pressure using:
Ö With VITITRONIC regulation
1. Close the spraying solenoid valves using the control handle (read instructions on how to use
the control handle).
2. Set the PTO to idle.
3. Place the valve handles in the positions shown (2).
4. Open the spraying solenoid valves using the control unit.
 Spraying starts.
◊ The handle P on the regulator.
◊ The electrical compressor control (optional).
MAy-2015
P
V
Fig.20
Fig.21
2
72
