– COMMISSIONING THE MACHINE –

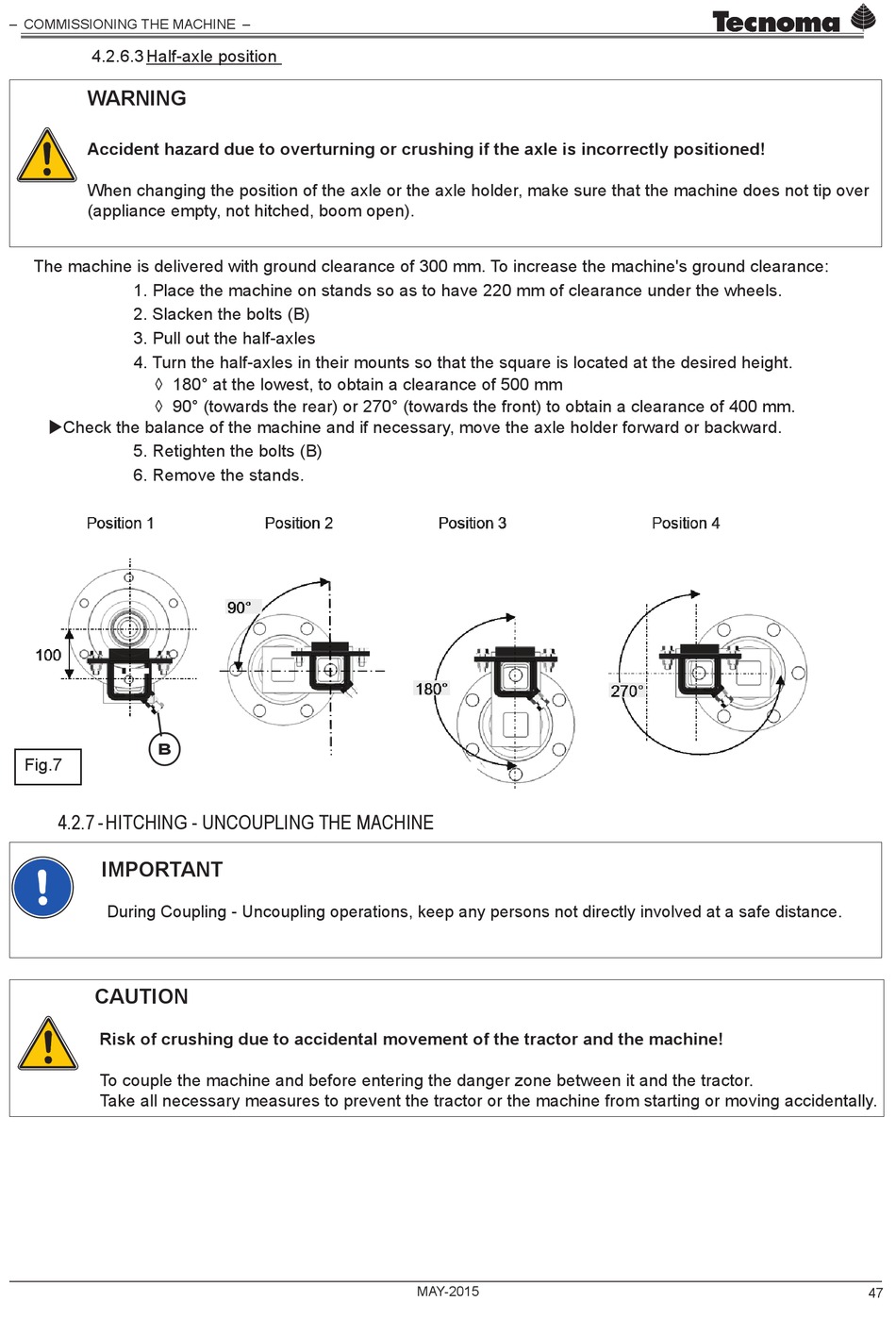

4.2.6.3 Half-axle position
WARNING
Accident hazard due to overturning or crushing if the axle is incorrectly positioned!
When changing the position of the axle or the axle holder, make sure that the machine does not tip over
(appliance empty, not hitched, boom open).
The machine is delivered with ground clearance of 300 mm. To increase the machine's ground clearance:
1. Place the machine on stands so as to have 220 mm of clearance under the wheels.
2. Slacken the bolts (B)
3. Pull out the half-axles
4. Turn the half-axles in their mounts so that the square is located at the desired height.
◊ 180° at the lowest, to obtain a clearance of 500 mm
◊ 90° (towards the rear) or 270° (towards the front) to obtain a clearance of 400 mm.
Check the balance of the machine and if necessary, move the axle holder forward or backward.
5. Retighten the bolts (B)
6. Remove the stands.
B
Fig.7

4.2.7 - HITCHING - UNCOUPLING THE MACHINE

IMPORTANT
During Coupling - Uncoupling operations, keep any persons not directly involved at a safe distance.
CAUTION
Risk of crushing due to accidental movement of the tractor and the machine!
To couple the machine and before entering the danger zone between it and the tractor.
Take all necessary measures to prevent the tractor or the machine from starting or moving accidentally.
