– USING THE MACHINE –

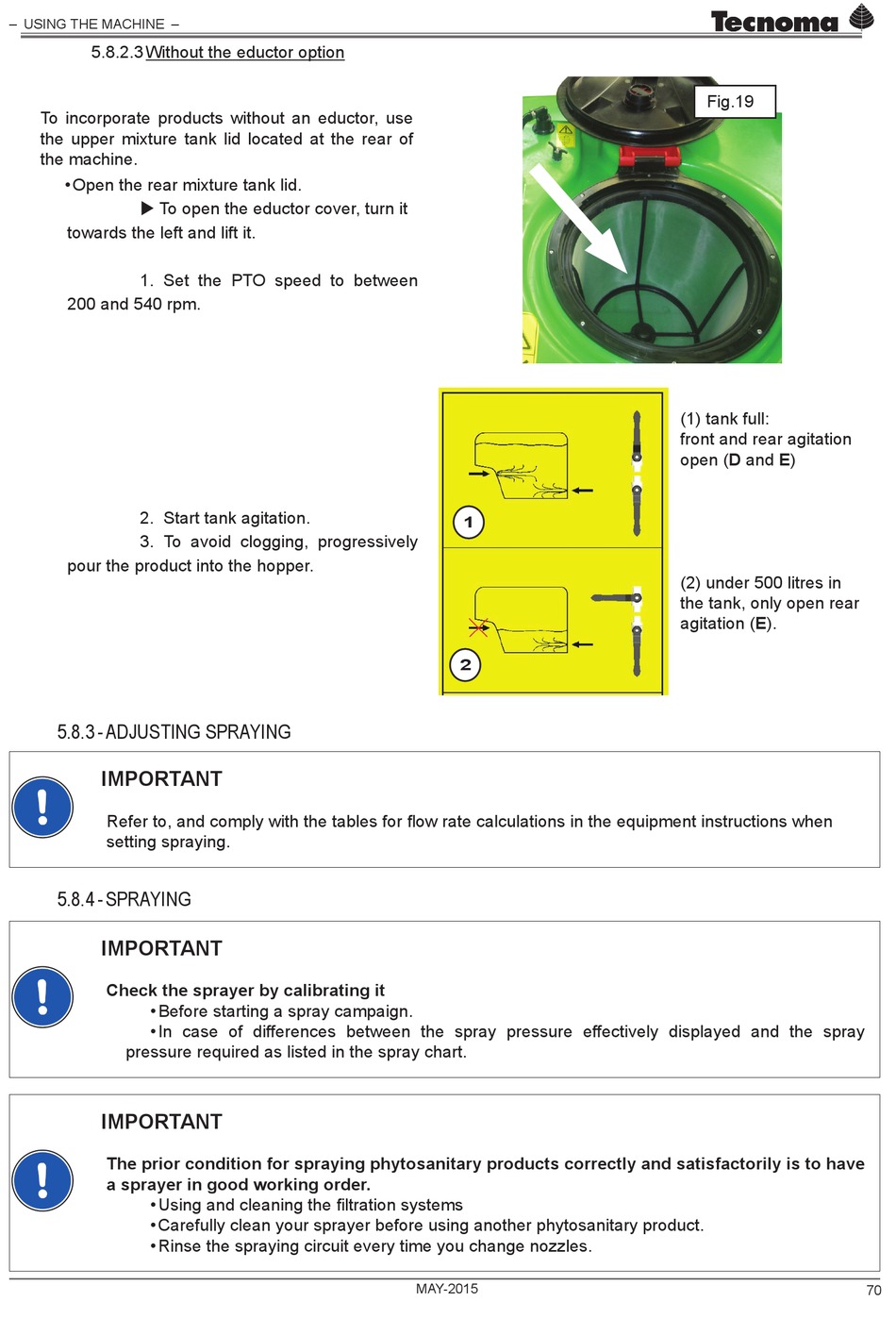

5.8.2.3 Without the eductor option
To incorporate products without an eductor, use
the upper mixture tank lid located at the rear of
the machine.
• Open the rear mixture tank lid.
 To open the eductor cover, turn it
towards the left and lift it.
1. Set the PTO speed to between
200 and 540 rpm.
2. Start tank agitation.
3. To avoid clogging, progressively
pour the product into the hopper.

5.8.3 - ADJUSTING SPRAYING

IMPORTANT
Refer to, and comply with the tables for flow rate calculations in the equipment instructions when
setting spraying.

5.8.4 - SPRAYING

IMPORTANT
Check the sprayer by calibrating it
• Before starting a spray campaign.
• In case of differences between the spray pressure effectively displayed and the spray
pressure required as listed in the spray chart.
IMPORTANT
The prior condition for spraying phytosanitary products correctly and satisfactorily is to have
a sprayer in good working order.
• Using and cleaning the filtration systems
• Carefully clean your sprayer before using another phytosanitary product.
• Rinse the spraying circuit every time you change nozzles.
1
2
MAy-2015
Fig.19
(1) tank full:
front and rear agitation
open (D and E)
(2) under 500 litres in
the tank, only open rear
agitation (E).
70
