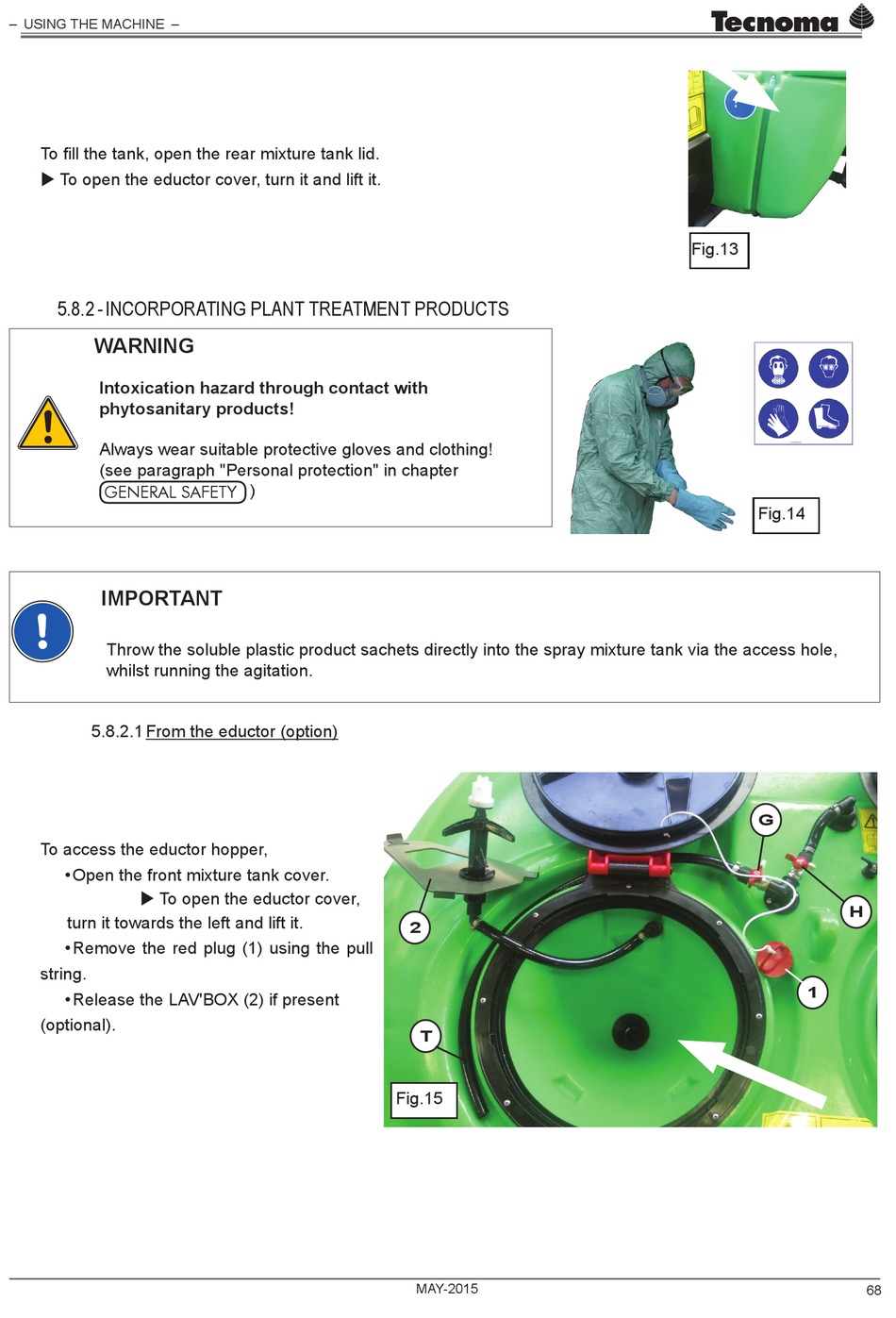

– USING THE MACHINE –
To fill the tank, open the rear mixture tank lid.
 To open the eductor cover, turn it and lift it.

5.8.2 - INCORPORATING PLANT TREATMENT PRODUCTS

WARNING
Intoxication hazard through contact with
phytosanitary products!
Always wear suitable protective gloves and clothing!
(see paragraph "Personal protection" in chapter
GENERAL SAFETY )
IMPORTANT
Throw the soluble plastic product sachets directly into the spray mixture tank via the access hole,
whilst running the agitation.
5.8.2.1 From the eductor (option)
To access the eductor hopper,
• Open the front mixture tank cover.
 To open the eductor cover,
turn it towards the left and lift it.
• Remove the red plug (1) using the pull
string.
• Release the LAV'BOX (2) if present
(optional).
2
T
Fig.15
MAy-2015
Fig.13
Fig.14
G
H
1
68
