Danfoss VLT AQUA Programming Manual page 51

®
VLT AQUA Drive Programming Guide
2.3.5. 1-6* Load Depend. Setting
Parameters for adjusting the load-dependent motor settings.
1-60 Low Speed Load Compensation
Range:
100%
1-61 High Speed Load Compensation
Range:
100%
1-62 Slip Compensation
Range:
*
0%

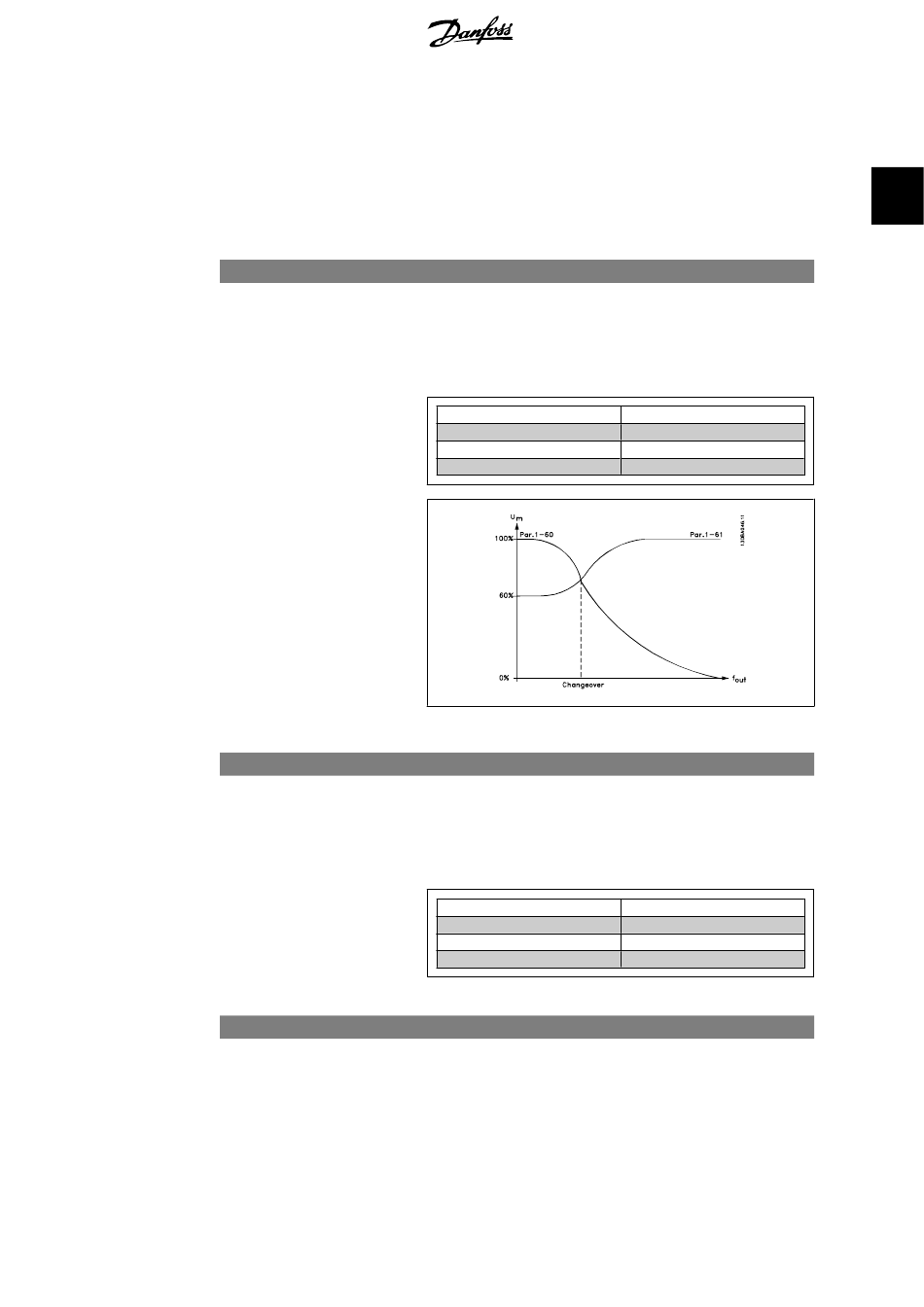

Use this par. along with par. 1-50. See drawing for par. 1-50.
Function:
* [0 - 300%] Enter the % value to compensate voltage in relation to load
when the motor is running at low speed and obtain the optimum
U/f characteristic. The motor size determines the frequency
range within which this parameter is active.
Function:
* [0 - 300%] Enter the % value to compensate voltage in relation to load
when the motor is running at high speed and obtain the opti-
mum U/f characteristic. The motor size determines the frequen-
cy range within which this parameter is active.
Function:
[-500 - 500 %] Enter the % value for slip compensation, to compensate for tol-
erances in the value of n
automatically, i.e. on the basis of the rated motor speed n
®
MG.20.O2.02 - VLT is a registered Danfoss trademark
Motor size
0.25 kW - 7.5 kW
11 kW - 45 kW
55 kW - 550 kW
Motor size
0.25 kW - 7.5 kW
11 kW - 45 kW
55 kW - 550 kW
. Slip compensation is calculated
M,N
2. Parameter Description
Change over
< 10 Hz
< 5 Hz
< 3-4 Hz
Change-over
> 10 Hz
< 5 Hz
< 3-4 Hz
M,N
2
.
