1. How to Programme
Quick Setup
1
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys
[Back]
for stepping backwards
Arrow [ ] [ ]
keys are used for manoeuvring between pa-
rameter groups, parameters and within pa-
rameters
[OK]
is used for choosing a parameter marked by
the cursor and for enabling the change of a
parameter.
Operation Keys
Keys for local control are found at the bottom
of the control panel.
[Hand on]
enables control of the frequency converter via the LCP. [Hand on] also starts the motor and it is
now possible to enter the motor speed data by means of the arrow keys. The key can be
bled
External stop signals activated by means of control signals or a serial bus will override a 'start'
command via the LCP.
The following control signals will still be active when [Hand on] is activated:
•
•
•
•
•
•
•
•
[Off]
stops the connected motor. The key can be
Enabled
Key on LCP
If no external stop function is selected and the [Off] key is inactive the motor can be stopped by
disconnecting the mains supply.
22
is used to set up the frequency converter using only the most essential parameters.
▲ ▼
Disabled
[1] or [0] via par. 0-40
[Hand on] - [Off] - [Auto on]
Reset
Coasting stop inverse
Reversing
Set-up select lsb - Set-up select msb
Stop command from serial communication
Quick stop
DC brake
[1] or Disabled [0] via par. 0-41
.
MG.20.O2.02 - VLT
VLT

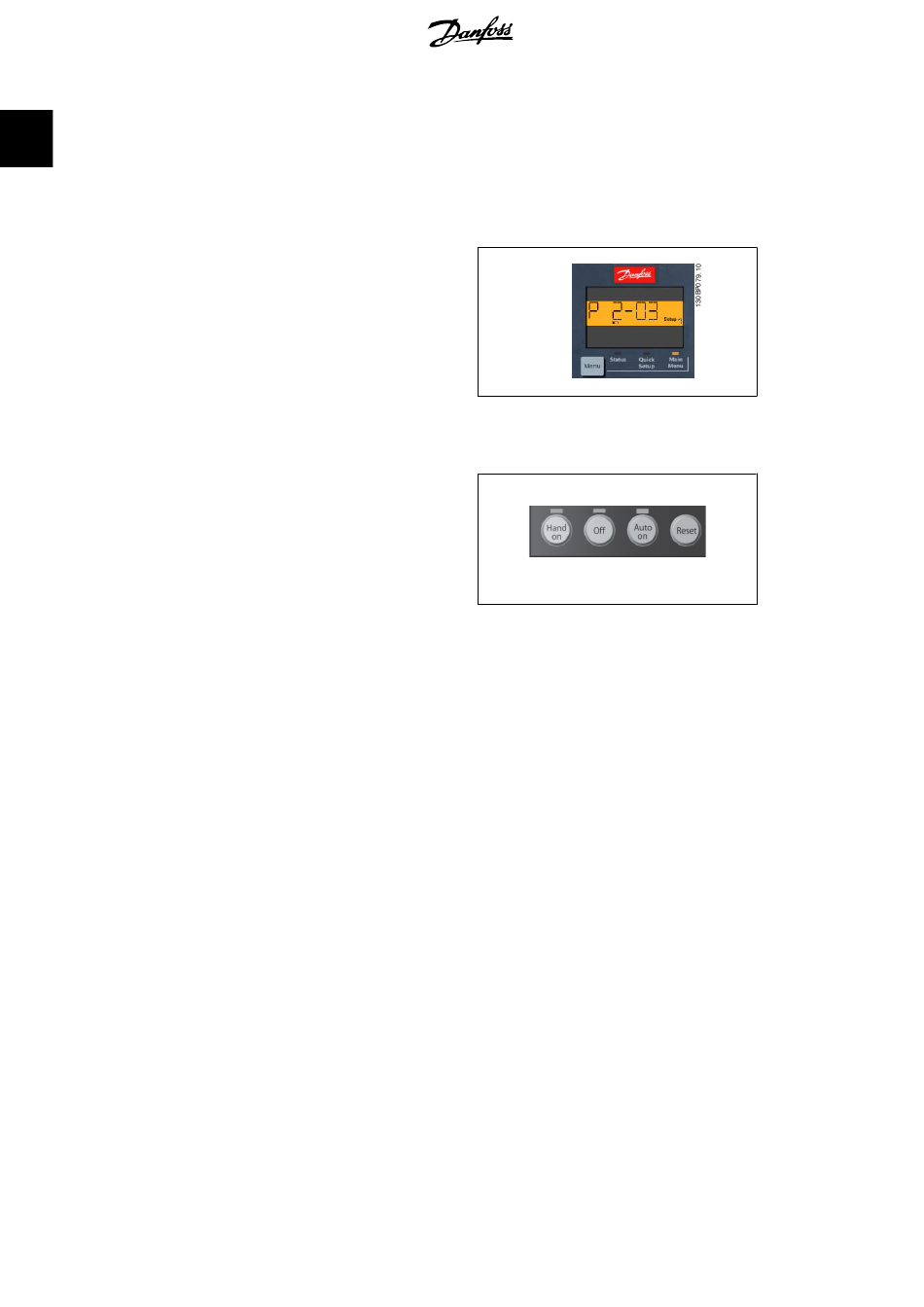

Illustration 1.17: Display example
Illustration 1.18: Operation keys of the numerical
CP (NLCP)
[Hand on] Key on LCP
.
[Off]
®
