How to access Function Set-up - exam-
ple

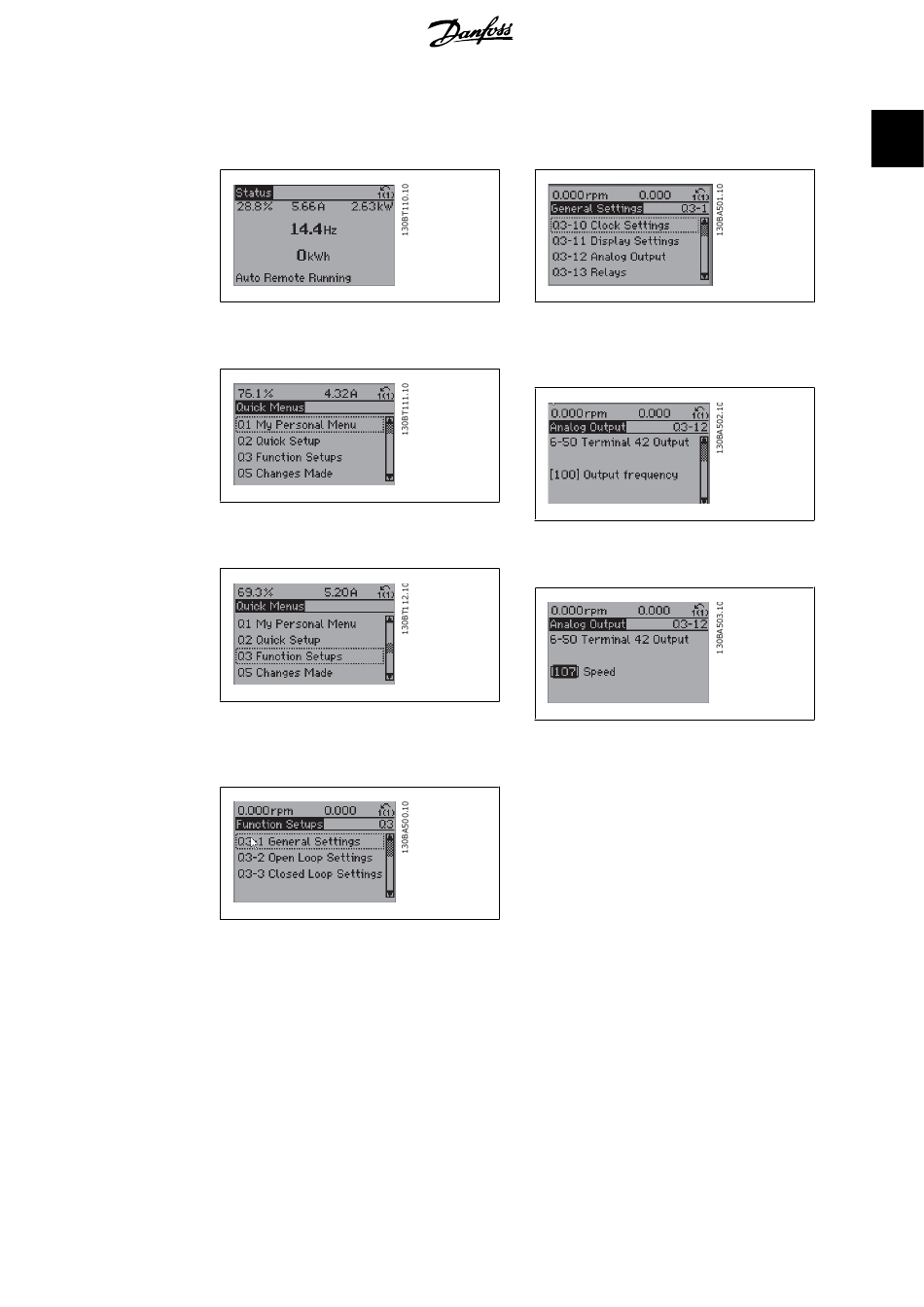

Illustration 1.2: Step 1: Turn on the frequency
converter (On LED lights)
Illustration 1.3: Step 2: Press the [Quick Menus]
button (Quick Menus choices appear).
Illustration 1.4: Step 3: Use the up/down naviga-
tion keys to scroll down to Function Setups. Press
[OK].
Illustration 1.5: Step 4: Function Setups choices
appear. Choose 03-1
The Function Setup parameters are grouped in the following way:
General Settings
. Press [OK].
®
MG.20.O2.02 - VLT is a registered Danfoss trademark
1. How to Programme
Illustration 1.6: Step 5: Use the up/down naviga-
tion keys to scroll down to i.e. 03-12
puts
. Press [OK].
Illustration 1.7: Step 6: Choose parameter 6-50
Terminal 42 Output
. Press [OK].
Illustration 1.8: Step 7: Use the up/down naviga-
tion keys to select between the different choices.
Press [OK].
