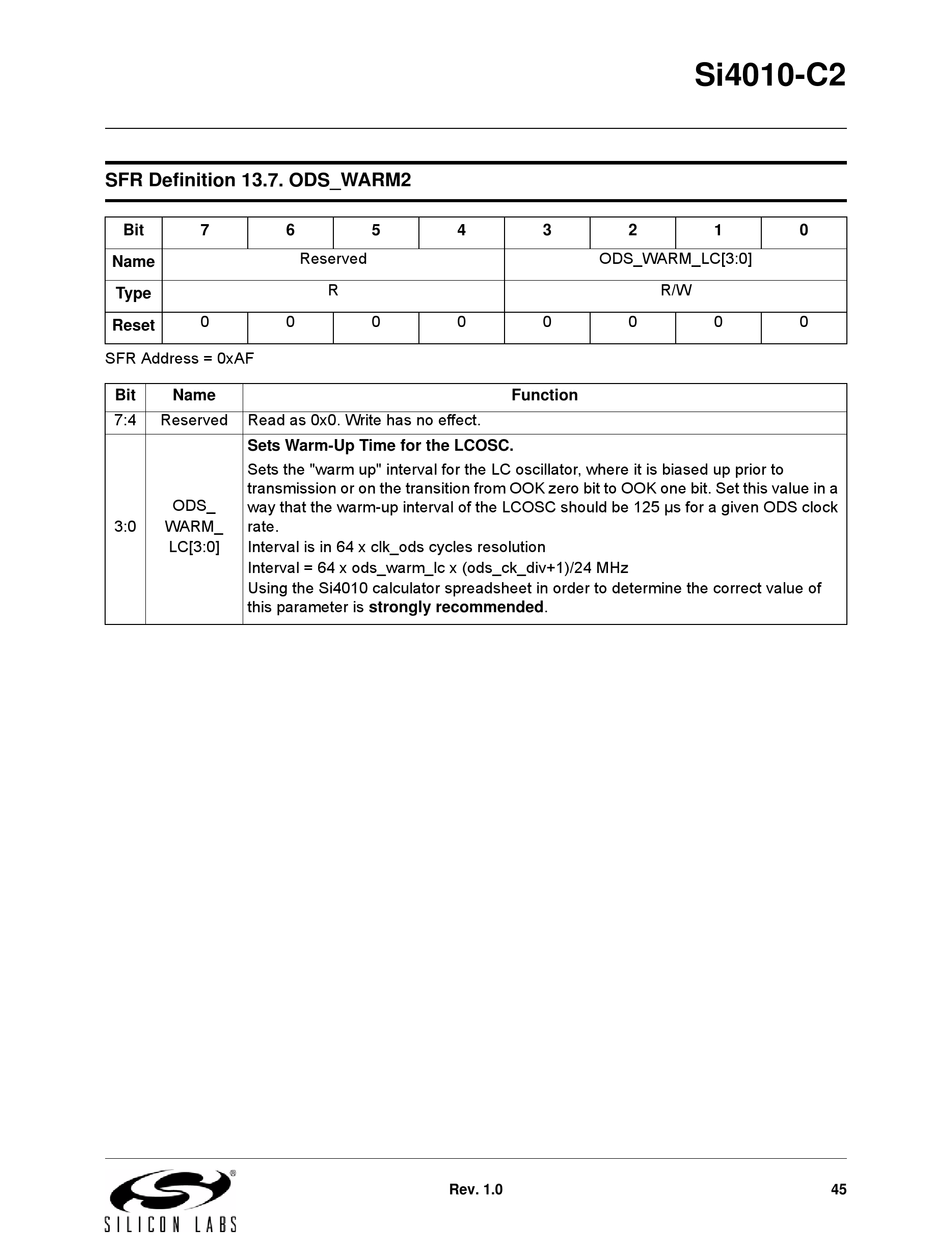

SFR Definition 13.7. ODS_WARM2

Bit 7
Name
Type
0
Reset
SFR Address = 0xAF
Bit Name
7:4 Reserved Read as 0x0. Write has no effect.
Sets Warm-Up Time for the LCOSC.
Sets the "warm up" interval for the LC oscillator, where it is biased up prior to 
transmission or on the transition from OOK zero bit to OOK one bit. Set this value in a
ODS_
way that the warm-up interval of the LCOSC should be 125 µs for a given ODS clock
3:0 WARM_ rate.
LC[3:0] Interval is in 64 x clk_ods cycles resolution
Interval = 64 x ods_warm_lc x (ods_ck_div+1)/24 MHz
Using the Si4010 calculator spreadsheet in order to determine the correct value of
this parameter is strongly recommended.
6 5 4
Reserved
R
0 0 0
Rev. 1.0
3 2
ODS_WARM_LC[3:0]
R/W
0 0
Function
Si4010-C2
1 0
0 0
45
