34.1. Interrupt Flag Generation

Timer 2 has a single interrupt signal going to interrupt controller. Internally, there are 2 interrupt flags,
TMR2INTH for high half of the timer and TMR2INTL for low half of the timer, which are combined to gener-
ate the final interrupt signal. The low half has a local interrupt flag enable TMR2INTL_EN control bit.
Setting of the interrupt flags depends on the width and functional modes of each timer or its half.
Wide mode

Timer mode
l
TMR2INTH set if TMR2H overflows 
TMR2INTL set if TMR2L overflows
Capture mode 
l
TMR2INTH set if capture event happens and TMR2H, TMR2L 16-bit value gets captured 
TMR2INTL set if TMR2H overflows.
Note: This is an exception when low interrupt flag gets set based on the high half of the timer. This is a
supplemental information for the interrupt handler about the capture, indicating that the 16-bit counter overflew
in between captures.
Split mode

Timer mode 
l
TMR2INTH set if TMR2H overflows 
TMR2INTL set if TMR2L overflows
Capture mode 
l
TMR2INTH set by capture event when TMR2H gets captured 
TMR2INTL set by capture event when TMR2L gets captured
Each of the modes is described in a separate section. There is a clock selection register TMR_CLKSEL
common for both Timer 2 and Timer 3.
132
TMR2INTH
TMR2INTL
TMR2INTL_EN
TMR2SPLIT
TMR2H_CAP
TMR2L_CAP
TMR2H_RUN
TMR2L_RUN

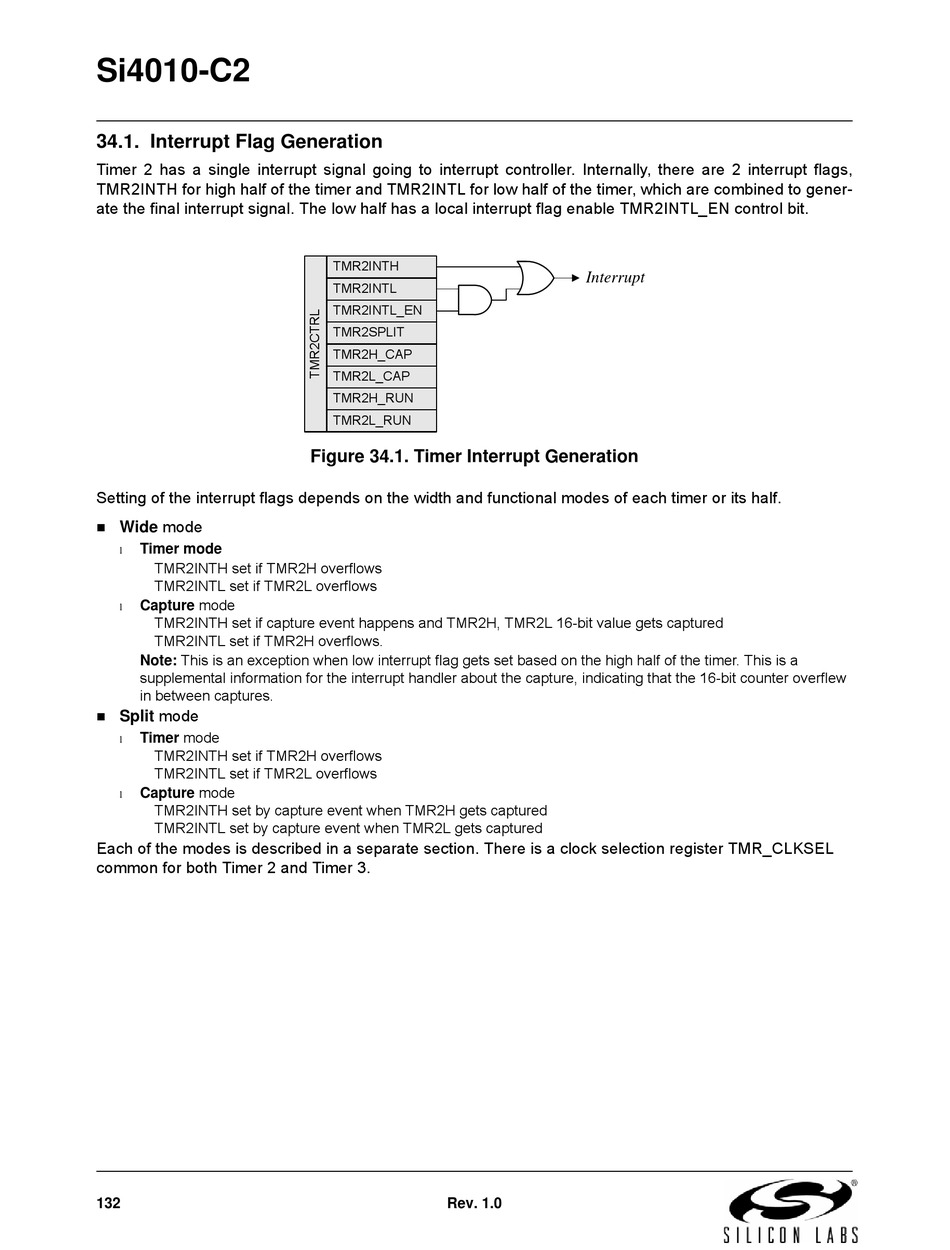

Figure 34.1. Timer Interrupt Generation
