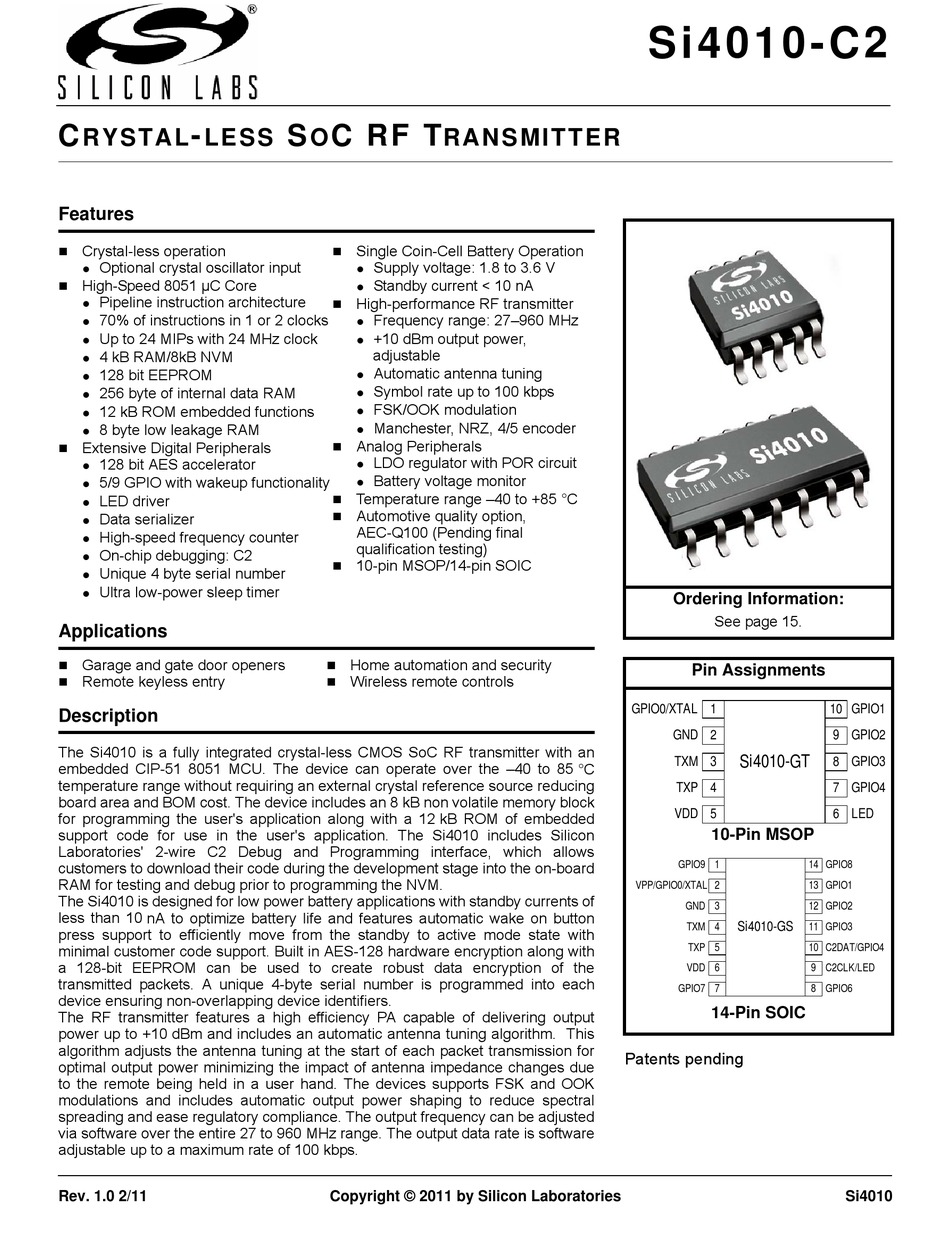

Silicon Laboratories Si4010-C2 Manual

Silicon Laboratories Si4010-C2 Manual

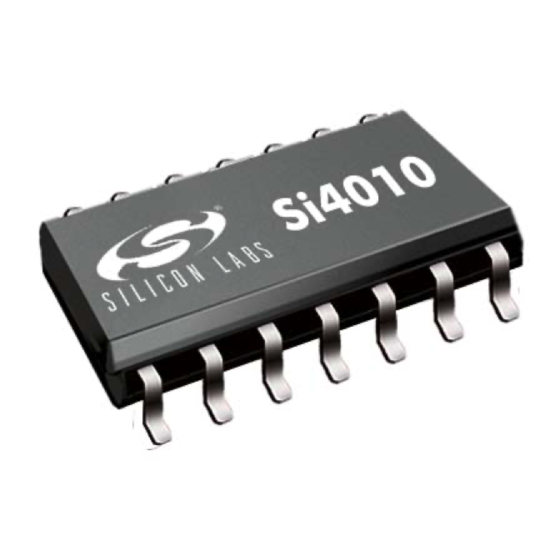

Crystal-less soc rf transmitter
Table of Contents

Advertisement

Quick Links

C
-
R YS TA L
L E S S
Features
Crystal-less operation
Optional crystal oscillator input

High-Speed 8051 µC Core
Pipeline instruction architecture

70% of instructions in 1 or 2 clocks

Up to 24 MIPs with 24 MHz clock

4 kB RAM/8kB NVM

128 bit EEPROM

256 byte of internal data RAM

12 kB ROM embedded functions

8 byte low leakage RAM

Extensive Digital Peripherals
128 bit AES accelerator

5/9 GPIO with wakeup functionality

LED driver

Data serializer

High-speed frequency counter

On-chip debugging: C2

Unique 4 byte serial number

Ultra low-power sleep timer

Applications
Garage and gate door openers
Remote keyless entry
Description
The Si4010 is a fully integrated crystal-less CMOS SoC RF transmitter with an
embedded CIP-51 8051 MCU. The device can operate over the –40 to 85 °C
temperature range without requiring an external crystal reference source reducing
board area and BOM cost. The device includes an 8 kB non volatile memory block
for programming the user's application along with a 12 kB ROM of embedded
support code for use in the user's application. The Si4010 includes Silicon
Laboratories' 2-wire C2 Debug and Programming interface, which allows
customers to download their code during the development stage into the on-board
RAM for testing and debug prior to programming the NVM.
The Si4010 is designed for low power battery applications with standby currents of
less than 10 nA to optimize battery life and features automatic wake on button
press support to efficiently move from the standby to active mode state with
minimal customer code support. Built in AES-128 hardware encryption along with
a 128-bit EEPROM can be used to create robust data encryption of the
transmitted packets. A unique 4-byte serial number is programmed into each
device ensuring non-overlapping device identifiers.
The RF transmitter features a high efficiency PA capable of delivering output
power up to +10 dBm and includes an automatic antenna tuning algorithm. This
algorithm adjusts the antenna tuning at the start of each packet transmission for
optimal output power minimizing the impact of antenna impedance changes due
to the remote being held in a user hand. The devices supports FSK and OOK
modulations and includes automatic output power shaping to reduce spectral
spreading and ease regulatory compliance. The output frequency can be adjusted
via software over the entire 27 to 960 MHz range. The output data rate is software
adjustable up to a maximum rate of 100 kbps.
Rev. 1.0 2/11
S
C RF T
O
R A N S M I T T E R
Single Coin-Cell Battery Operation
Supply voltage: 1.8 to 3.6 V

Standby current < 10 nA

High-performance RF transmitter
Frequency range: 27–960 MHz

+10 dBm output power,

adjustable
Automatic antenna tuning

Symbol rate up to 100 kbps

FSK/OOK modulation

Manchester, NRZ, 4/5 encoder

Analog Peripherals
LDO regulator with POR circuit

Battery voltage monitor

Temperature range –40 to +85 °C
Automotive quality option, 
AEC-Q100 (Pending final
qualification testing)
10-pin MSOP/14-pin SOIC
Home automation and security
Wireless remote controls
Copyright © 2011 by Silicon Laboratories
S i 4 0 1 0 - C 2
Ordering Information:
See page 15.
Pin Assignments
GPIO0/XTAL
1
GND
2
Si4010-GT
TXM
3
TXP
4
VDD
5
10-Pin MSOP
GPIO9 1
VPP/GPIO0/XTAL
2
GND
3
Si4010-GS
TXM
4
TXP
5
VDD
6
GPIO7
7
14-Pin SOIC
Patents pending
10 GPIO1
9 GPIO2
8
GPIO3
7
GPIO4
6
LED
14 GPIO8
13 GPIO1
12 GPIO2
11
GPIO3
10
C2DAT/GPIO4
9
C2CLK/LED
8
GPIO6
Si4010
