Figure 34.7. Two 8-Bit Timers In Capture/Timer Configuration (Split Mode) - Silicon Laboratories Si4010-C2 Manual

Si4010-C2
TMR_CLKSEL
clk_sys
0
clk_sys/12
1
rtc_tick (5.33us)
2
rtc_pulse (100us)
3
INT1 for TMR3

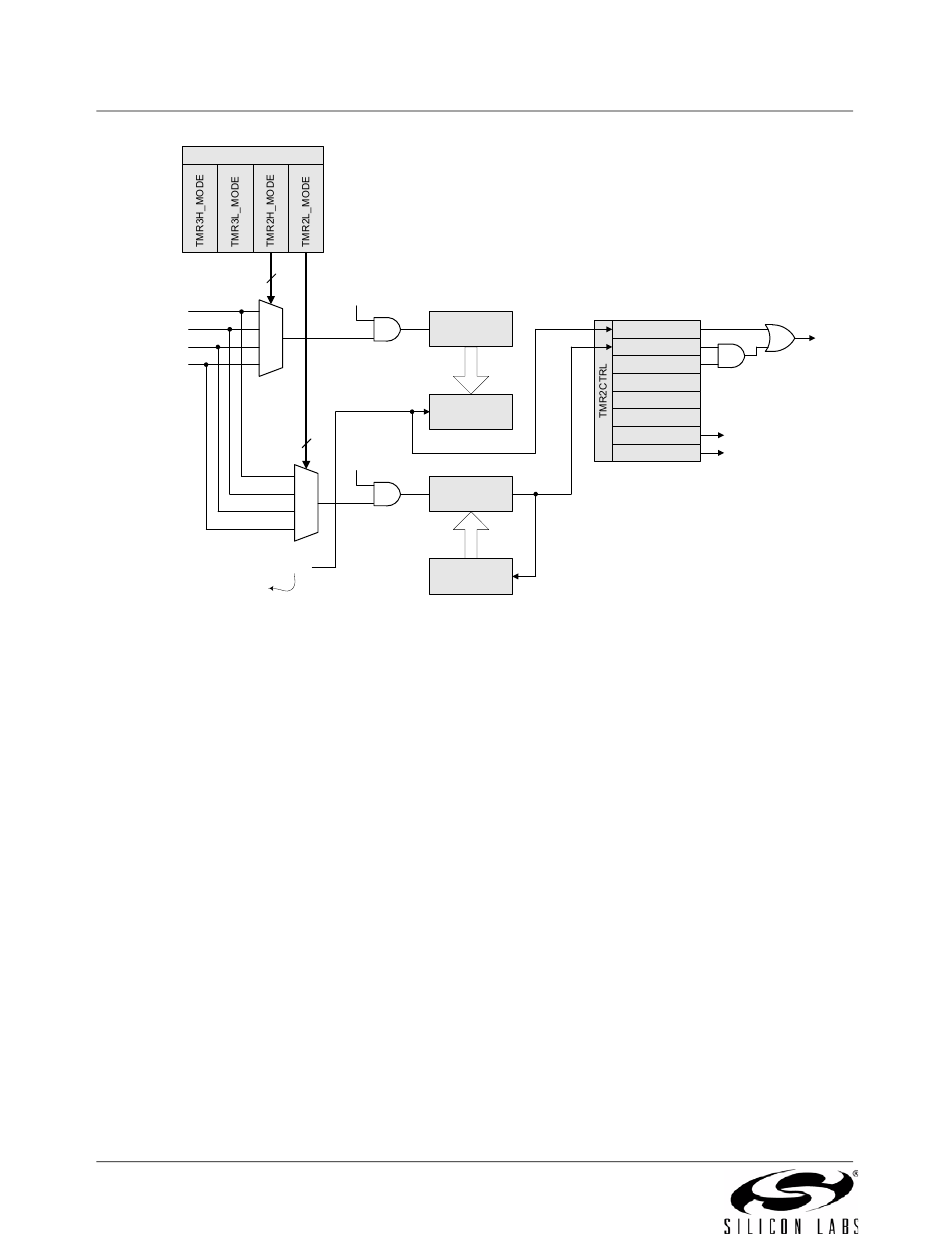

Figure 34.7. Two 8-Bit Timers In Capture/Timer Configuration (Split Mode)

138
2
TMR2H_RUN
TMR2H
Capture
TMR2RH
2
TMR2L_RUN
0
TMR2L
1
2
3
INT0
TMR2RL
Rev. 1.0
TMR2INTH
TMR2INTL
TMR2INTL_EN
TMR2SPLIT
TMR2H_CAP
TMR2L_CAP
TMR2H_RUN
TMR2L_RUN
Reload
Interrupt
