Si4010-C2

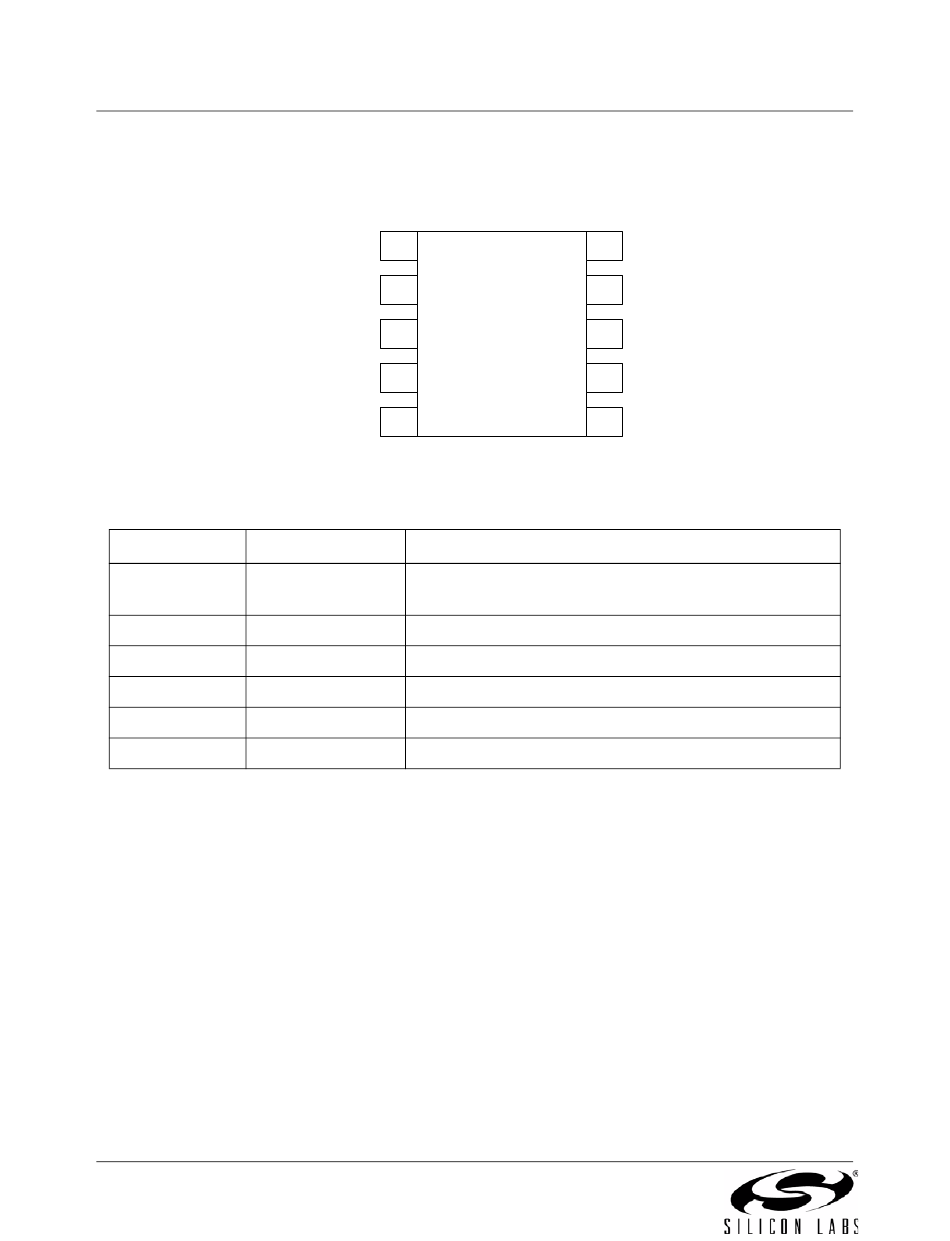

6. Pin Definitions

6.1. MSOP, Application

GPIO0/XTAL
Pin Number(s)
1
2
3, 4
5
6
7, 8, 9, 10
18
1
GND 2
Si4010-GT
TXM 3
TXP 4
VDD 5
Name
GPIO0/XTAL General purpose input pin.
Can be configured as an input pin for a crystal.
GND Ground. Connect to ground plane on PCB.
TXM, TXP Transmitter differential outputs.
VDD Power.
LED Dedicated LED driver.
GPIO[4:1] General purpose input/output pins.
Rev. 1.0
10 GPIO1
9 GPIO2
8 GPIO3
7 GPIO4
6 LED
Description
