7. Package Specifications

7.1. 10-Pin MSOP

Figure 7.1 illustrates the package details for the Si4010, 10-pin MSOP package. Table 7.1 lists the values
for the dimensions shown in the illustration.
Symbol Millimeters
Min
A —
A1 0.00
A2 0.75
b 0.17
c 0.08
D
E
E1
Notes:
1. All dimensions are shown in millimeters (mm).
2. Dimensioning and tolerancing per ASME Y14.5M-1994.
3. This drawing conforms to JEDEC Outline MO-187, Variation "BA."
4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body Components.
22

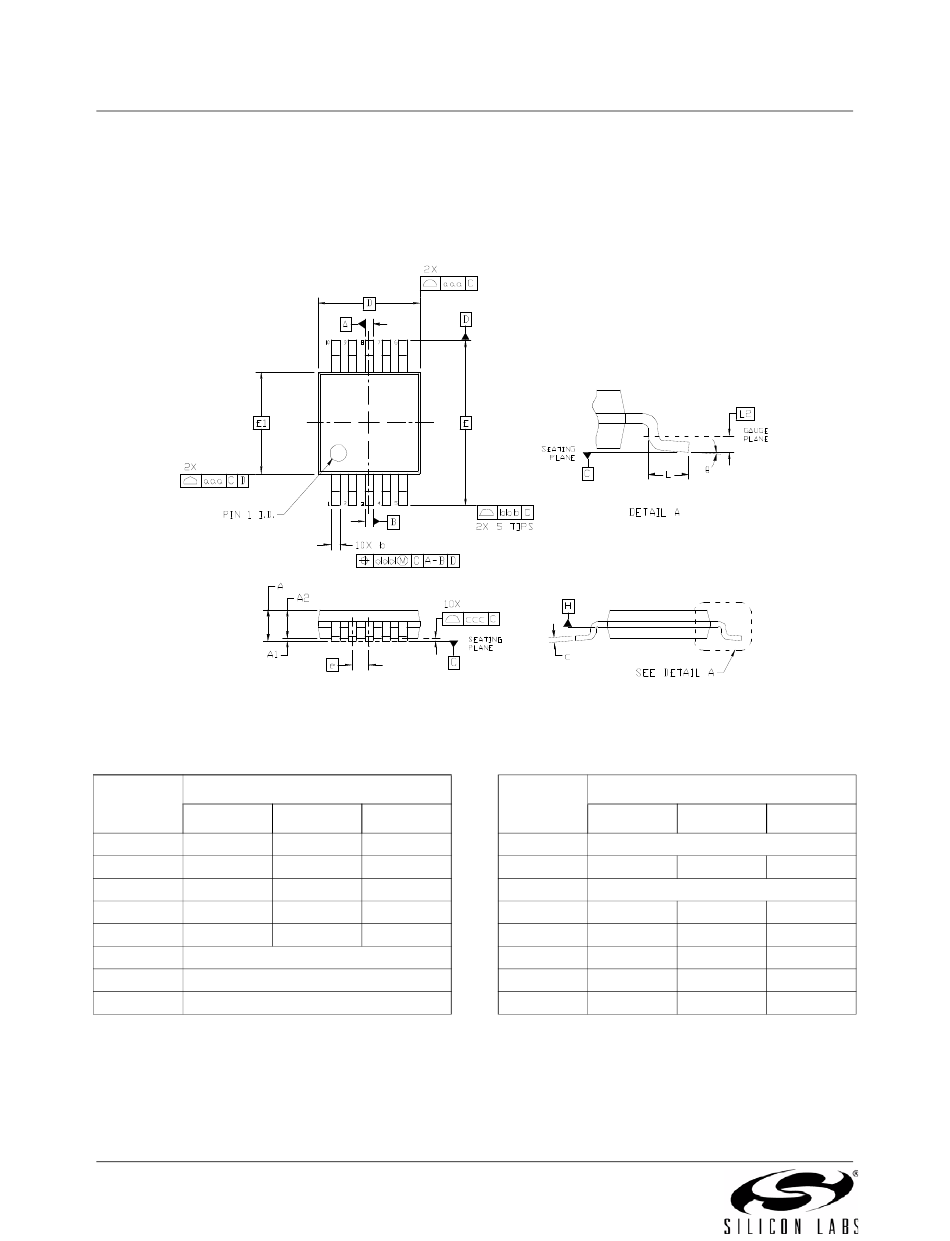

Figure 7.1. 10-Pin MSOP Package

Table 7.1. Package Dimensions

Nom Max
— 1.10
— 0.15
0.85 0.95
— 0.33
— 0.23
3.00 BSC
4.90 BSC
3.00 BSC
Rev. 1.0
Symbol Millimeters
Min
e 0.50 BSC
L 0.40
L2 0.25 BSC
q 0°
aaa —
bbb —
ccc —
ddd —
Nom Max
0.60 0.80
— 8°
— 0.20
— 0.25
— 0.10
— 0.08
