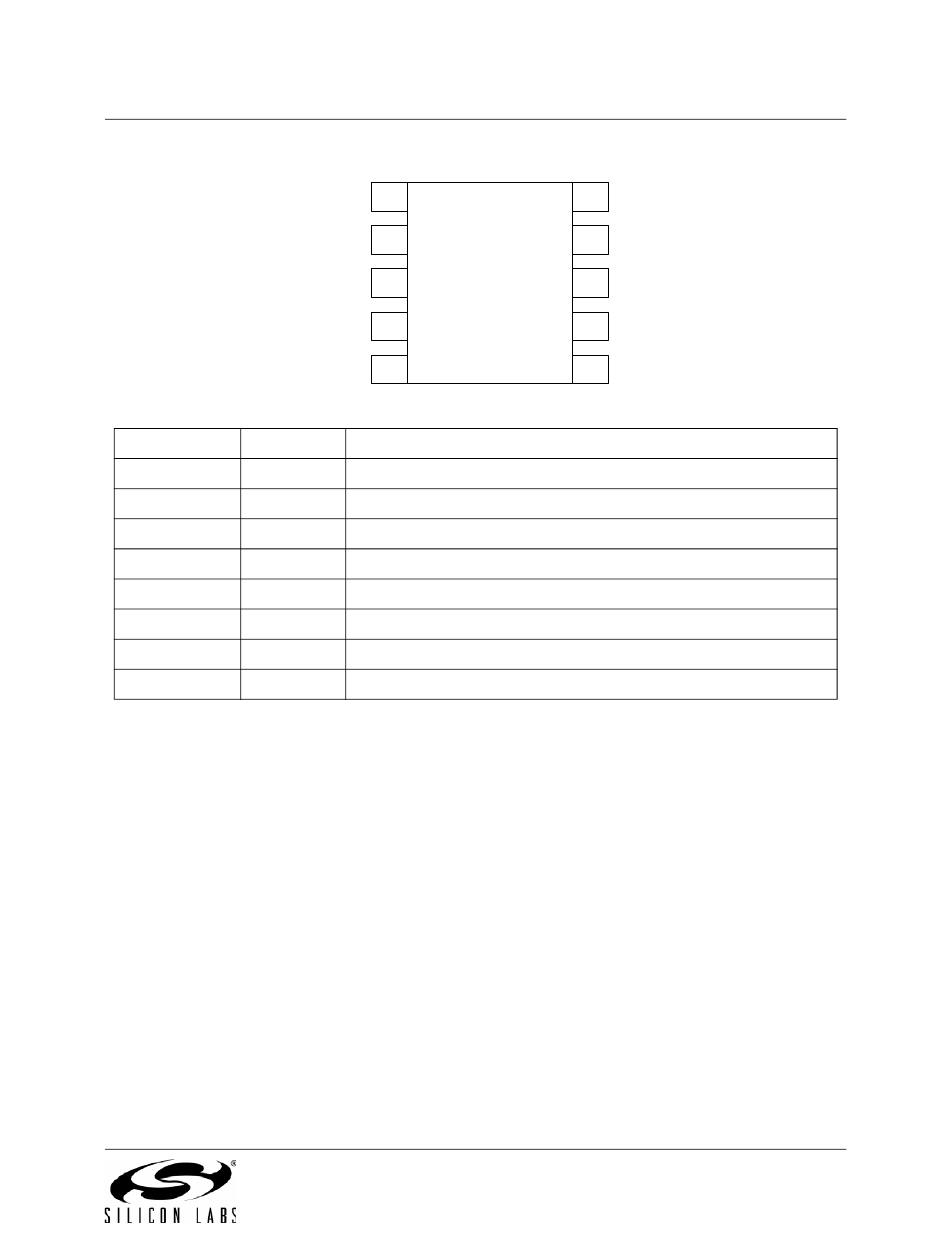

6.2. MSOP, Programming/Debug Mode

VPP/GPIO0/XTAL
Pin Number(s) Name
1 VPP
2 GND
3 TXM
4 TXP
5 VDD
6 C2CLK
7 C2DAT
8, 9, 10 GPIO[3:1]
1
GND 2
Si4010-GT
TXM 3
TXP 4
VDD 5
+6.5 V required for NVM (OTP) Memory programming.
Ground. Connect to ground plane on PCB.
Transmitter differential output.
Transmitter differential output.
Power.
C2 clock interface.
C2 data input/output pin.
General purpose input/output pins.
Rev. 1.0
Si4010-C2
10 GPIO1
9 GPIO2
8 GPIO3
7 C2DAT/GPIO4
6 C2CLK/LED
Description
19
