Si4010 K
EY
B
B
A SE
OARD
1. Purpose
This user's guide describes the use of the Demo Kit and gives the user a brief introduction to the AES
encryption/decryption algorithm. The current version of the firmware does not support remote mode, so it can only
be used in standalone mode without the Wireless Development Suite (WDS).

2. Kit Contents

The kit contains the following items:
Qty
Part Number
1
4010-KFOB-xxx
1
MSC-LCDBB930-AES
1
4355-PRXBxxxB
1
MSC-AT50-xxx
1
MSC-PLPB_1/2/3
1
CR2032
3
AA
1
USB
Rev 0.2 6/12
S i 4 0 1 0 K e y f o b A E S D E M O
F
A E S D
O B
U
'
G
SER
S
U I D E
Si4010 universal key fob for 316.66/433.92/868.3/917 MHz
LCD Base Board with C8051F930 MCU
RF Pico Board with EZRadio chip for 316.66/433.92/868.3/917 MHz
Antenna for 316.66/433.92/868.3/917 MHz
Key fob plastic case
CR2032 Coin Cell battery
1.5 V AA battery
USB mini-B cable

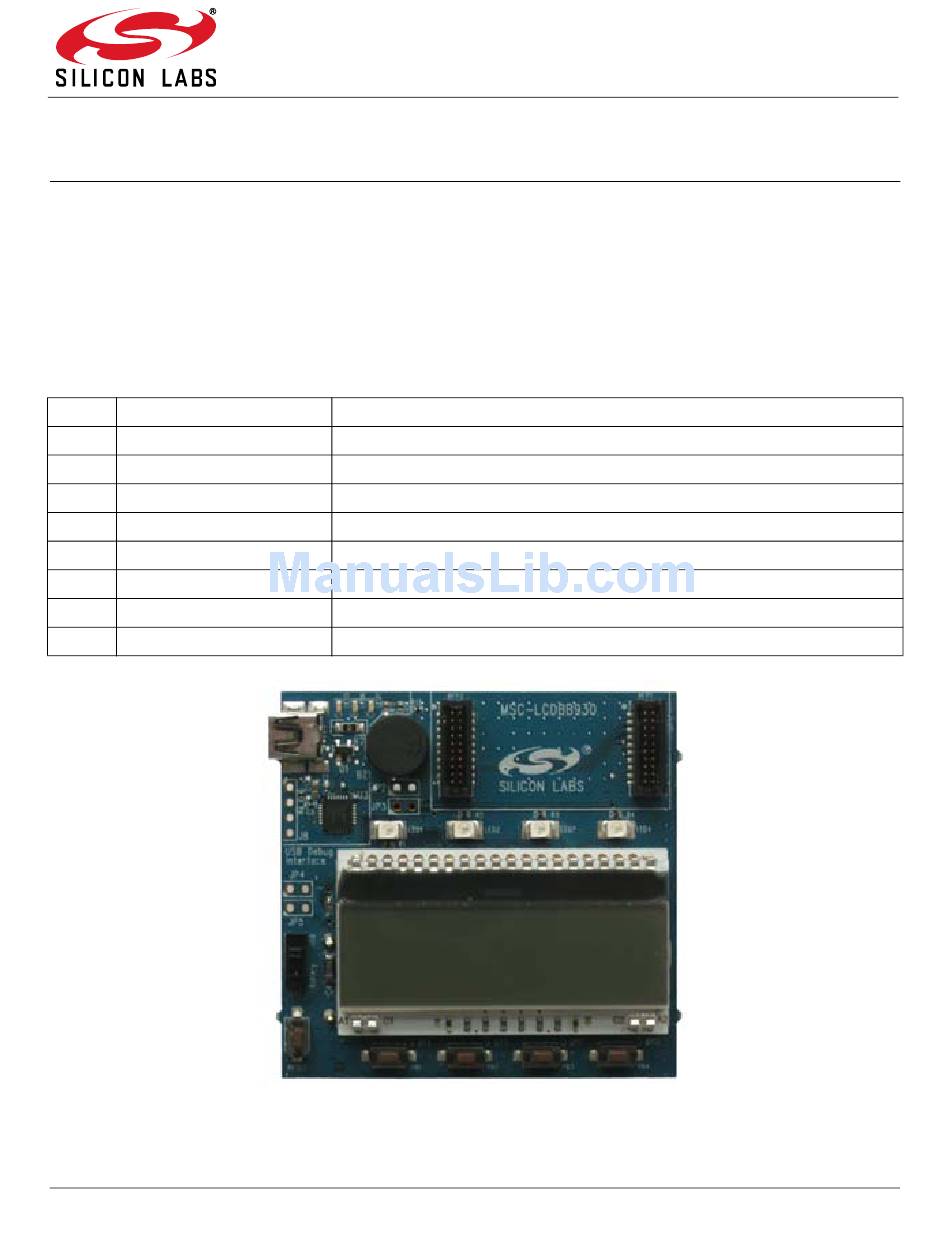

Figure 1. LCD Base Board
Copyright © 2012 by Silicon Laboratories
K
E MO
IT W I T H
Description
EZR
® LCD
ADIO
Si4010 Keyfob AES DEMO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Si4010 and is the answer not in the manual?

Questions and answers

Related Manuals for Silicon Laboratories Si4010

Summary of Contents for Silicon Laboratories Si4010

  • Page 1: Kit Contents

    Wireless Development Suite (WDS). 2. Kit Contents The kit contains the following items: Part Number Description 4010-KFOB-xxx Si4010 universal key fob for 316.66/433.92/868.3/917 MHz MSC-LCDBB930-AES LCD Base Board with C8051F930 MCU 4355-PRXBxxxB RF Pico Board with EZRadio chip for 316.66/433.92/868.3/917 MHz MSC-AT50-xxx Antenna for 316.66/433.92/868.3/917 MHz...
  • Page 2 Si4010 Keyfob AES DEMO Figure 2. RF Pico Board Figure 3. Si4010 Key Fob Rev 0.2...

  • Page 3: Si4010 Key Fob Demo Description

    Si4010 key fob on 316.66/433.9/868.30/917.00 MHz 4. Si4010 Key Fob Demo Description The AES demo utilizes the capabilities of the Si4010 key fob transmitter and the Si4355 EZRadio receiver in order to demonstrate a one-way secure link application. The Si4010 key fob as the transmitter sends radio packets with partially encoded content. At the receiver side an EZRadio receiver, the Si4355 chip receives the packet, then evaluates and decodes it.

  • Page 4: Data Array

    Si4010 Keyfob AES DEMO The fields other than AES part are not encoded. The AES encoded part of the RF packet contains the following encoded fields: Table 2. AES Encoded Fields Temperature Battery Status Rolling Counter Button State PACap value...

  • Page 5: Demo Usage

    Figure 5. Modulation Type Selection To select the modulation type on the Si4010 key fob, refer to "4.2. Selection of Si4010 Key Fob Modulation" on page 3. After the modulation has been chosen, the AES Demo main screen will display as shown in Figure 6.
  • Page 6 Si4010 Keyfob AES DEMO Figure 8. Key Fob Association If the association timeout has not elapsed and an association request packet is received by the radio chip, the encoded part of the packet will be decrypted using an Association Session Key based on an Association Key and the sender ID.
  • Page 7 Si4010 Keyfob AES DEMO If an incoming packet rolling counter is greater than the last given rolling client counter value stored in the base Board RAM by the predefined limit, the client will be removed from the registered list, and a notification screen will be displayed as shown in Figure 12.
  • Page 8 Si4010 Keyfob AES DEMO 6. Schematics This section contains schematics of the RFPico, LCD Base Board, and Si4010 key fob boards included in the kit. High-definition schematics and a complete manufacturing pack with CAD/CAM files and BOMs can be found at www.silabs.com.
  • Page 9 Si4010 Keyfob AES DEMO Rev 0.2...
  • Page 10 Si4010 Keyfob AES DEMO Rev 0.2...
  • Page 11 Si4010 Keyfob AES DEMO Rev 0.2...

  • Page 12: Document Change List

    Si4010 Keyfob AES DEMO OCUMENT HANGE Revision 0.1 to Revision 0.2  Added schematic diagrams.  Modified the purpose description. Rev 0.2...
  • Page 13 Si4010 Keyfob AES DEMO OTES Rev 0.2...
  • Page 14 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
