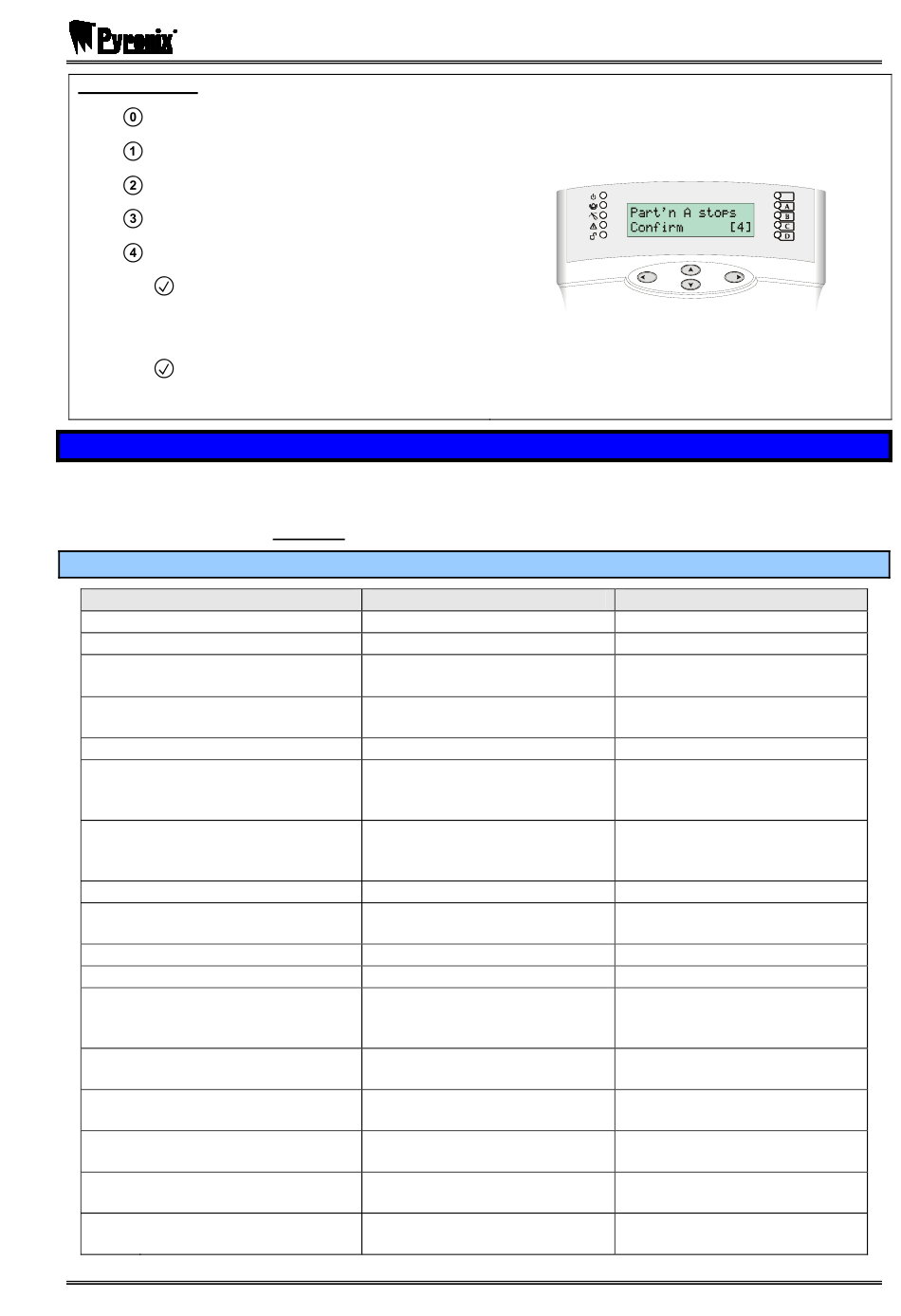

Partition Stops
Enter : for Keypads
Enter : for Internal Sounders
Enter : for Bells Only
Enter : for Digi
Enter : for Confirm
Press the key
Repeat the above 2 steps for each partition, and also
for Fire, Gas, HU and Disarm alarms
Press the key
You will be returned to the Engineer Menu
1 3 . 1 5 C h a n g e O u t p u t s
Any output type may be programmed to any of the systems PGMs. PGMs must be used within their rated
capacity. See page: 23.
NOTE: The PGM Outputs CANNOT be inverted.

13.15.1 PGM Output Types

Type
0000 Not Used
0001 Fire
0002 Hold Up Any
0003 Intruder Any
0004 Final Arm All*
0005 Misoperation Any (Abort)
0006 Confirmed Any
0007 Tamper Any
0008 Duress
0009 HU Device Any
0010 Gas
0011 Arm Fail
0012 Entry Deviation
0013 Secure Intruder Any
0014 Bell Any
0016 Strobe Any
0017 Omit Rearm Any
RINS871-3
P C X S M S A N D P C X 2 5 6 S Y S T E M M A N U A L
Active
At alarm
At a HU or Duress alarm
(This includes keypad HU)
At alarm, while system is
disarmed
When system is FULLY armed
When system is silenced after
any 'intruder' output is
triggered
When further input active in
any partition after 'intruder'
alarm
Any tamper alarm
At a Duress alarm (i.e. from a
keypad)
At alarm on a HU input only
At alarm
Pre-set time after start of exit
time, if exit procedure is not
complete
When deviation from entry
route occurs, during entry time
At alarm, after exit time started,
until disarm
When alarm live
When alarm live
At rearm at end of confirm time
if an input in fault is isolated
Restore
When a valid code is entered
When a valid code is entered
At first valid code entry
At code entry to disarm
After 2 minutes
At next code entry
At code entry to silence
When a valid code is entered
When a valid code is entered
When a valid code is entered
At code entry to rearm
At code entry to disarm
At first valid code entry
When alarm silenced or when
siren timer expires
When alarm silenced or when
strobe timer expires
When system disarmed
