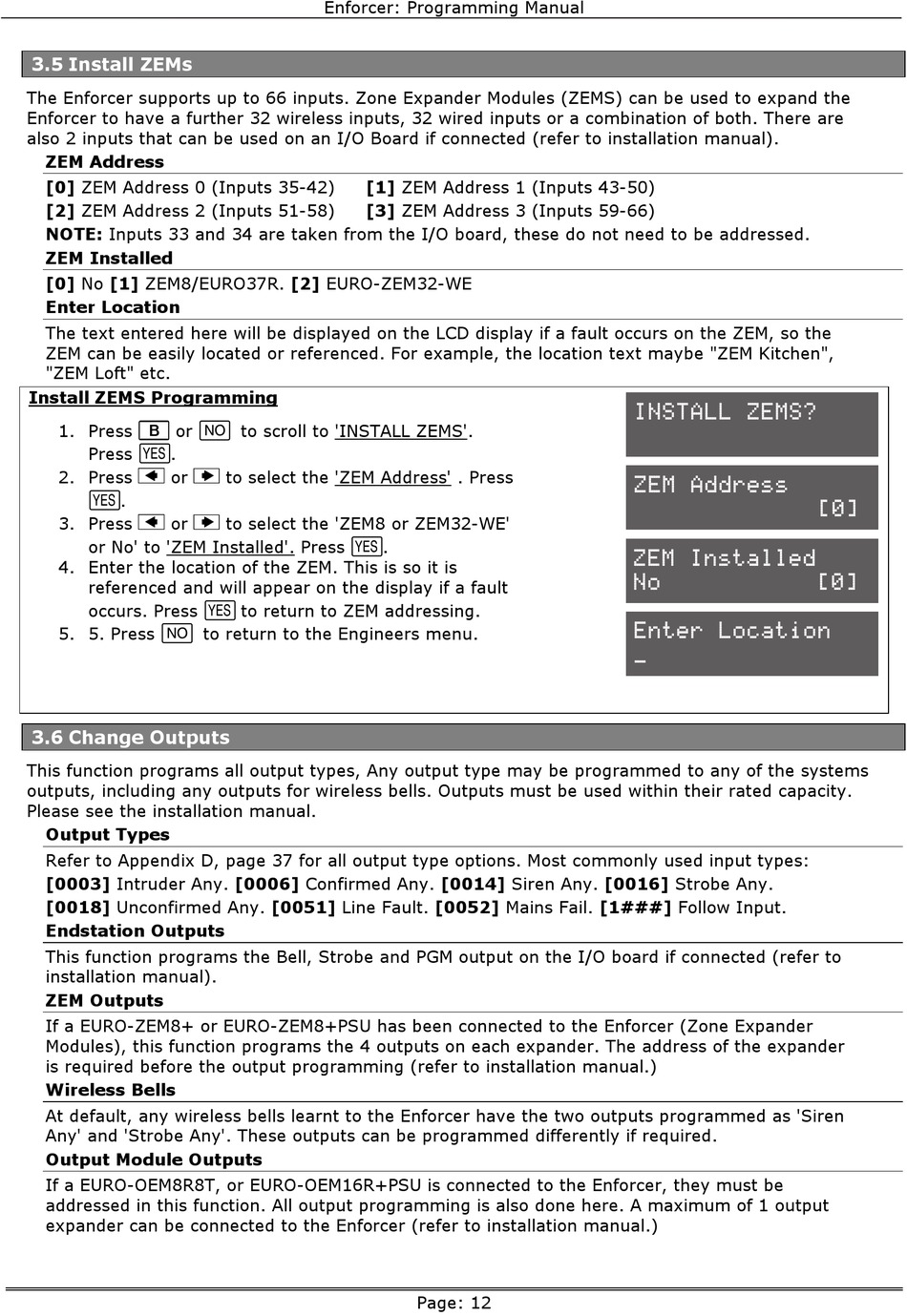

3.5 Install ZEMs

The Enforcer supports up to 66 inputs. Zone Expander Modules (ZEMS) can be used to expand the
Enforcer to have a further 32 wireless inputs, 32 wired inputs or a combination of both. There are
also 2 inputs that can be used on an I/O Board if connected (refer to installation manual).
ZEM Address
[0] ZEM Address 0 (Inputs 35-42)
[2] ZEM Address 2 (Inputs 51-58)
NOTE: Inputs 33 and 34 are taken from the I/O board, these do not need to be addressed.
ZEM Installed
[0] No [1] ZEM8/EURO37R. [2] EURO-ZEM32-WE
Enter Location
The text entered here will be displayed on the LCD display if a fault occurs on the ZEM, so the
ZEM can be easily located or referenced. For example, the location text maybe "ZEM Kitchen",
"ZEM Loft" etc.
Install ZEMS Programming
1. Press or to scroll to 'INSTALL ZEMS'.
Press .
2. Press [ or ] to select the 'ZEM Address' . Press
.
3. Press [ or ] to select the 'ZEM8 or ZEM32-WE'
or No' to 'ZEM Installed'. Press .
4. Enter the location of the ZEM. This is so it is
referenced and will appear on the display if a fault
occurs. Press to return to ZEM addressing.
5. 5. Press to return to the Engineers menu.

3.6 Change Outputs

This function programs all output types, Any output type may be programmed to any of the systems
outputs, including any outputs for wireless bells. Outputs must be used within their rated capacity.
Please see the installation manual.
Output Types
Refer to Appendix D, page 37 for all output type options. Most commonly used input types:
[0003] Intruder Any. [0006] Confirmed Any. [0014] Siren Any. [0016] Strobe Any.
[0018] Unconfirmed Any. [0051] Line Fault. [0052] Mains Fail. [1###] Follow Input.
Endstation Outputs
This function programs the Bell, Strobe and PGM output on the I/O board if connected (refer to
installation manual).
ZEM Outputs
If a EURO-ZEM8+ or EURO-ZEM8+PSU has been connected to the Enforcer (Zone Expander
Modules), this function programs the 4 outputs on each expander. The address of the expander
is required before the output programming (refer to installation manual.)
Wireless Bells
At default, any wireless bells learnt to the Enforcer have the two outputs programmed as 'Siren
Any' and 'Strobe Any'. These outputs can be programmed differently if required.
Output Module Outputs
If a EURO-OEM8R8T, or EURO-OEM16R+PSU is connected to the Enforcer, they must be
addressed in this function. All output programming is also done here. A maximum of 1 output
expander can be connected to the Enforcer (refer to installation manual.)
Enforcer: Programming Manual
[1] ZEM Address 1 (Inputs 43-50)
[3] ZEM Address 3 (Inputs 59-66)
Page: 12
INSTALL ZEMS?
ZEM Address
ZEM Installed
No
Enter Location
_
[0]
[0]
