1 7 . 8 E x t e r n a l T a g R e a d e r ( P C X - P R O X / E X T )
A maximum of 3 external tag readers can be installed onto the PCX 26/SMS system and a maximum of 7
can be installed onto the PCX 256 system.

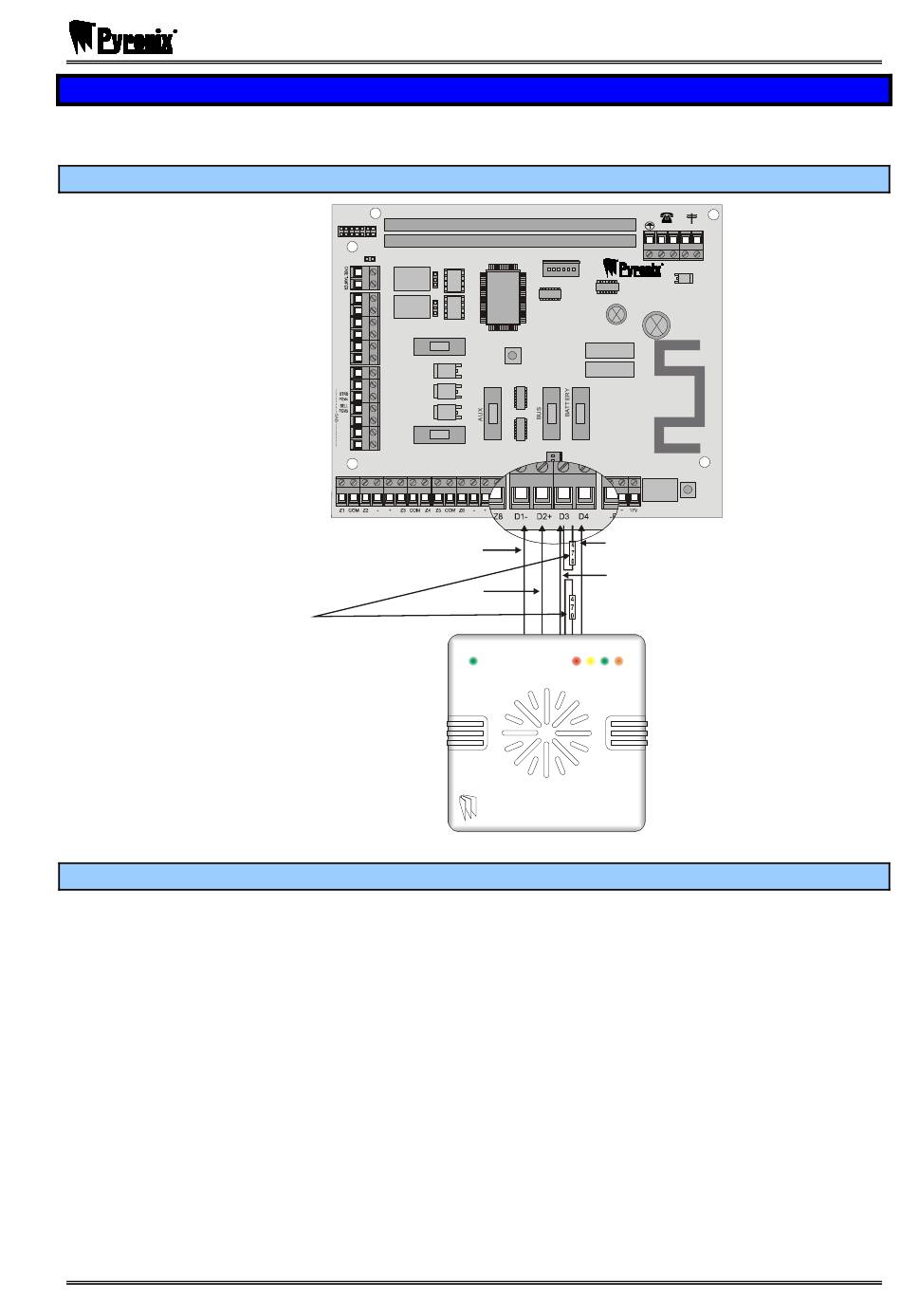

17.8.1 Connecting the PCX-PROX/EXT

470Ω Resistor
connected to
the control panel
and to the device
which is furthest
away
17.8.2 Programming the RED LED to follow a PGM
The RED LED on the PCX-PROX/EXT can be programmed so that it follows an output.
To achieve this, go to 'CHANGE OUTPUTS' and then 'Reader PGMs' and program the first PGM output
(PGM1) to whichever type is required.
For example you may want the Prox to show the system armed, therefore you can use the output "0204:
Final Arm A". The RED LED will then be illuminated once Partition A has armed.
