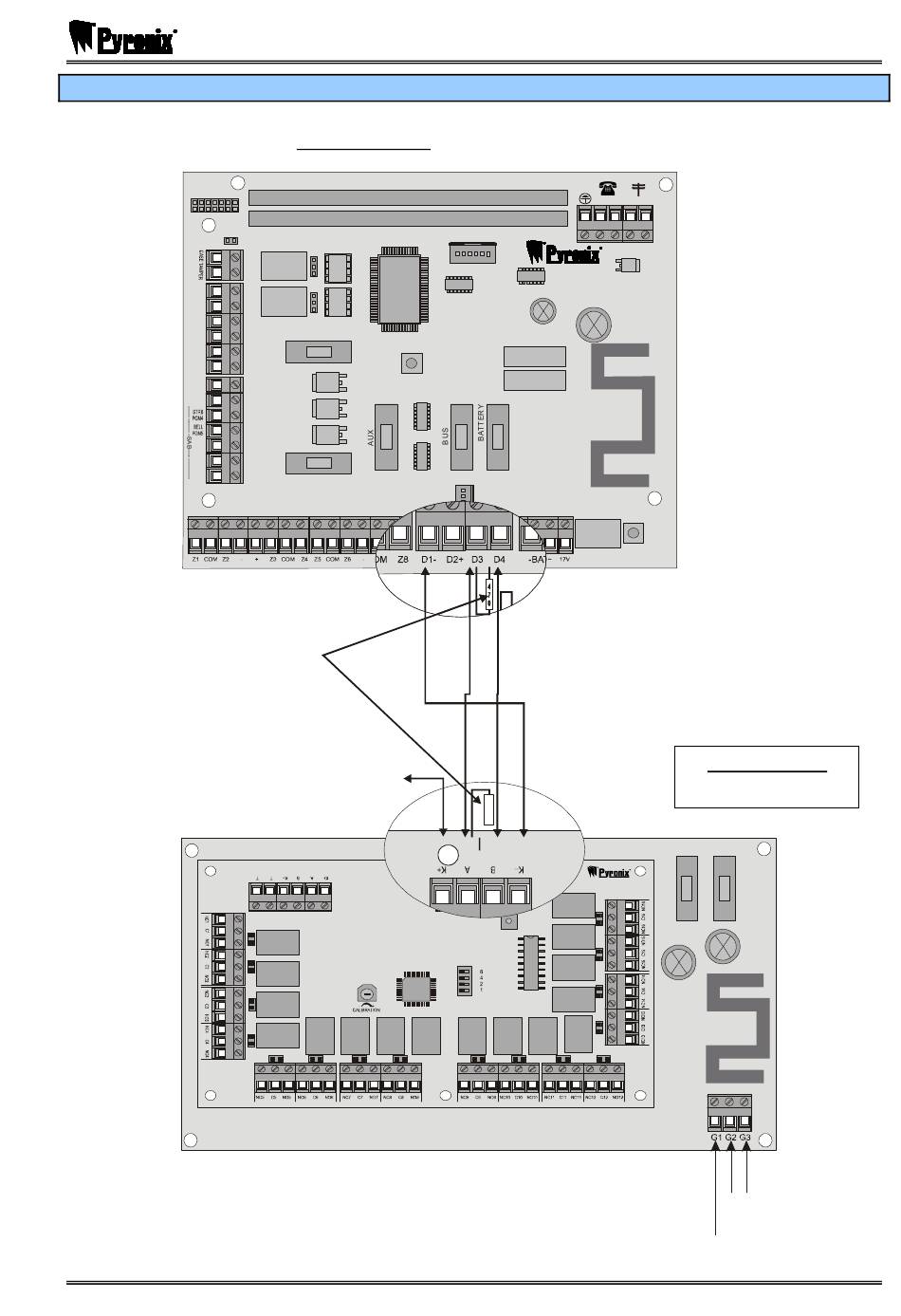

17.12.2 Connecting a PCX-ROX16R/PSU

The PCX-ROX16R/PSU comes with a power supply of 1.5A. Please note that when connecting the ROX
PSU, the terminal "K+" should not be connected to the control panel.
COMMS PGMS
TAMPER
NC1
C1
NO1
NC2
C2
NO2
AUX+
SPK
TR
B-
B+
470Ω Resistor
connected to
the control panel
and to the device
which is furthest
away
THE K+ TERMINAL
MUST NOT BE CONNECTED
TO THE CONTROL PANEL
