Spare Parts

8 Spare Parts
NOTICE
ATTENTION TO REVISION NUMBER DURING
SERVICING
®
The VLT Advanced Harmonic Filter AHF 005/AHF 010
program is constantly optimized, introducing differences
between the individual designs. Vital differences are
managed through revision control of the individual
designs.
Differences between the individual revisions can lead to
different spare parts. It is important to select matching
spare parts according to the revision number of the
actual filter.
The spare part selection tables include a reference to the
matching revision number in the AHF serial number
string.
The specific revision number is identified in the serial
number string of the AHF listed on the nameplate of the
actual filter. Characters 5 and 6 in the serial number
string are the identifiers of the revision number.
Since the introduction of the AHF program, the following
revisions have been introduced:
•
01
•
02
•
03
The current version, featuring variable speed fan, is
identified by revision number 03.
Example:
SN: 0100 03 - 378
Characters 5 and 6 are 03, confirming that this is revision
number 03.

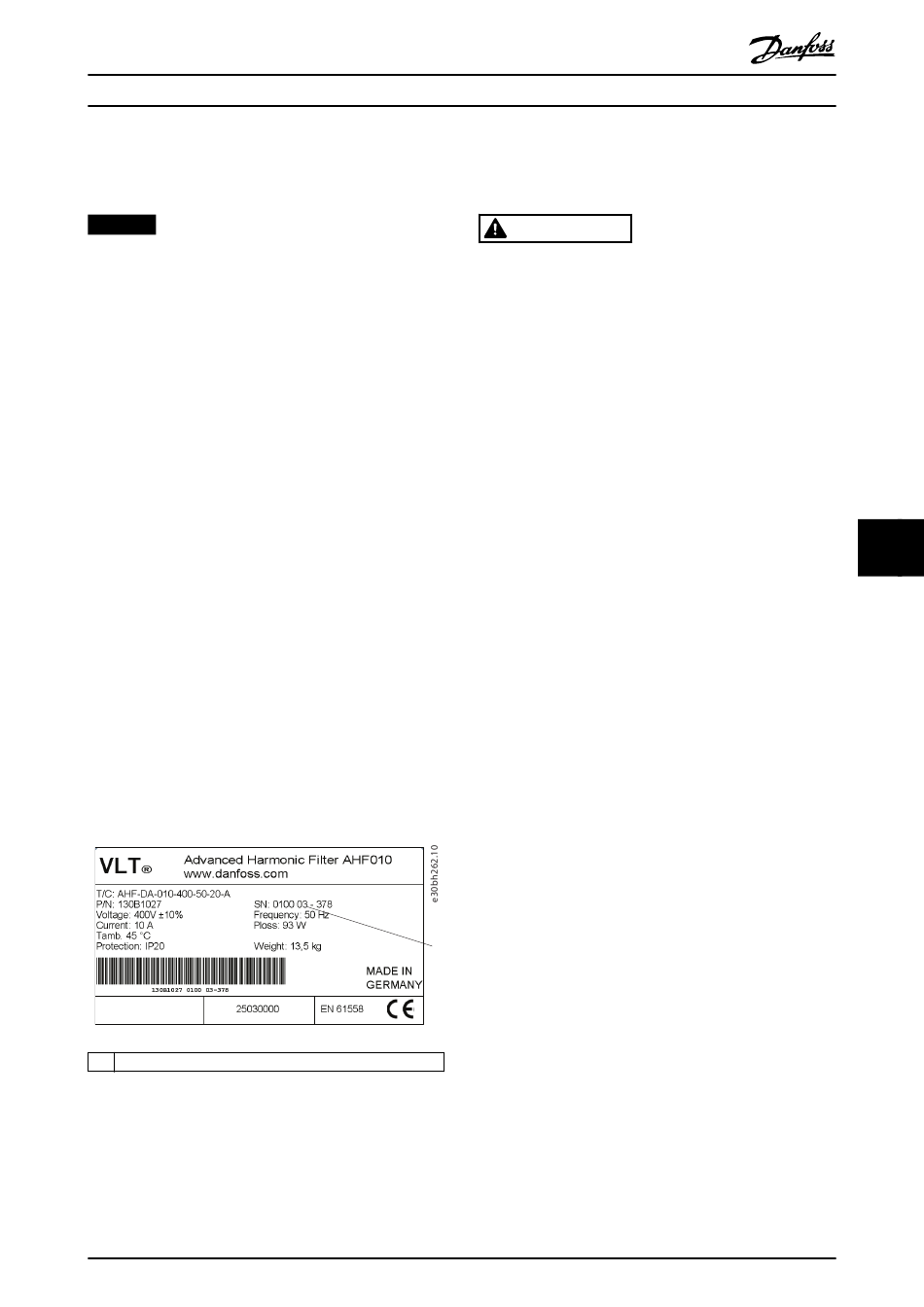

A Identification of revision number
Illustration 8.1 Product Label
MG80C602
Design Guide
WARNING
DISCHARGE TIME
The VLT
contain capacitors. The capacitors can remain charged
even when the filter is not powered. Failure to wait the
specified time after power has been removed before
performing service or repair work can result in death or
serious injury.
1.
2.
3.
4.
A
Danfoss A/S © 05/2019 All rights reserved.
®
Advanced Harmonic Filters AHF 005/AHF 010
Stop the frequency converter and the motor.
Disconnect AC mains, permanent magnet type
motors, remote DC-link supplies including
battery back-ups, UPS, and DC-link connections
to other frequency converters.
Wait the required time specified on the
nameplate, ensuring that the capacitors are
discharged fully, before performing any service
or repair work on the filter.
Before performing any service or repair work on
the filter, ensure that the voltage is 0 between
the filter terminals X3.1, X3.2, and X3.3, and
between the filter terminals X4.1, X4.2, and
X4.3.
8 8
