Specifications
372±2.5 mm [14.6±0.10 in]
Ø34.7 mm [1.4 in]
Ø22.5 mm [0.9 in]
Ø63.3 mm [2.5 in]
418±2.5 mm [16.5±0.10 in]

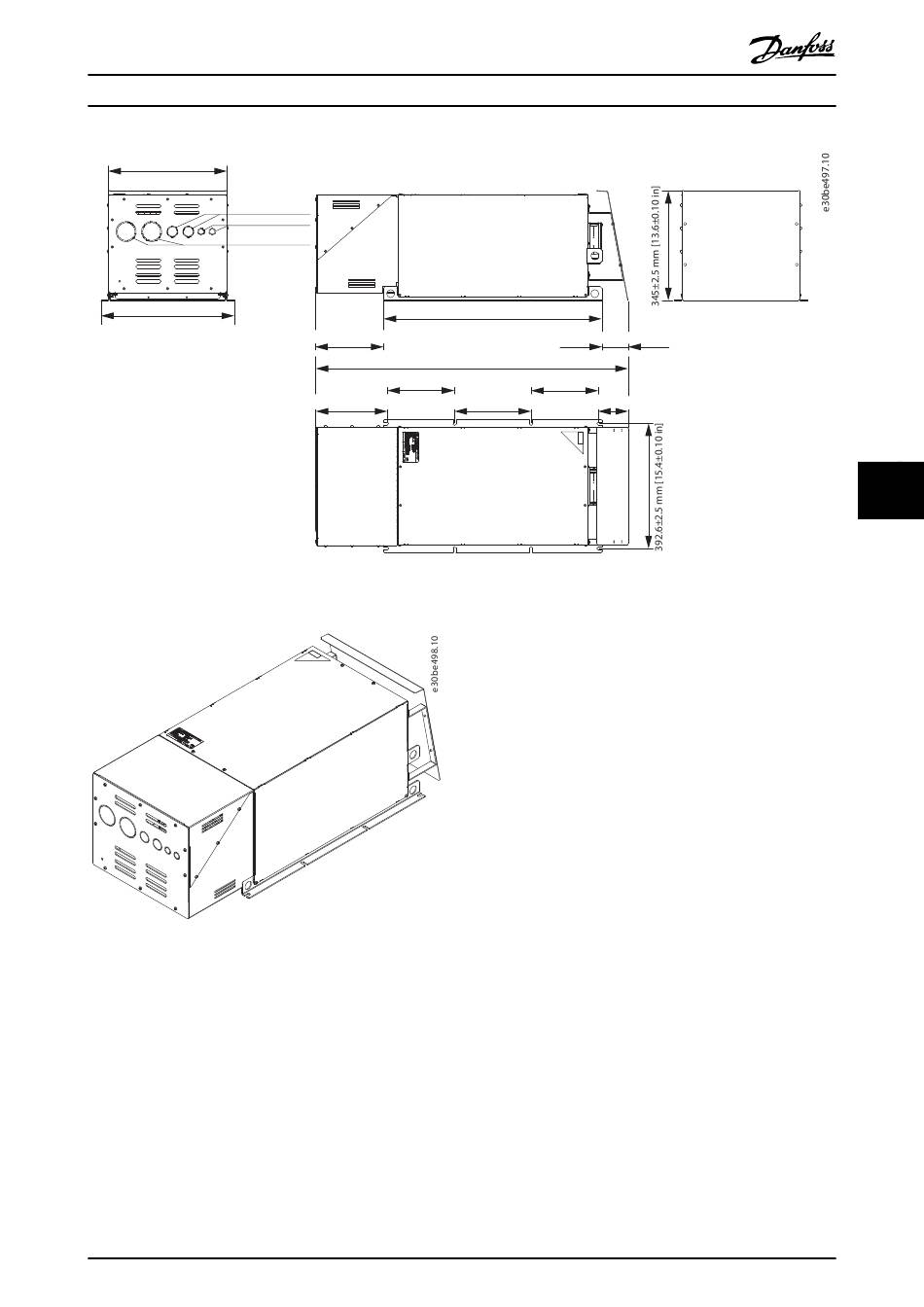

Illustration 7.42 IP21 X5-V3 Internal and External Fan
Illustration 7.43 IP21 X5-V3 Internal and External Fan, 3D View
MG80C602
Design Guide
685±2.5 mm [27.0±0.10 in]
214.5±2.5 mm [8.4±0.10 in]
981.5±2.5 mm [38.6±0.10 in]
210.5±2.5 mm [8.3±0.10 in]
226.5±2.5 mm [8.9±0.10 in] 240±2.5 mm [9.4±0.10 in]
