- Page 1 Installation Guide Advanced Active Filter AAF 007 drives.danfoss.com...

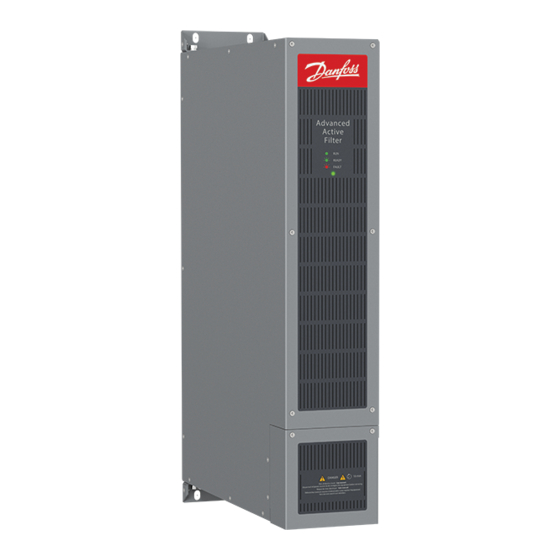

- Page 3 1.2 Intended Use The Advanced Active Filter AAF 007 is intended to be used in electrical installations to improve power quality. To achieve an im- proved power quality, the filter injects currents in counter-phase to mitigate distortions on the grid.
- Page 4 Advanced Active Filter AAF 007 Installation Guide Instructions Illustration 1: Filter Module Label, Example for 55 A Unit The nameplate is delivered with the order as a separate item and must be placed on the filter highly visible after installation.
-
Page 5: Shock Hazard
Advanced Active Filter AAF 007 Installation Guide Instructions 1.6 Installing the Filter W A R N I N G SHOCK HAZARD Touching hazardous live parts can result in death or serious injury. This IP20/open type filter does not provide protection against direct contact to hazardous live parts. It is intended to be in- stalled inside a supplementary enclosure or in a restricted-access area which provides appropriate protection against electric shock. -
Page 6: Parallel Installation
1.8 Current Transducers The Advanced Active Filter AAF 007 needs extra current transducers (CTs). The possible installations of the CTs are on the mains side/closed loop, which measures the mains current, including the filter output current, and on the load side/open loop, which measures just the load current without the filter current. - Page 7 Do not connect the neutral wire in 3-wire applications. 1.10 Power Losses and Efficiency For power loss data including part load losses, see https://ecosmart.mydrive.danfoss.com. 1.11 Cable and Fuse Specifications The filter is protected internally with semiconductor fuses. Branch protection is subject to local installation conditions and regula- tions, and thus no recommendations can be made.
- Page 8 Advanced Active Filter AAF 007 Installation Guide Instructions 35 A module 55 A module Torque 0.8 Nm (7.1 in-lb) 0.8 Nm (7.1 in-lb) Internal semiconductor fuse Sinofuse RS308-HB-4G100A 750VDC Sinofuse RS308-HB-4G100A 750VDC 8 | Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283...
- Page 9 Advanced Active Filter AAF 007 Installation Guide 2 Illustrations CT_A CT_B DVC As CT_C AAF 007 RS-485+ RS-485- DVC As GND_O Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283 | 9...
- Page 10 Advanced Active Filter AAF 007 Installation Guide AC Drive CT_A CT_B CT_C AAF 007 CT_A Address No. 1 CT_B CT_C RS-485+ RS-485- AAF 007 GND_O CT_A CT_B Address No. 2 CT_C RS-485+ RS-485- AAF 007 +7.5V GND_O CT_A Address No. 3...
- Page 11 Advanced Active Filter AAF 007 Installation Guide 55 A: ≥180 mm (7.1 in) 35 A: ≥180 mm (7.1 in) ≥100 mm (3.9 in) Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283 | 11...
- Page 12 Advanced Active Filter AAF 007 Installation Guide 35 A: ≥180 mm (7.1 in) 55 A: ≥180 mm (7.1 in) ≥100 mm (3.9 in) ≥100 mm (3.9 in) 12 | Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283...
- Page 13 Advanced Active Filter AAF 007 Installation Guide 18.5 18.5 CT_A CT_B CT_C Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283 | 13...
- Page 14 Advanced Active Filter AAF 007 Installation Guide Filter Module 1 CT_A1 Filter Module 2 CT_A2 14 | Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283...
- Page 15 Advanced Active Filter AAF 007 Installation Guide Filter Module 1 CT_A1 Filter Module 2 CT_A2 Filter Module 3 CT_A3 Grid Load CT_X AAF 007 Grid Load CT_A AAF 007 Grid Load CT_A AAF 007 Danfoss A/S © 2023.01 AN430846972679en-000101 / 130R1283 | 15...
-
Page 16: Eu Declaration Of Conformity
Title: Head of Customized Drives Danfoss only vouches for the correctness of the English version of this declaration. In the event of the declaration being translated into any other language, the translator concerned shall be liable for the correctness of the translation... - Page 17 Title: Head of Customized Drives Danfoss only vouches for the correctness of the English version of this declaration. In the event of the declaration being translated into any other language, the translator concerned shall be liable for the correctness of the translation...
- Page 18 Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
