7.2 Environmental Data

Ambient temperature during operation
Temperature during storage and transpor-
tation
Maximum altitude above sea level
Relative humidity
Resonance search
Sine vibration test
Packaging
Enclosure protection rating
7 7
Approvals
Standards
Table 7.2 Environmental Data
1) UL only for 460 V/60 Hz and 600 V/60 Hz versions. UL listing card reference ID number: E134261
Load in %
110
100
90
80
70
60
40

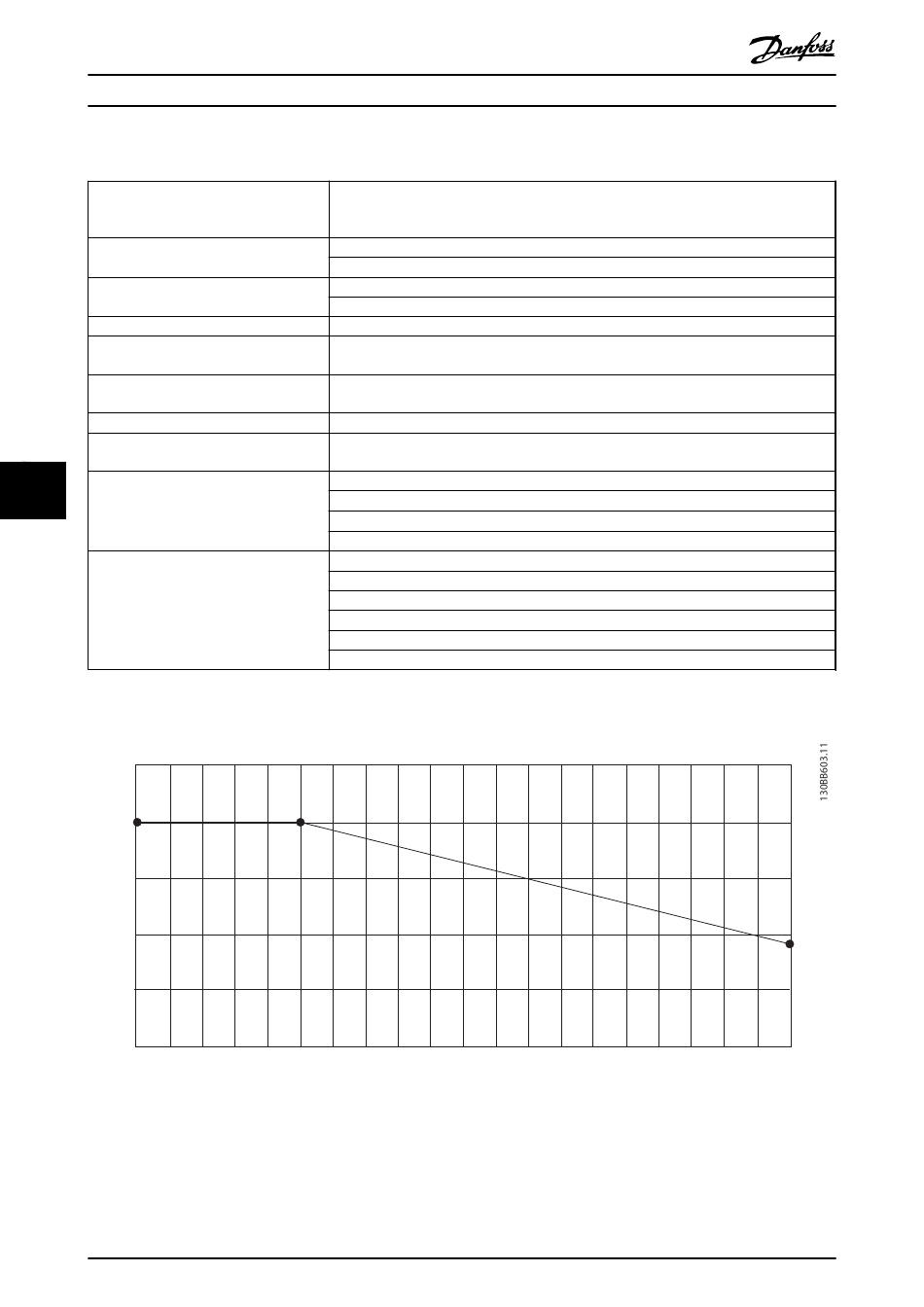

Illustration 7.1 Temperature Derating Curve
50
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
5–45 °C (41–113 °F) without derating
45–60 °C (113–140 °F) with derating 1.5% per °C.
See derating curve in Illustration 7.1
Transport: -25 °C to +65 °C (-13 °F to +149 °F)
Storage: -25 °C to +55 °C (-13 °F to 131 °F)
1000 m (3280 ft) without derating
1000–4000 m (3280–13123 ft) with derating 5% per 1000 m (3280 ft)
Humidity class F without condensation 5–85% - Class 3K3 (non-condensing) during operation
Base standard: DIN EN 600068-2-6
Test specification: 5 Hz, 150 Hz, 3 directions (0.5 g, 0.1 g, 0.5 g)
Base standard: DIN EN 600068-2-6
Test specification: 5–13.2 Hz, 150 Hz (2 mm (0.08 in) peak to peak 0.7 g)
ISPM 15
IP20
Optional IP21/NEMA1 upgrade kits
CE
The Low Voltage Directive
UL 1)
UL SCCR 100 kA
Radiated Immunity, IEC 61800-3, 2012 edition 2.1
Burst, EN 61000-4-4
Surge, EN 61000-4-5
ESD, EN 61000-4-2
Radiated Field-CM, IEC 61800-3, 2012 edition 2.1
PELV in accordance to EN 61800-5-1 for the temperature switches
45 50
Ambient temperature in °C
