Specifications

7.4.2 IP20 Enclosures

Mechanical drawings in 2D PDF, 2D DWG, and 3D STEP can be downloaded from www.danfoss.com.
PE M6 (10Nm)
37.5±1.0 mm [1.5± 0.04 in]

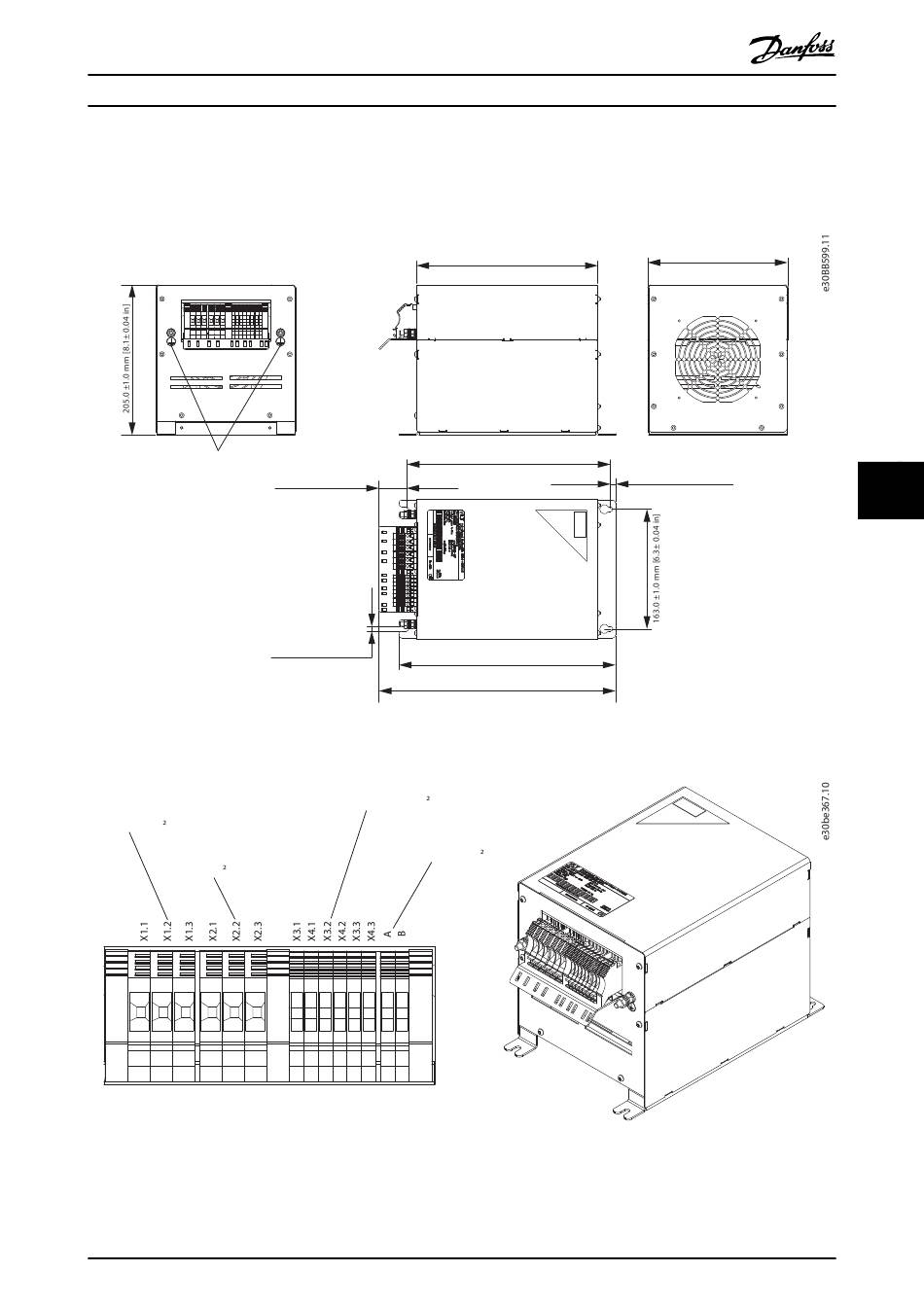

Illustration 7.2 IP20 X1-V3 Internal Fan
X1 Mains 6mm (1.6Nm)
X2 Drive 6mm (1.6Nm)
Illustration 7.3 IP20 X1-V3 Internal Fan, Terminal Designation and 3D View
MG80C602
Design Guide
6.5 ±1.0 mm [0.3±0.04 in]
X3/X4 Capacitor disconnect 2.5mm (0.8Nm)
A/B Temperature 2.5mm (0.8Nm)
Danfoss A/S © 05/2019 All rights reserved.
247.0 ±1.0 mm [9.7± 0.04 in]
277.8±1.0 mm [10.9± 0.04 in]
295.0 ±2.5 mm [11.6± 0.10 in]
322.0 ±2.5 mm [12.7± 0.10 in]
190.5 ±1.0 mm [7.5± 0.04 in]
6.8 ±1.0 mm [0.3± 0.04 in]
7 7
65
