Specifications

7.4.3 IP21 Enclosures

Mechanical drawings in 2D PDF, 2D DWG, and 3D STEP can be downloaded from www.danfoss.com.
NOTICE
The illustrations in chapter 7.4.3 IP21 Enclosures are displaying the complete unit: The AHF IP20 filter with the matching
optional IP21/NEMA 1 upgrade kit mounted. The illustrations all show filters with external fan, but the dimensions are
valid for filters with both internal and external fan. Always mount the AHF according to the definitions valid for the
basic AHF IP20 unit.
195±1.0 mm [7.7±0.04 in]
Ø26.3 mm [1.0 in]
Ø22.5 mm [0.9 in]

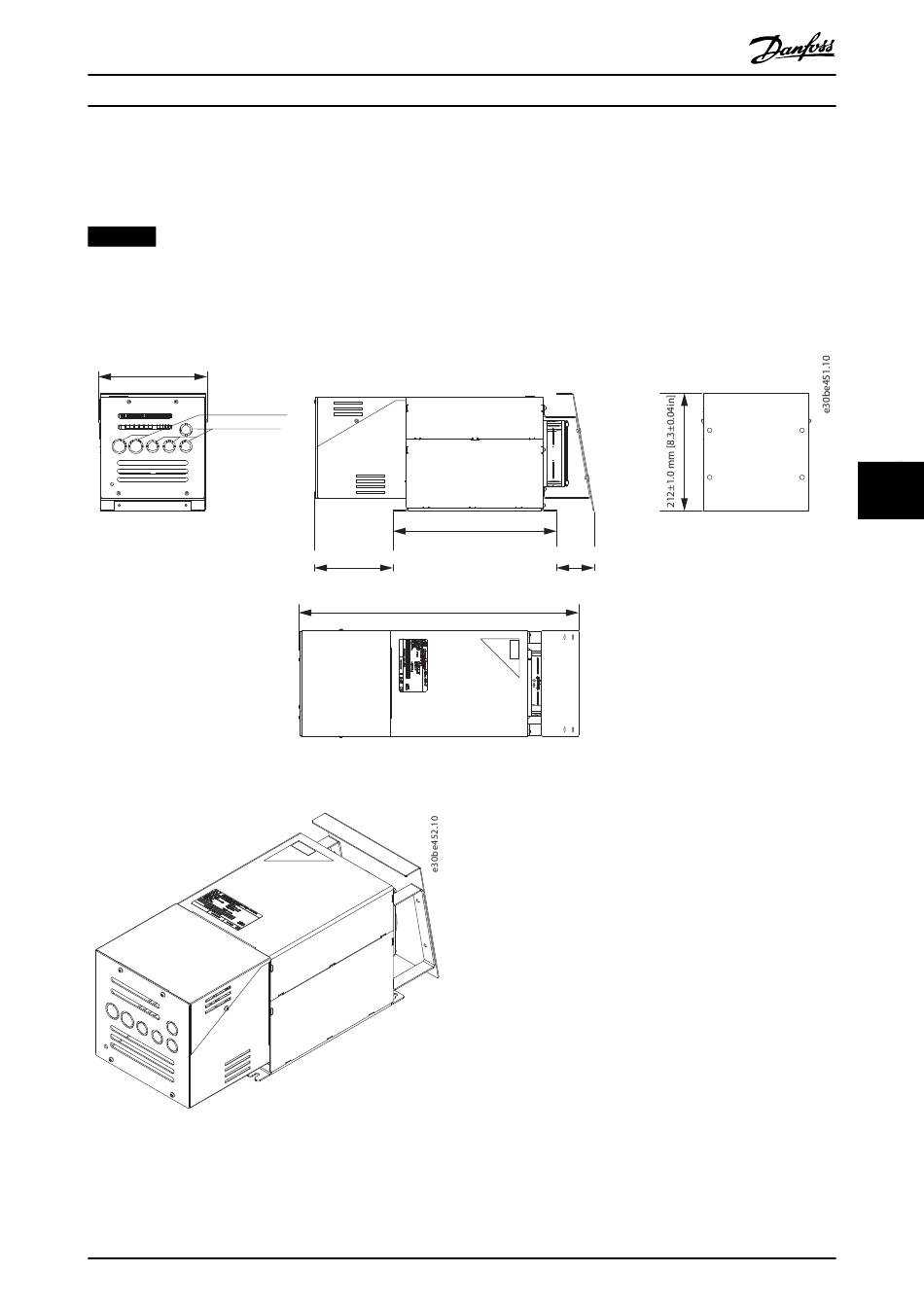

Illustration 7.34 IP21 X1-V3 Internal and External Fan
Illustration 7.35 IP21 X1-V3 Internal and External Fan, 3D View
MG80C602
Design Guide
295±1.0 mm [11.6±0.04 in]
141.7±1.0 mm [5.6±0.04 in]
505±4.0 mm [19.9±0.16 in]
Danfoss A/S © 05/2019 All rights reserved.
68.3±1.0 mm [2.7±0.04 in]
