Specifications
7 7

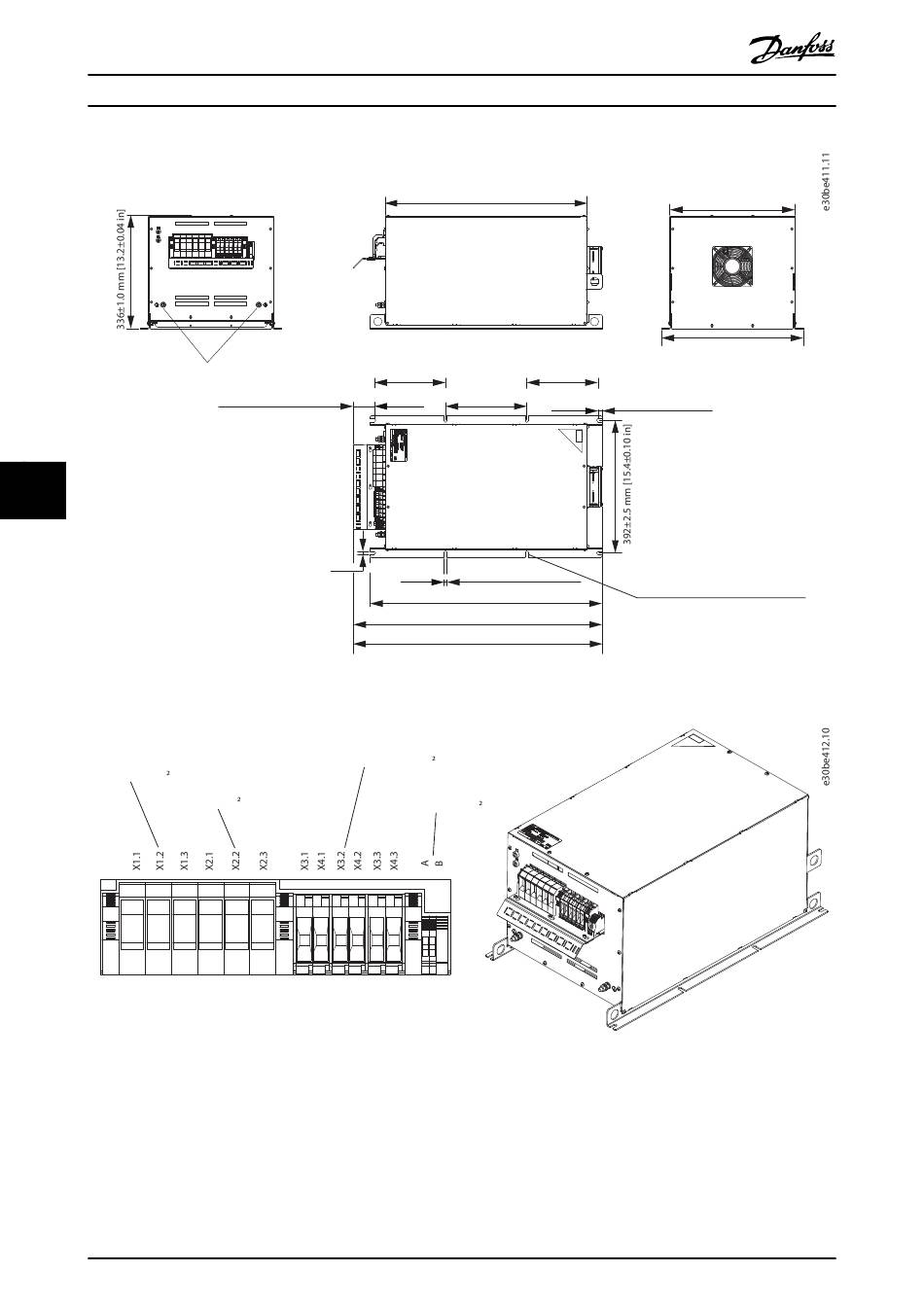

Illustration 7.20 IP20 X5-V3 External Fan
X1 Mains 50mm (5Nm)
X2 Drive 50mm (5Nm)
Illustration 7.21 IP20 X5-V3 External Fan, Terminal Designation and 3D View
74
PE M8 (15Nm)
62.8±1.0 mm [2.5±0.04 in]
9±2.5 mm [0.4±0.10 in]
X3/X4 Capacitor disconnect 16mm (3.5Nm)
Danfoss A/S © 05/2019 All rights reserved.
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
597±2.5 mm [23.5±0.10 in]
210.5±1.0 mm [8.3±0.04 in] 210±1.0 mm [8.3±0.04 in]
240±1.0 mm [9.4±0.04 in]
9±2.5 mm [0.4±0.10 in]
685±2.5 mm [27±0.10 in]
735.8±2.5 mm [29±0.10 in]
736.2±2.5 mm [29±0.10 in]
A/B Temperature 2.5mm (0.8Nm)
370±1.0 mm [14.6±0.04 in]
418±2.5 mm [16.5±0.10 in]
12.5±1.0 mm [0.5±0.04 in]
8 holes must be used to fix the AHF
with M8 screws
