Specifications
PE M8 (15Nm)
57.5±1.0 mm [2.3± 0.04 in]
9.0±1.0 mm [0.4± 0.04 in]
Illustration 7.10 IP20 X3-V3 Internal Fan
X3/X4 Capacitor disconnect 10mm (2.4Nm)
X1 Mains 16mm (3.5Nm)
X2 Drive 16mm (3.5Nm)

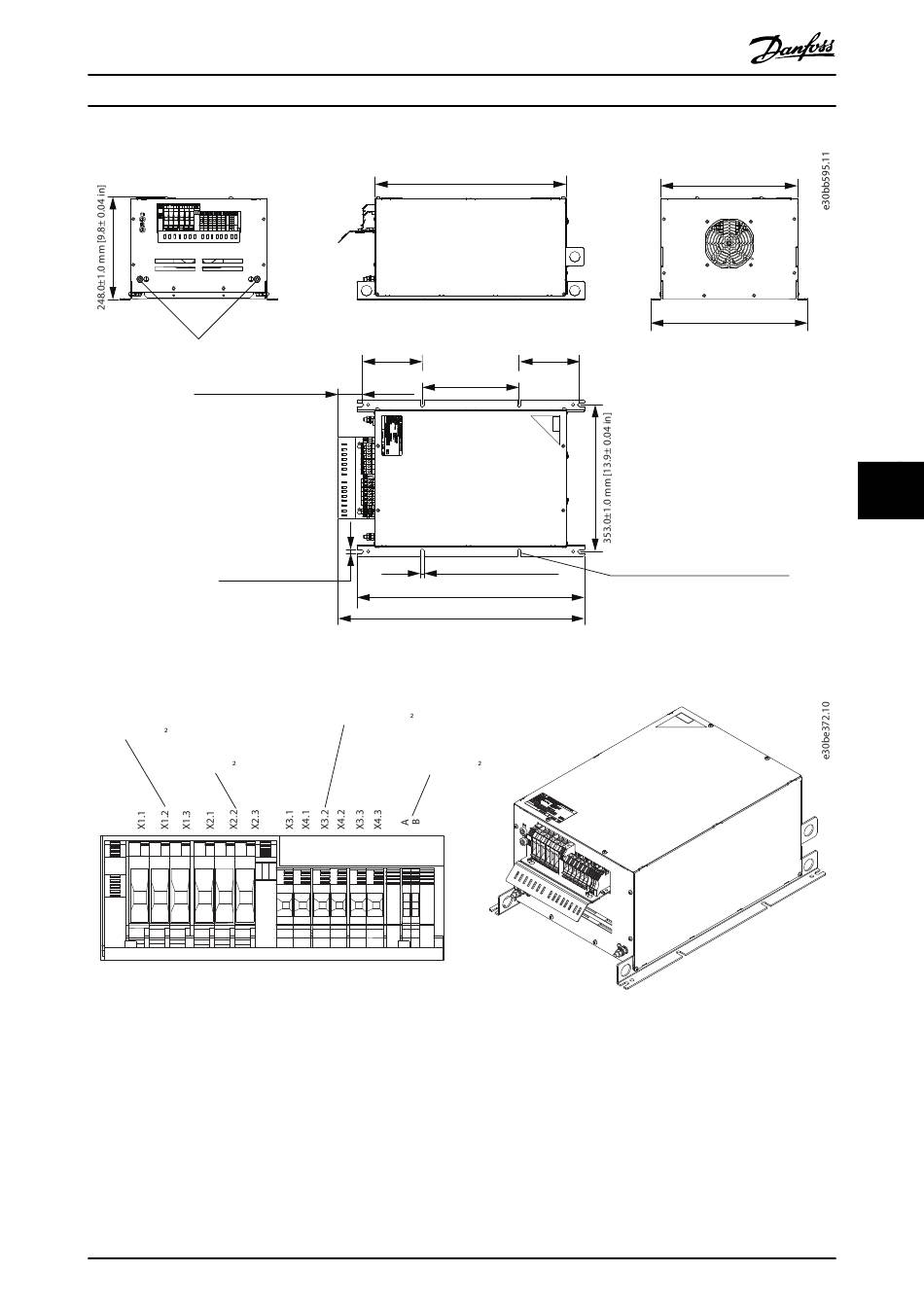

Illustration 7.11 IP20 X3-V3 Internal Fan, Terminal Designation and 3D View
MG80C602
Design Guide
460.0±2.5 mm [18.1± 0.10 in]
145.0±1.0 mm [5.7± 0.04 in] 145.0±1.0 mm [5.7± 0.04 in]
233.0±1.0 mm [9.2± 0.04 in]
9.0±1.0 mm [0.4± 0.04 in]
547.0±2.5 mm [21.5± 0.10 in]
592.5±2.5 mm [23.3± 0.10 in]
A/B Temperature 2.5mm (0.8Nm)
Danfoss A/S © 05/2019 All rights reserved.
330.0±1.0 mm [13.1± 0.04 in]
378.0±1.0 mm [14.9± 0.04 in]
8 holes must be used to fix the AHF
with M8 screws
