Specifications
PE M8 (15Nm)
55.5±1.0 mm [2.2±0.04 in]
9.0±1.0 mm [0.4±0.04 in]

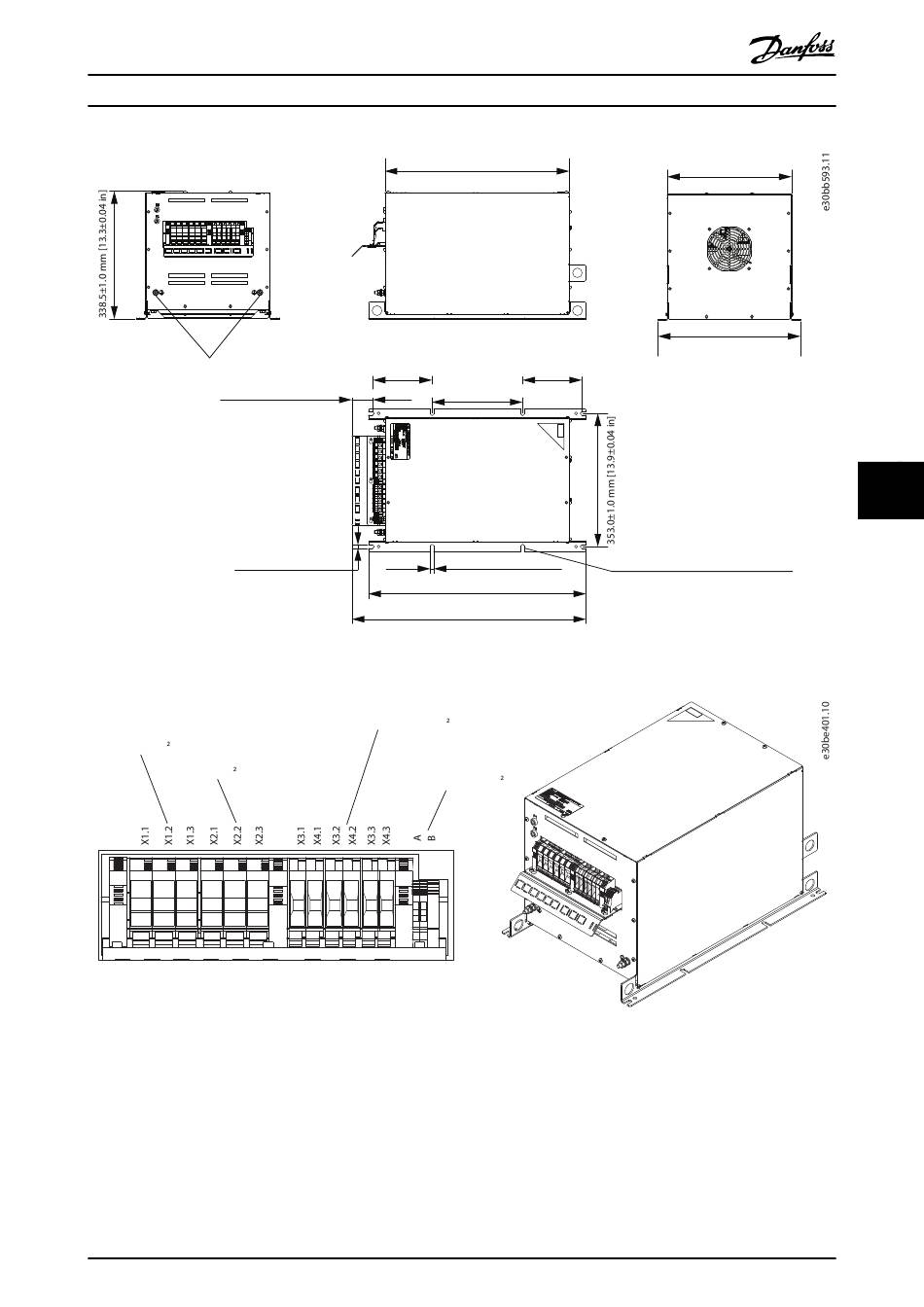

Illustration 7.14 IP20 X4-V3 Internal Fan
X1 Mains 35mm (4Nm)
X2 Drive 35mm (4Nm)
Illustration 7.15 IP20 X4-V3 Internal Fan, Terminal Designation and 3D View
MG80C602
Design Guide
489.0±2.5 mm [19.3±0.10 in]
157.0±1.0 mm [6.2±0.04 in]
240.0±1.0 mm [9.4±0.04 in]
9.0±1.0 mm [0.4±0.04 in]
577.0±2.5 mm [22.7±0.10 in]
621.0±2.5 mm [24.4±0.10 in]
X3/X4 Capacitor disconnect 16mm (3.5Nm)
A/B Temperature 2.5mm (0.8Nm)
Danfoss A/S © 05/2019 All rights reserved.
330.0±1.0 mm [13.0±0.04 in]
378.0±1.0 mm [14.9±0.04 in]
157.0±1.0 mm [6.2±0.04 in]
8 holes must be used to fix the AHF
with M8 screws
