Danfoss AHF 010 Design Manual page 80

Specifications
PE M12 (25Nm)
7 7

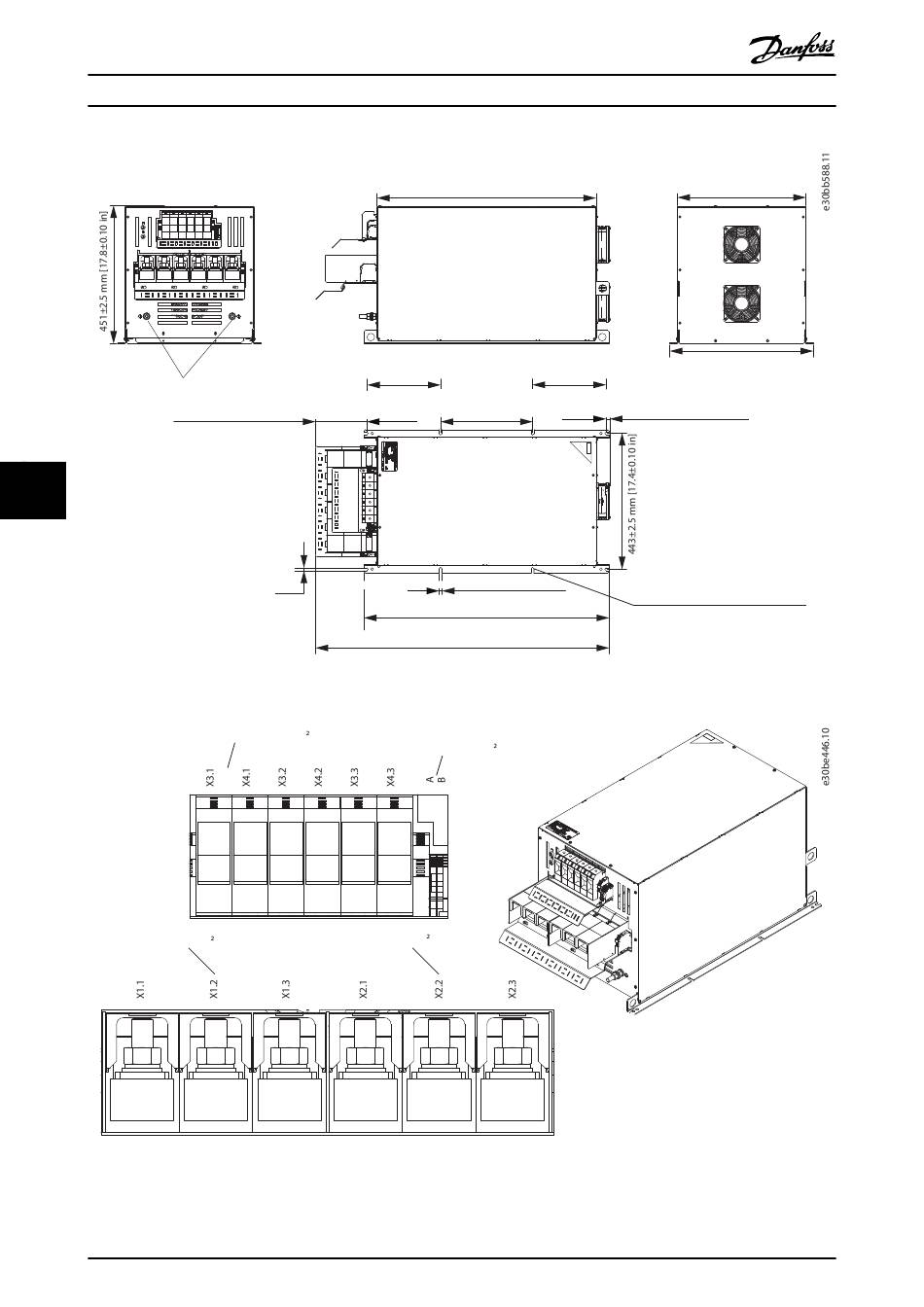

Illustration 7.28 IP20 X7-V3 External Fan
X3/X4 Capacitor disconnect 120mm (18Nm)
X1 Mains 300mm (50Nm)
Illustration 7.29 IP20 X7-V3 External Fan, Terminal Designation and 3D View
78
240±1.0 mm [9.4±0.039 in]
167.5±1.0 mm [6.6±0.04 in]
9±1.0 mm [0.4±0.04 in]
Danfoss A/S © 05/2019 All rights reserved.
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
715±2.5 mm [28.1±0.10 in]
240±1.0 mm [9.4±0.04 in]
300±1.0 mm [11.8±0.04 in]
9±1.0 mm [0.4±0.04 in]
800±2.5 mm [31.5±0.10 in]
957.5±4.0 mm [37.7±0.16 in]
A/B Temperature 2.5mm (0.8Nm)
X2 Drive 300mm (50Nm)
420±2.5 mm [16.5±0.10 in]
468±2.5 mm [18.4±0.10 in]
11.9±1.0 mm [0.5±0.04 in]
8 holes must be used to fix the AHF
with M8 screws
MG80C602
