Specifications
PE M6 (10Nm)
7 7

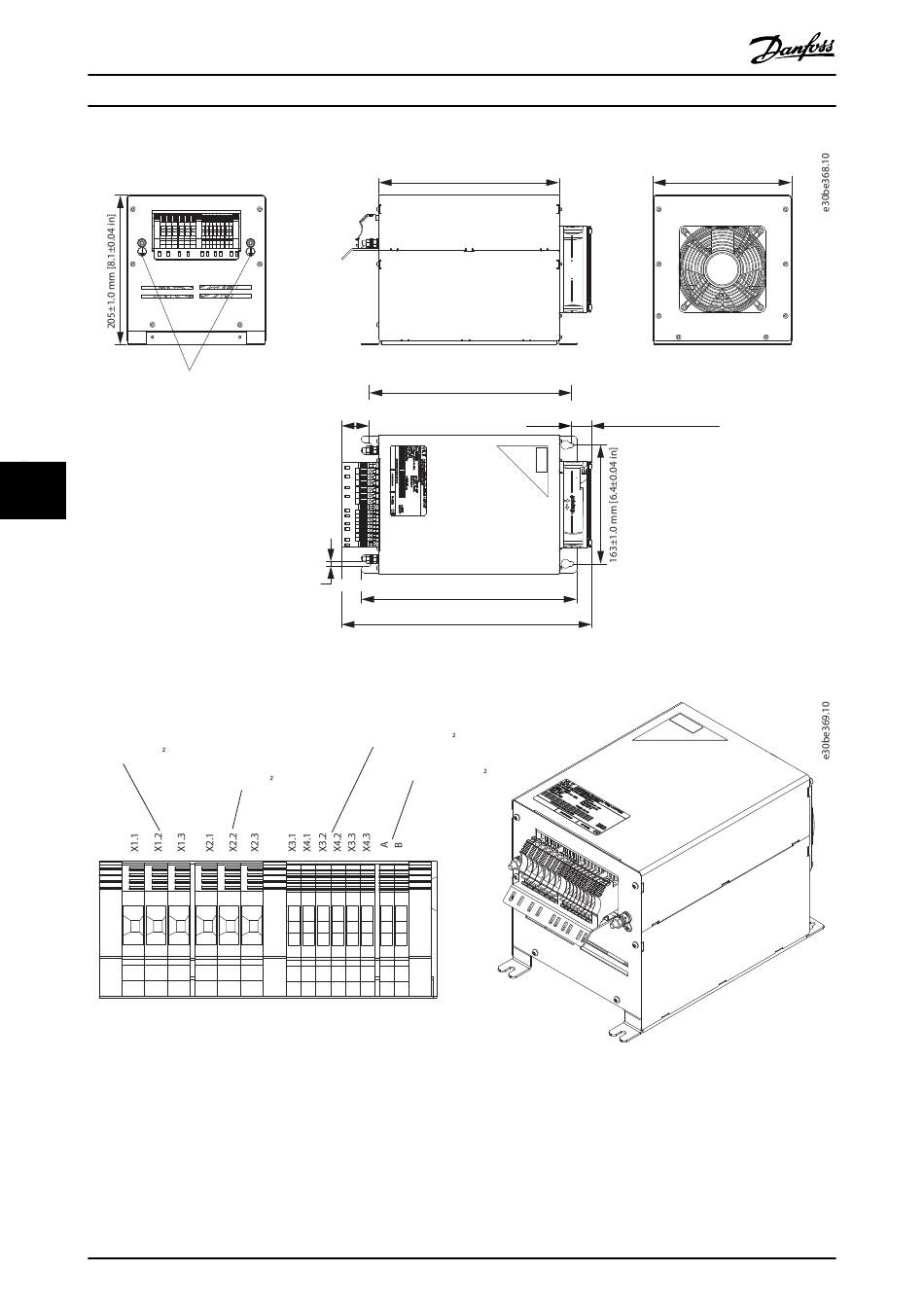

Illustration 7.4 IP20 X1-V3 External Fan
X1 Mains 6mm (1.6Nm)
Illustration 7.5 IP20 X1-V3 External Fan, Terminal Designation and 3D View
66
®
VLT
37.5±1.0 mm [1.5±0.04 in]
6.5±1.0 mm [0.3±0.04 in]
X3/X4 Capacitor disconnect 2.5mm (0.8Nm)
A/B Temperature 2.5mm (0.8Nm)
X2 Drive 6mm (1.6Nm)
Danfoss A/S © 05/2019 All rights reserved.
Advanced Harmonic Filter AHF 005/AHF 010
247±1.0 mm [9.7±0.04 in]
277.8±1.0 mm [10.9±0.04 in]
295±1.0 mm [11.6±0.04 in]
342.5±1.0 mm [13.5±0.04 in]
190.5±1.0 mm [7.5±0.04 in]
27.2±1.0 mm [1.1±0.04 in]
MG80C602
