Specifications
379±2.5 mm [14.9±0.1 in]
418±2.5 mm [16.5±0.10 in]
7 7

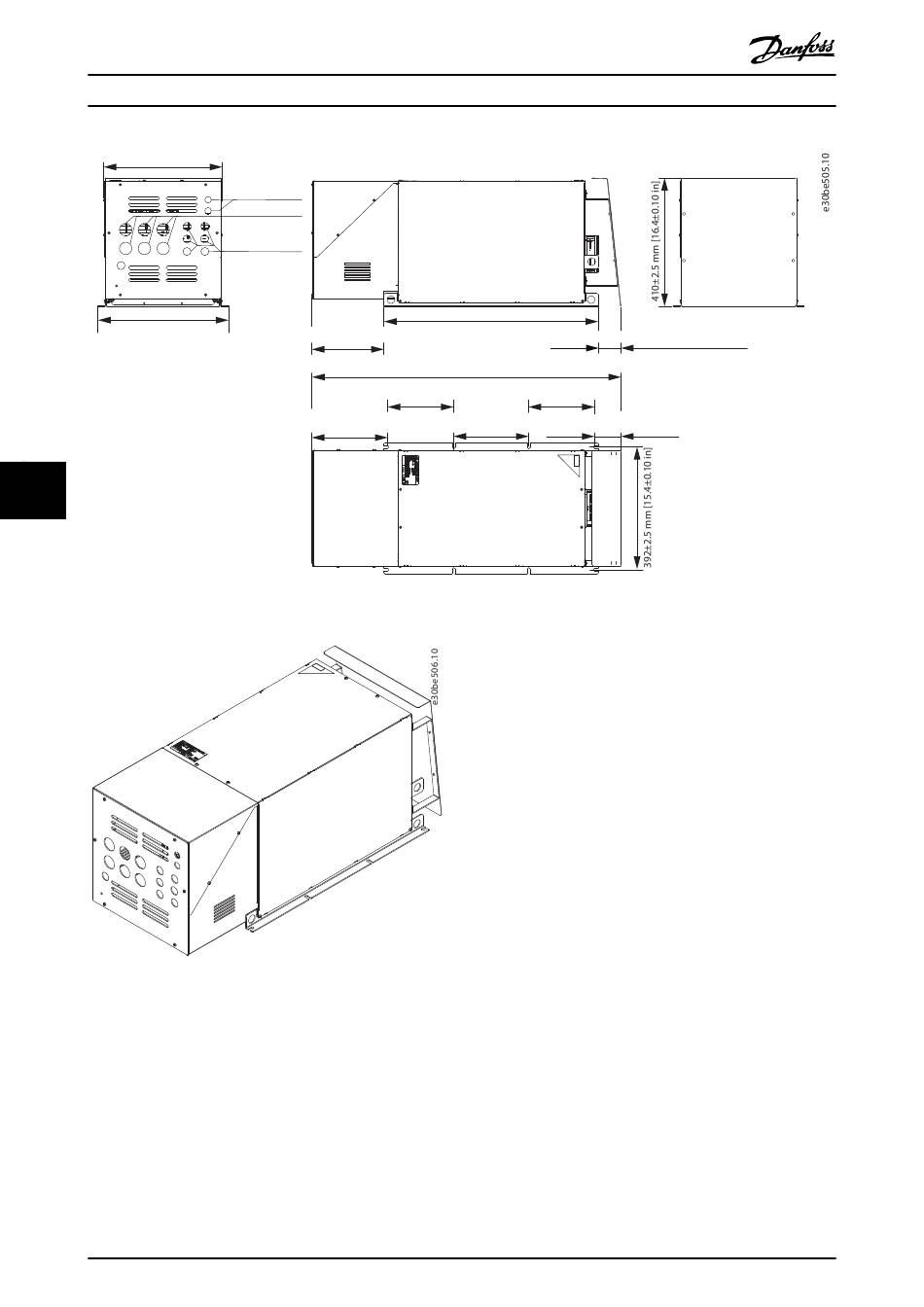

Illustration 7.44 IP21 X6-V3 Internal and External Fan
Illustration 7.45 IP21 X6-V3 Internal and External Fan, 3D View
86
®
VLT Advanced Harmonic Filter AHF 005/AHF 010
Ø20.5 mm [0.8 in]
Ø40 mm [1.6 in]
Ø25.5 mm [1 in]
230.5±2.5 mm [9.1±0.10 in]
210±2.5 mm [8.3±0.10 in]
242.5±2.5 mm [9.5±0.10 in]
Danfoss A/S © 05/2019 All rights reserved.
685±2.5 mm [27±0.10 in]
988±2.5 mm [38.9±0.10 in]
210±2.5 mm [8.3±0.10 in]
240±2.5 mm [9.4±0.10 in] 84.7±1.0 mm [3.3±0.04 in]
72.7±2.5 mm [2.9±0.10 in]
MG80C602
