• Keep NVRAMs away from any objects that can cause static electricity. Static electricity can damage
NVRAM data.
• Make sure the NVRAM is correctly installed on the controller board.

HDD Fan

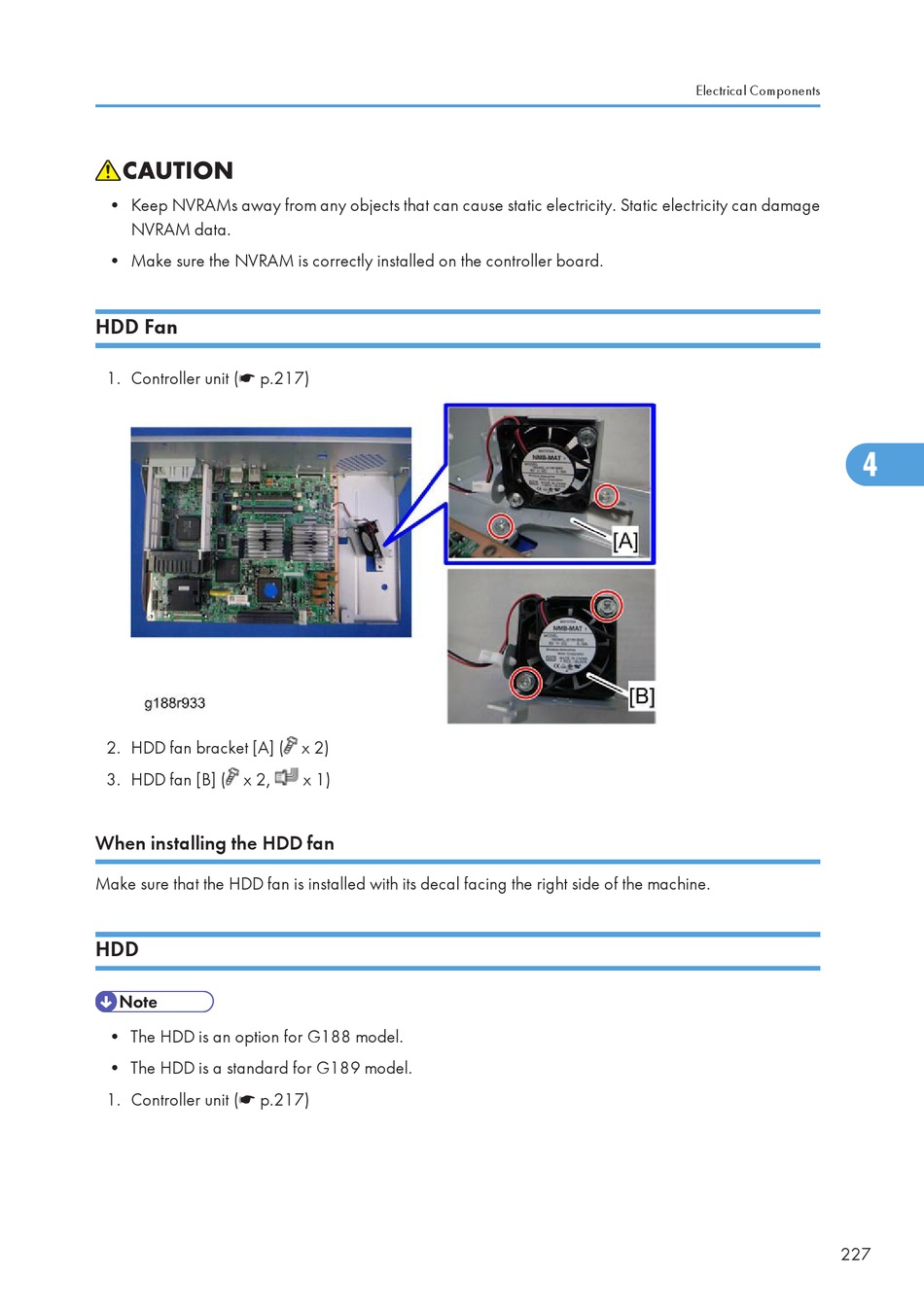

1. Controller unit (* p.217)
2. HDD fan bracket [A] ( x 2)
3. HDD fan [B] ( x 2,
When installing the HDD fan
Make sure that the HDD fan is installed with its decal facing the right side of the machine.

HDD

• The HDD is an option for G188 model.
• The HDD is a standard for G189 model.
1. Controller unit (* p.217)
x 1)
