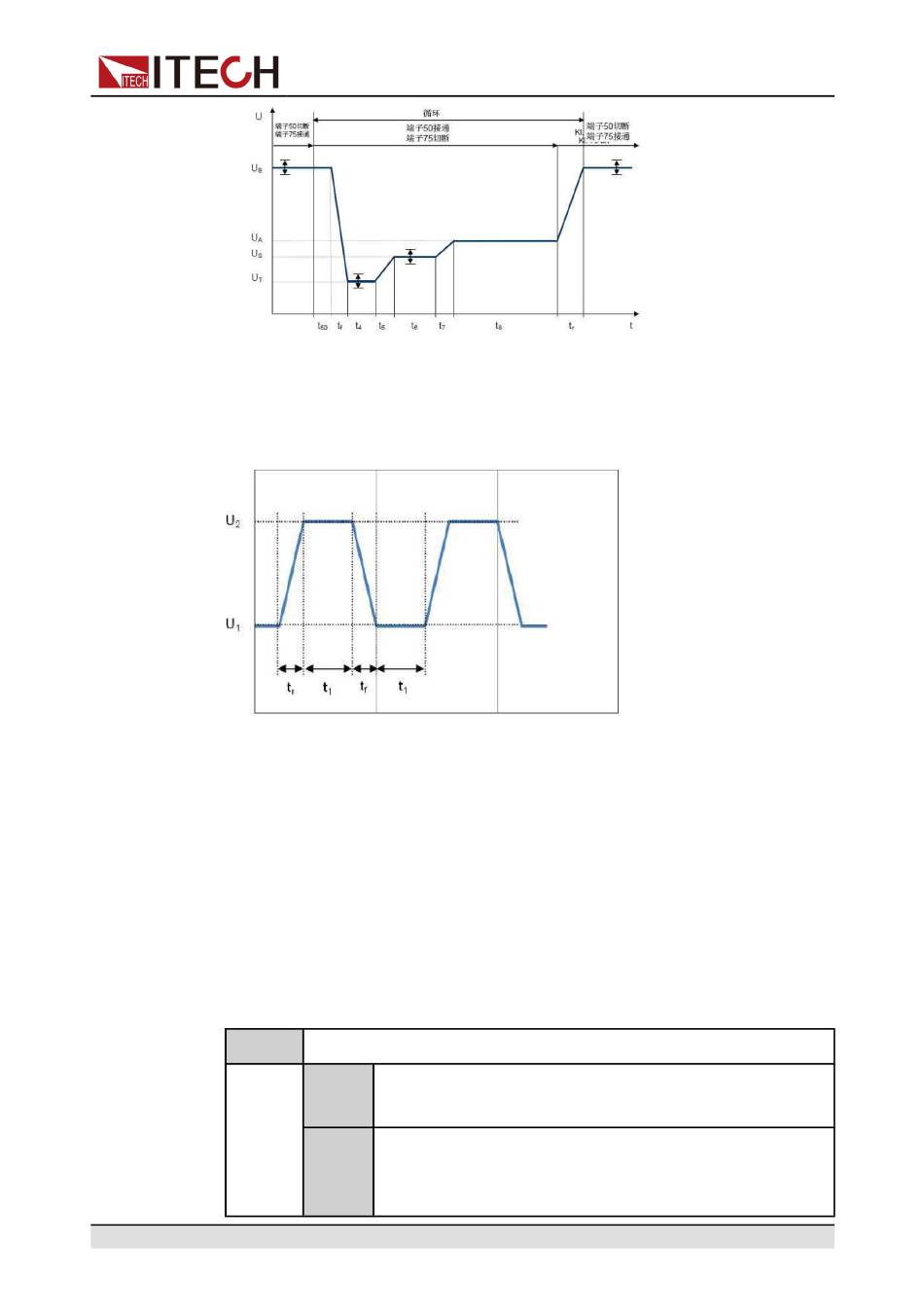

E-12 Voltage Curve with Intelligent Generator Control

4.6.4 Solar Photovoltaic Curve Simulation Function (SAS)

The behavior of the electric system when intelligent generator controls are used
is simulated.
The IT6000C series power supply provides the maximum power point tracking
(MPPT) mechanism built-in, and it is very important to test the efficiency of this
MPPT. The PV array/module/cell is a device that converts from light energy to
electric energy. It is made by a simple semiconductor PN junction that the major
output characteristic is that there's only one maximum power point (MPP) at cer-
tain sunlight intensity. The PV inverter is designed to track this point to harvest
maximum energy that is generated by the PV array. SAS function menu is as
follows:
SAS SAS function menu
Run Indicates to enter the SAS function mode and wait for the
trigger to run the currently selected PV curve file.
Vmax Used to limit the maximum value of the output voltage.
Even if the output voltage is set in the PV curve, the output
is still limited by the settings here.
