3.6.7.3 IO–3. Off-Status, Not-Invert
Parameter Description
When pin 2 is set to Invert, the output level is completely opposite.

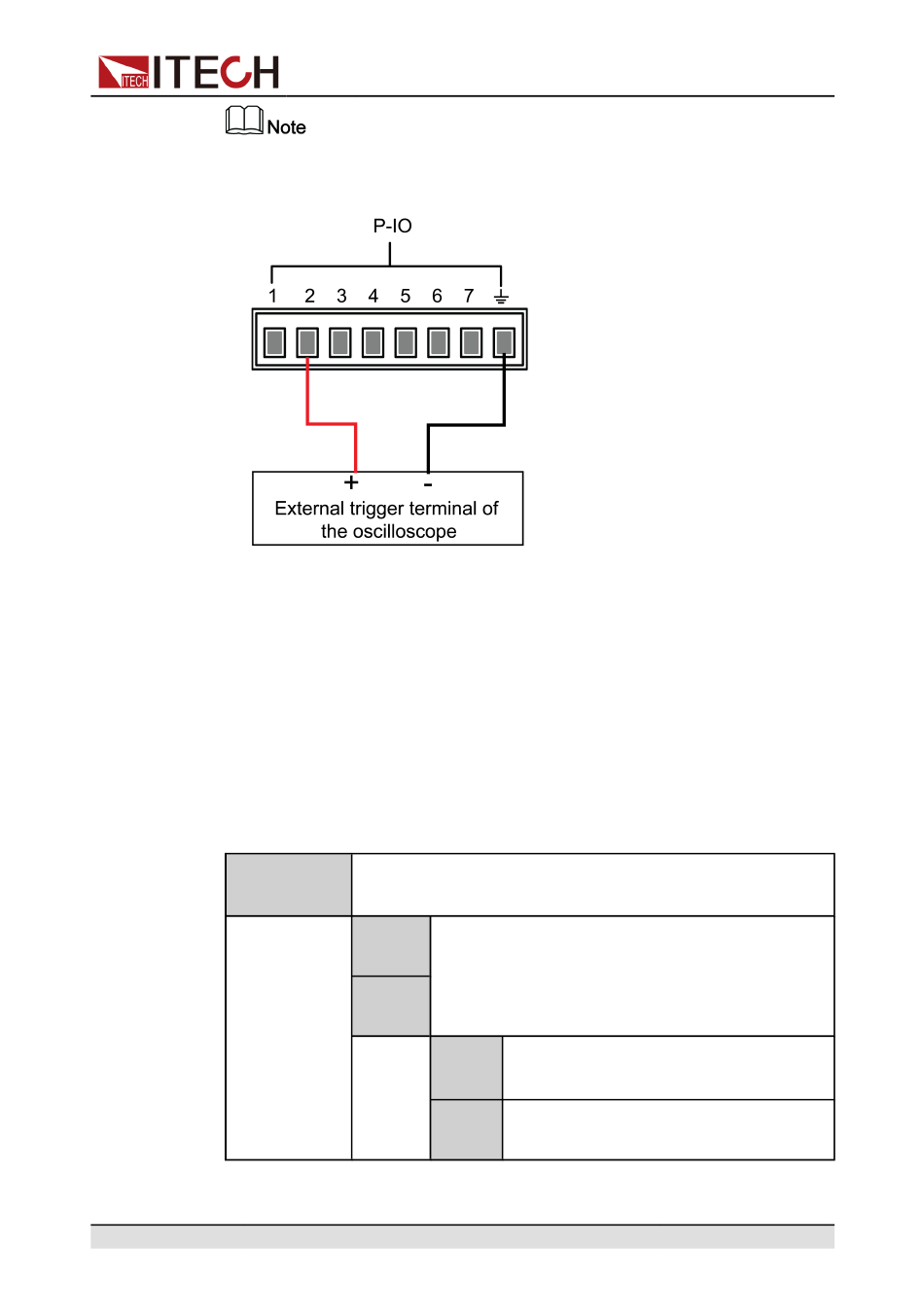

1. Refer to the figure below to connect pin 2 to the external oscilloscope.
2. Confirm that pin 2 function is set to the default option, namely
IO-2. Ps, Not-Invert.
3. Taking OVP as an example, set the protection point of OVP.
4. Build the test environment to enable the instrument to enter the OVP state.
5. Check the oscilloscope and confirm that pin 2 outputs low level.
IO–3. Off-Sta- Parameter setting for pin 3.
tus, Not-Invert
Not-
Invert
Invert
Copyright © Itech Electronic Co., Ltd.
Indicates whether to invert the input/output pulse
or level signal.
•
Invert: Yes
•
Not-Invert: No
Off- This default function indicates the exist-
Status ing [On/Off] state of the instrument.
Input Pin 3 receives the level signal from the
outside.
